Name: TP-LINK SG2452LP Omada SG2452LP V1.8 Managed network switch 32 ports 104 Gbit/s PoE
Brand: TP-LINK
SKU: 3799820

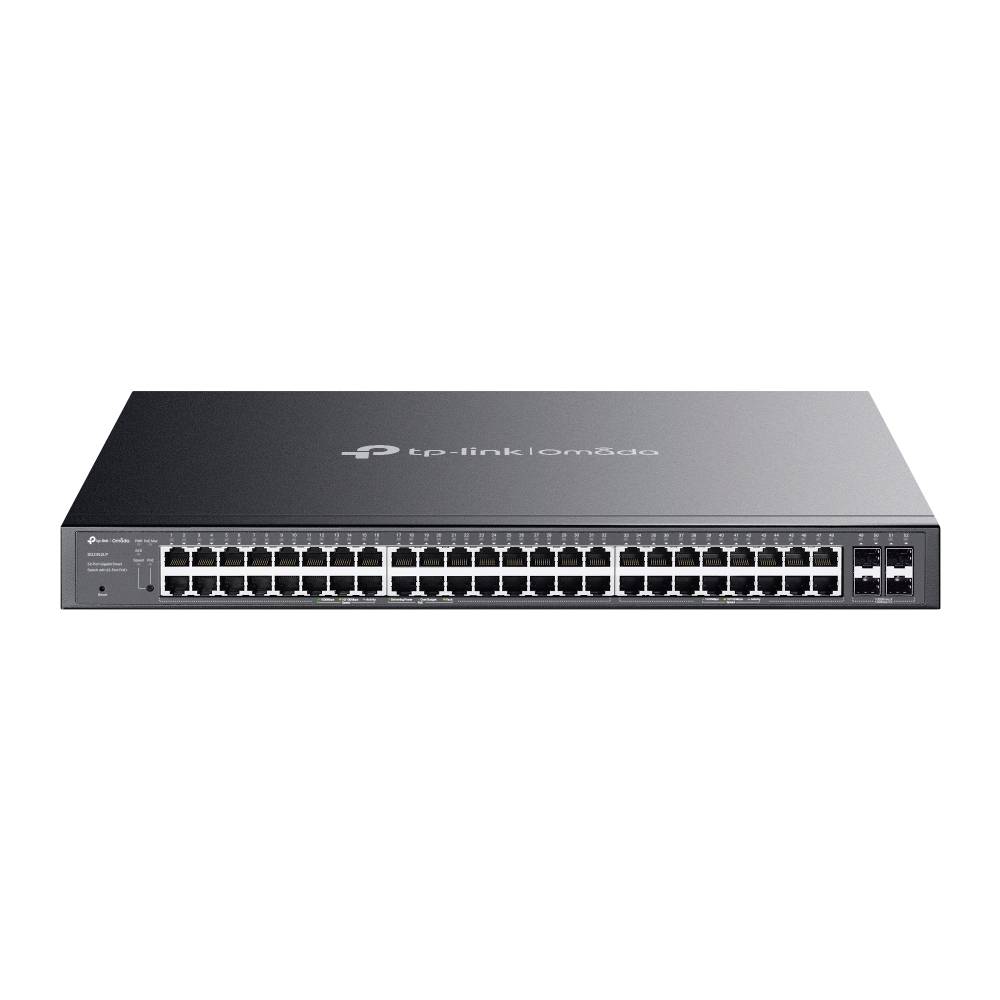

Front view of a TP-Link Omada network switch with 48 Ethernet ports and two uplink ports on a white background.

Black TP-Link networking device viewed from above, with a power input and small front-panel indicators on the right.

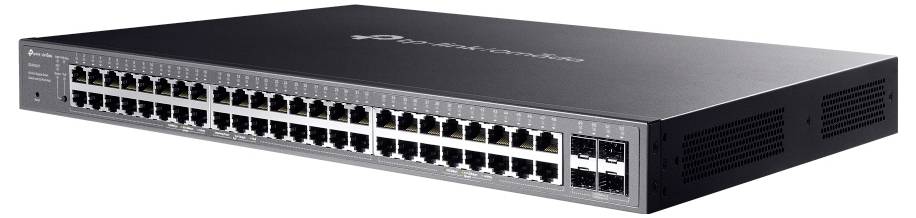

Front view of a 48-port Ethernet network switch with two uplink ports and a black metal chassis.

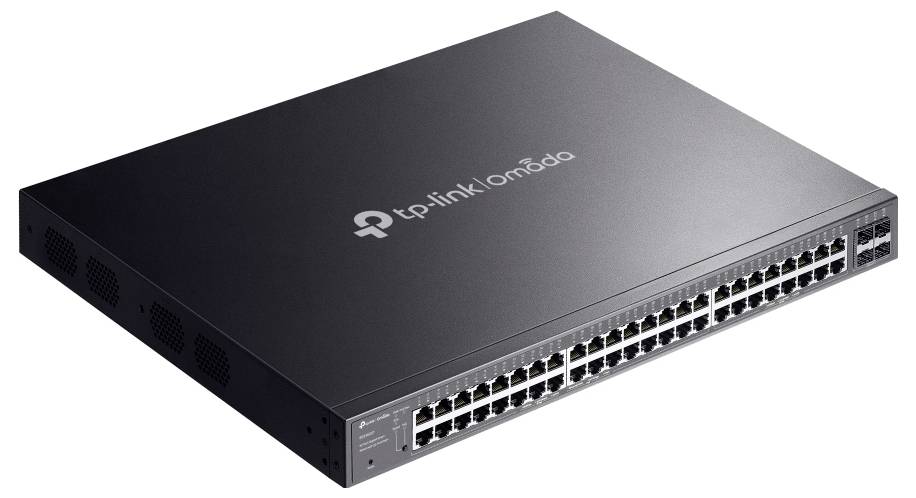

Black TP-Link Omada network switch with multiple Ethernet ports on the front panel.

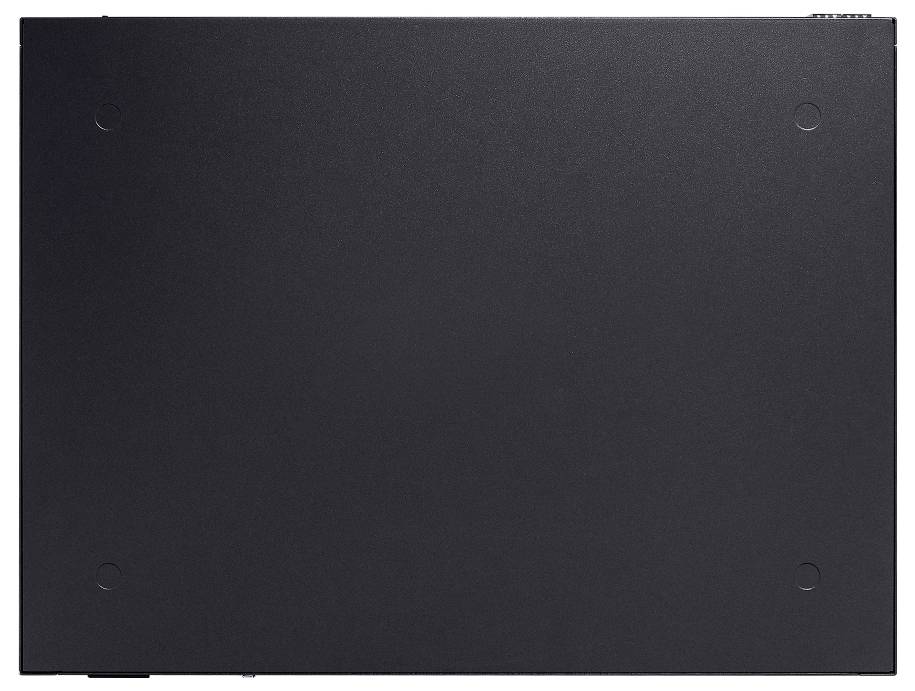

Plain black rectangular metal panel with four corner mounting holes, shown front-on against a white background.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG2452LP network switch managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

Managed L2/L2+ Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 48
MAC address table: 16000 entries Routing/switching capacity: 104 Gb/s.
1U Rack-mounting
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Form factor: 1U
Energy source: AC

Product type: Managed network switch

Transfer rate: 104 Gbit/s

Working principle: Managed switch

IEEE 802.3af PoE: 32

SFP ports: 4 x

10/100/1000 Mbps ports: 32 x

Router features: PoE

MAC addresses: 16000

Width: 440 mm

Height: 44 mm

Depth: 330 mm

Type: Omada SG2452LP V1.8

Factory colour: Black

Port: 32 ports

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 32

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 230 W

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 104 Gbit/s

Heat dissipation: 1035.4 BTU/h

Loop protection: yes

ARP inspection: yes

Jumbo frames: 9000

Active link detection: yes

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Static route: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

System event log: yes

IP routing: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 77.37 Mpps

Power consumption (max): 304.5 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799820 TP-LINK SG2452LP Omada SG2452LP V1.8 Managed network switch 32 ports 104 Gbit/s PoE

Description

The TP-LINK Omada SG2452LP V1.8 was developed to meet the requirements of modern networks and offers a mixture of performance, security and manageability. With 52 ports, 32 of which support Power over Ethernet plus (PoE+) for supplying power directly to devices via the network cable, and 4 Gigabit Ethernet SFP slots for high-speed connections, this switch is Ideal for companies looking to extend their network infrastructure. Security has priority: Functions such as 802.1x authentication and ACL support (access control list) ensure the network integrity. Management is simplified through support of SNMP, RMON, and HTTP, and enables comprehensive monitoring and control. Robust performance with 104 Gbps switching capacity and 77.37 Mpps packet forwarding rate enables efficient handling of high traffic volumes. The fanless design and rugged metal housing also make it a reliable choice for any company environment.

This text is machine translated.
