Name: TP-LINK SG3210XHP-M2 JetStream TL-SG3210XHP-M2 V2 Managed network switch 8 ports 800 MBit/s PoE
Brand: TP-LINK
SKU: 3799987

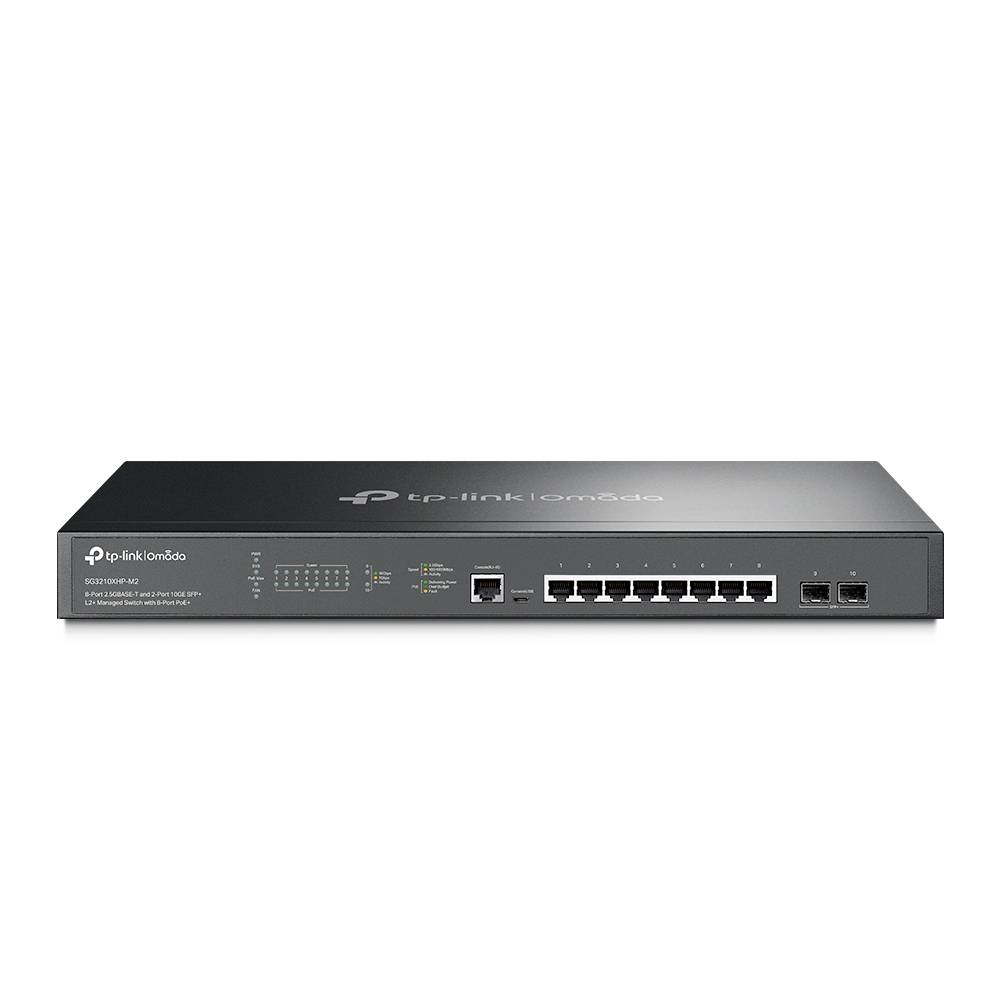

Front view of a TP-Link Omada Ethernet switch with multiple network ports and status LEDs on a white background.

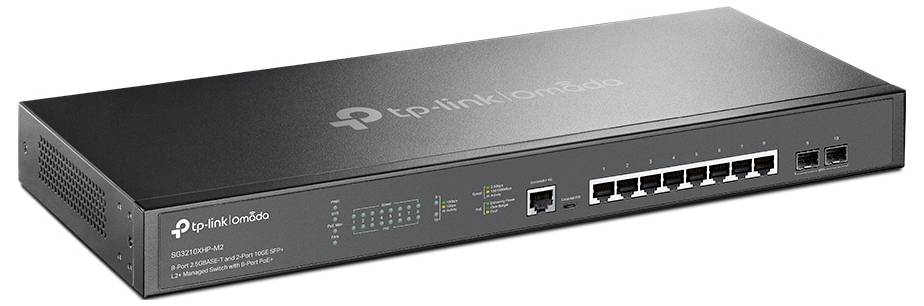

TP-Link Omada Ethernet switch, shown in angled front view with multiple network ports and status LEDs on a gray metal chassis.

Front view of a black TP-Link network device with status light and power input on the right, shown on a white background.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG3210XHP-M2 network switch managed L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U black

Managed L2+ Web-based management SNMPv1/v2c/v3, SNTP
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 8 console port: RJ-45/micro-USB
10G support
MAC address table: 16000 entries Routing/switching capacity: 80 Gb/s.
Access control list
1U Rack-mounting
AC power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U
Number of fans: 2 fans
Energy source: AC

Product type: Managed network switch

Transfer rate: 800 MBit/s

Working principle: Managed switch

Ethernet ports: 8

Router features: PoE

Weight: 3.08

Width: 440 mm

Height: 44 mm

Depth: 180 mm

Type: JetStream TL-SG3210XHP-M2 V2

Factory colour: Black

Port: 8 ports

Power supply (details): 100 - 240 V

Safety: HTTPS
SSH
SSH-2
SSL/TLS

UKCA: yes

Operating temperature (T-T): 0 - 45 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 240 W

Packet buffer memory: 12 MB

Number of static routes: 48

Number of IP interfaces: 16

Storage relative humidity (H-H): 5 - 90 %

Password protection: yes

Switching capacity: 80 Gbit/s

Heat dissipation: 975.54 BTU/h

Traffic classification: yes

Loop protection: yes

BPDU filtering/protection: yes

IP-MAC-Port binding: yes

ARP inspection: yes

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 30 W

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

GARP VLAN Registration Protocol (GVRP): yes

Static route: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

IP routing: yes

Quick start guide: yes

Cloud-managed: yes

2.5G Ethernet (copper) ports quantity: 8

Rack mounting: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 59.52 Mpps

Power consumption (max): 285.9 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799987 TP-LINK SG3210XHP-M2 JetStream TL-SG3210XHP-M2 V2 Managed network switch 8 ports 800 MBit/s PoE
