Name: TP-LINK SG5428XMPP Omada SG5428XMPP V1 Managed network switch 24 ports 128 Gbit/s PoE
Brand: TP-LINK
SKU: 3799852

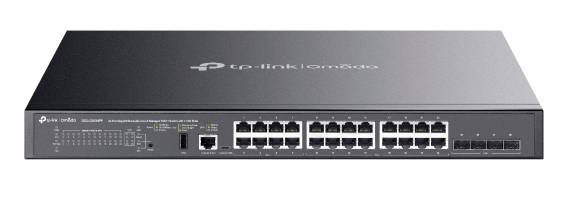

Front view of a TP-Link Omada network switch with multiple Ethernet ports and status LEDs on a gray rack-mountable unit.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK SG5428XMPP network switch managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) black

Managed L3 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
Rack mounting Stackable
AC/PoE power supply included Power over Ethernet (PoE)

Technical specifications

Number of fans: 3 fans
Memory type: DRAM
Power source AC / PoE

Product type: Managed network switch

Transfer rate: 128 Gbit/s

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP+ ports: 4 x

10/100/1000 Mbps ports: 24 x

Router features: PoE

MAC addresses: 16000

Width: 440 mm

Height: 44 mm

Depth: 330 mm

Type: Omada SG5428XMPP V1

Factory colour: Black

Port: 24 ports

No. of USB A 2.0 ports: 1 x

Power supply (details): 100 - 240 V

CPU speed: 1200 MHz

: 2000 MB

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 45 °C

Power over Ethernet plus (PoE+) ports quantity: 16

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 500 W

Packet buffer memory: 12 MB

Physical stacking (units): 4

Storage relative humidity (H-H): 5 - 90 %

Password protection: yes

Switching capacity: 128 Gbit/s

Rack mount kit: yes

IP-MAC-Port binding: yes

ARP inspection: yes

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 90 W

SFP+ module slots quantity: 4

Bandwidth: 64 Gbit/s

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

Telnet: yes

USB Type-C ports quantity: 1

Web-based management: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 24

Quick start guide: yes

Cloud-managed: yes

Firmware upgradeable: yes

Power over Ethernet 4PPoE (PoE++) ports quantity: 8

Rack mounting: yes

Mean time between failures (MTBF): 292.83 h

Flash memory: 512 MB

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Surge protection voltage: 6 kV

Forwarding rate: 95.23 Mpps

Built-in processor: yes

Surge protection: yes

Power consumption (max): 587.7 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799852 TP-LINK SG5428XMPP Omada SG5428XMPP V1 Managed network switch 24 ports 128 Gbit/s PoE

Description

The TP-LINK Omada SG5428XMPP V1 has been developed to provide performance and reliability for complex network environments. With a switching capacity of 80 Gbps and the support of 24 PoE++ ports it ensures an efficient power supply and network traffic management and is therefore suitable for growing companies. The model also supports various routing protocols, including RIP and OSPF, providing flexible networking capabilities.
With advanced security measures such as Dynamic ARP Inspection and robust encryption algorithms, this switch enables secure data transfer across networks. Its extensive management protocols such as SNMP and CLI enable remote access and remote monitoring to optimize performance and troubleshooting. The MTBF of 292,830 hours shows that this switch is designed for long-term operation in demanding conditions and combines reliability and efficiency in a compact design.
