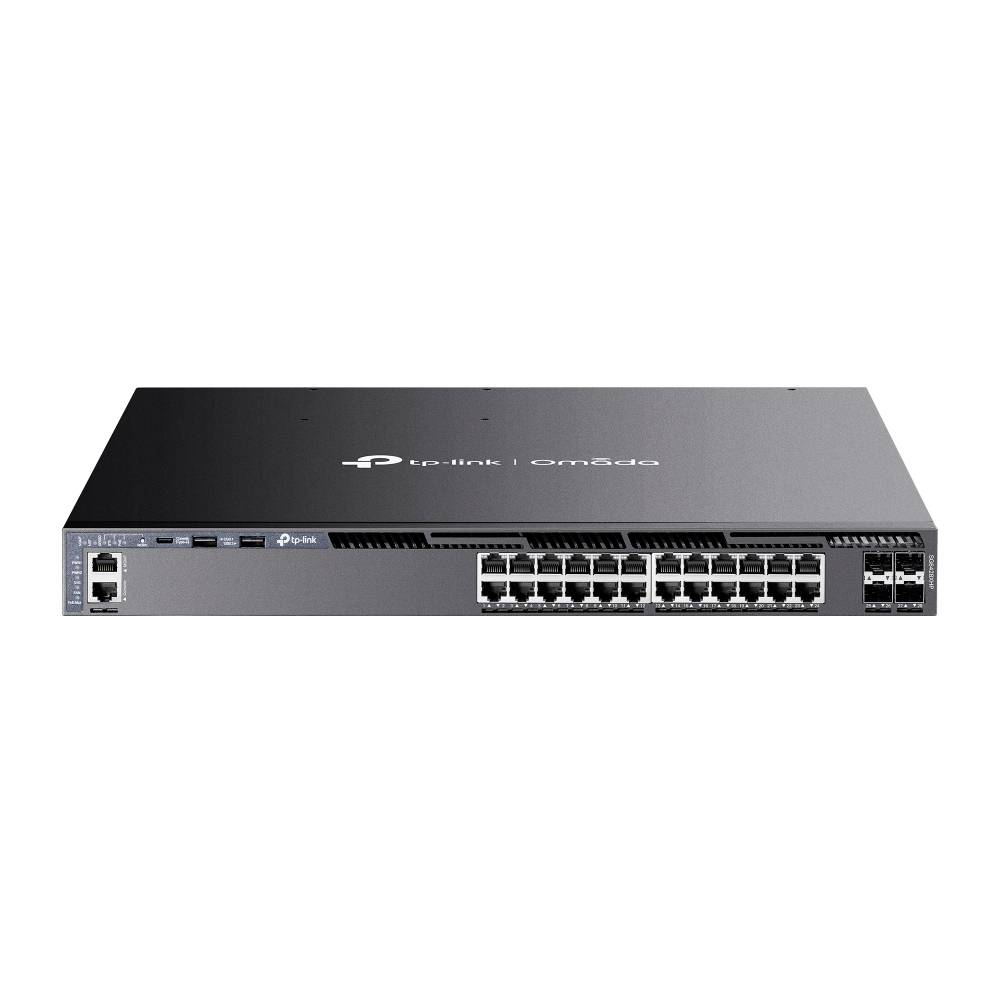

Front view of a TP-Link Omada network switch with multiple Ethernet ports and two uplink ports on a gray rack-mount device.<br>

Front view of a TP-Link Omada network switch with multiple Ethernet ports and two uplink ports on a gray rack-mount device.<br>

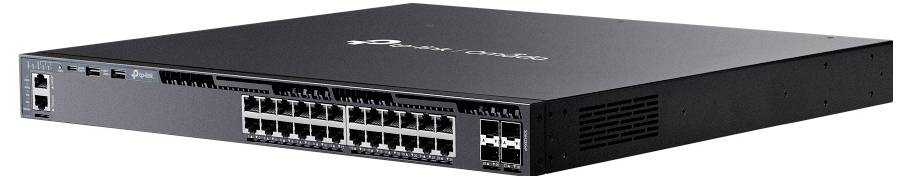

Black network switch with 24 Ethernet ports and 4 uplink slots on the front, shown in a product-style side view on a white background

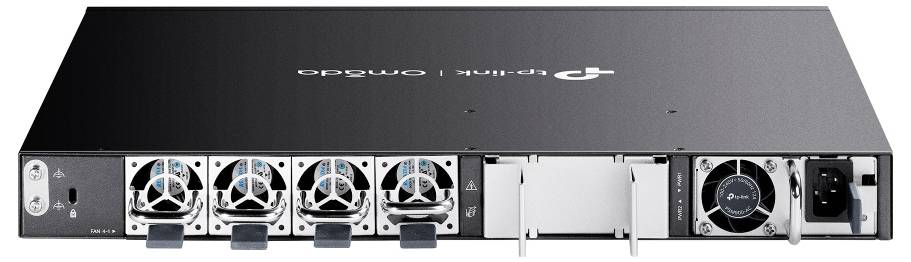

Rear view of a rack-mounted server with four fan modules, a central drive bay, a power supply module, and power inputs.

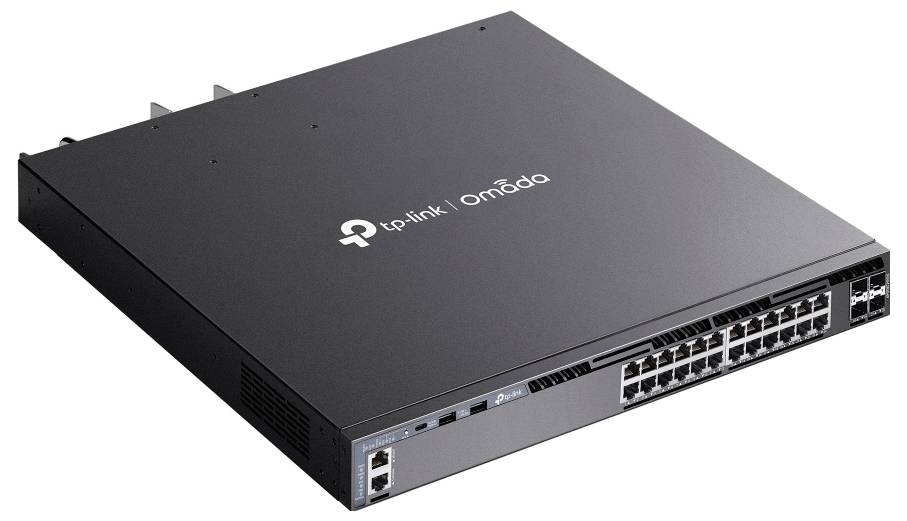

TP-Link Omada network switch with multiple Ethernet ports on the front panel<br>

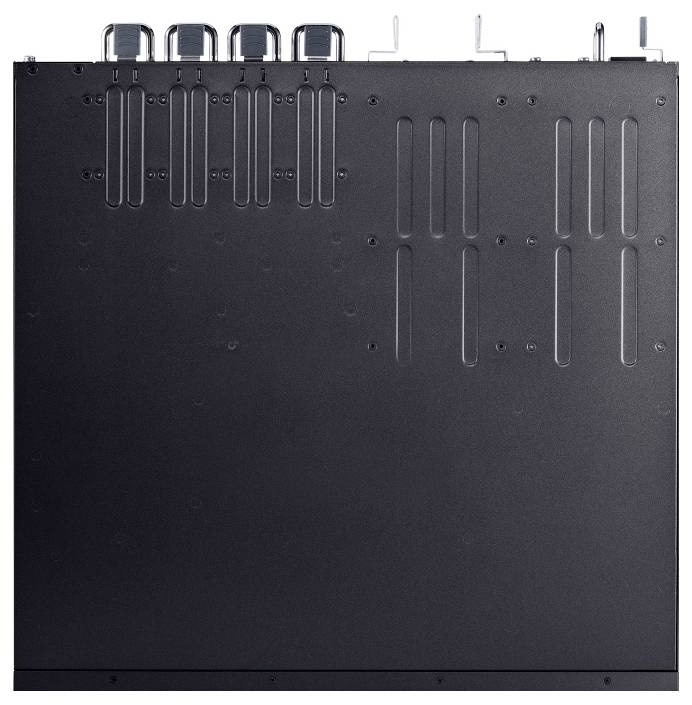

Back view of a black electronic device or panel with vent slots and several cable connectors along the top edge.

1/5

TP-LINK

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG6428XHP network switch managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

Managed L3 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45/USB Type-C.
MAC address table: 32000 entries Routing/switching capacity: 128 Gb/s.
Access control list
1U Rack-mounting Stackable
AC power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U
Number of fans: 4 fans
Energy source: AC

Product type: Managed network switch

Transfer rate: 128 Gbit/s

Working principle: Managed switch

Ethernet ports: 24

Router features: PoE

Width: 440 mm

Height: 44 mm

Depth: 420 mm

Type: Omada SG6428XHP V1

Factory colour: Black

Port: 24 ports

No. of USB A 2.0 ports: 2 x

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 720 W

Packet buffer memory: 3 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 128 Gbit/s

Heat dissipation: 3125.61 BTU/h

Loop protection: yes

ARP inspection: yes

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 30 W

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Configuring Location Settings (CLI): yes

IGMP entries: 2048

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

IP routing: yes

Manual: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 32000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 95.2 Mpps

Power consumption (max): 916.4 W

Power supply included: yes
