Name: TP-LINK SX3206HPP JetStream TL-SX3206HPP V1 Managed network switch 4 ports 1200 MBit/s
Brand: TP-LINK
SKU: 3800003

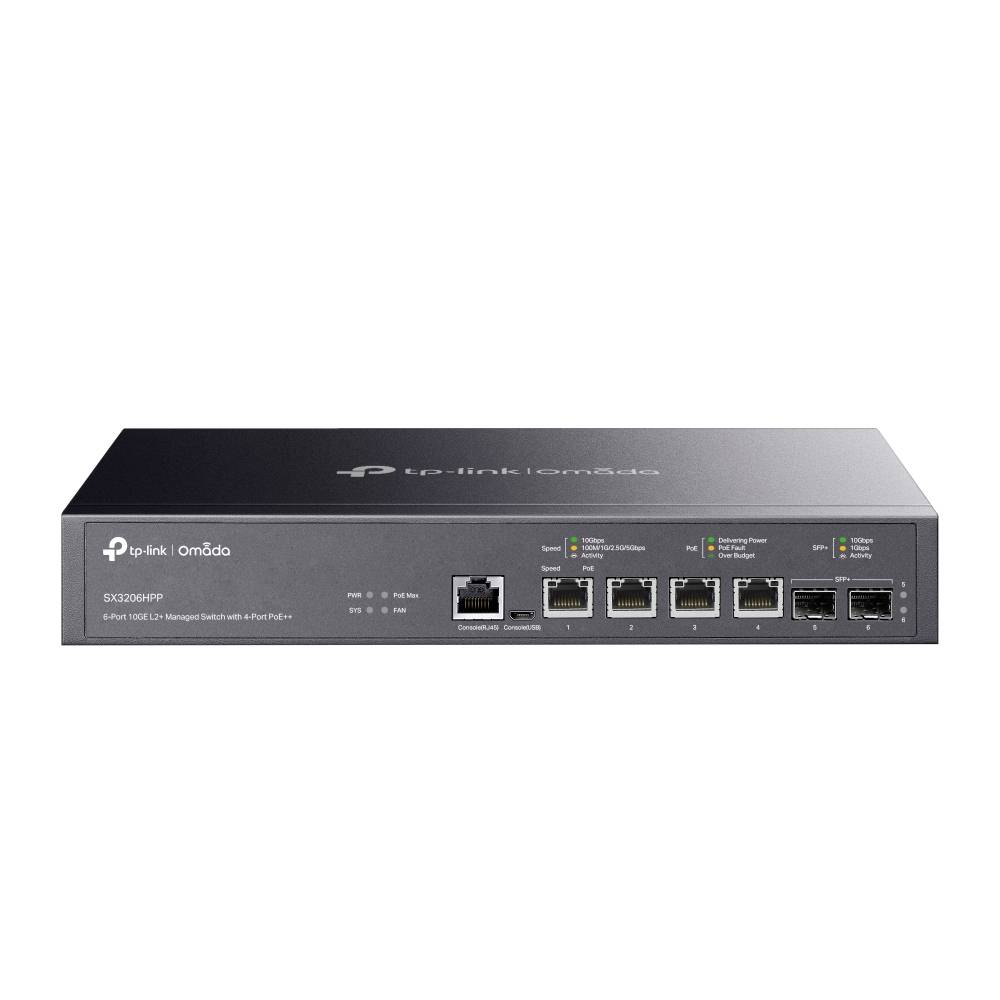

Front view of a TP-Link Omada network switch with multiple Ethernet ports and status lights on a plain white background.

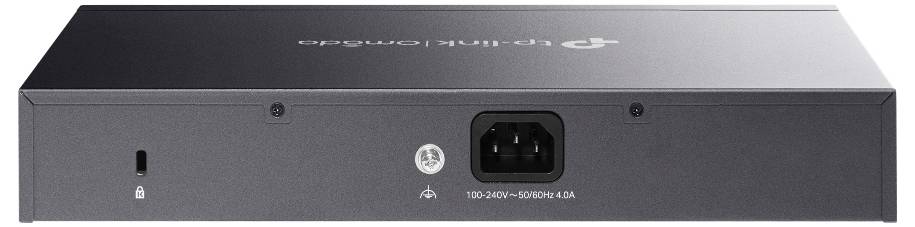

Rear view of a TP-Link device showing a USB port, grounding icon, and AC power inlet labeled 100-240V~50/60Hz 4.0A.

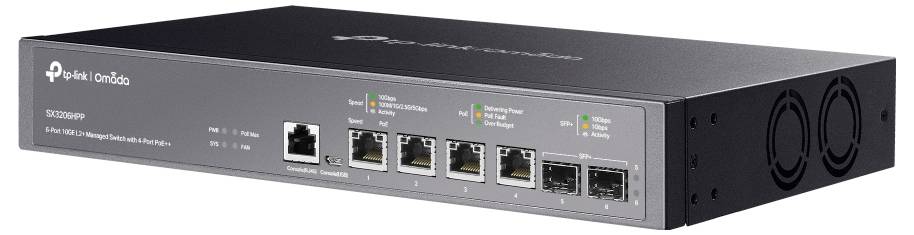

TP-Link Omada network switch front view with 8 Ethernet ports and status LEDs on a dark rack-mountable device.

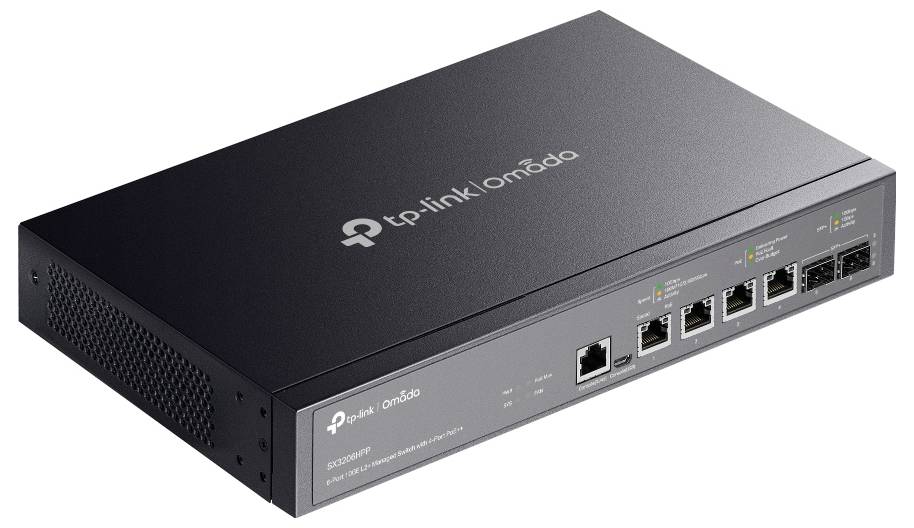

Black TP-Link Omada network switch with multiple Ethernet ports on the front panel, shown in angled product view.

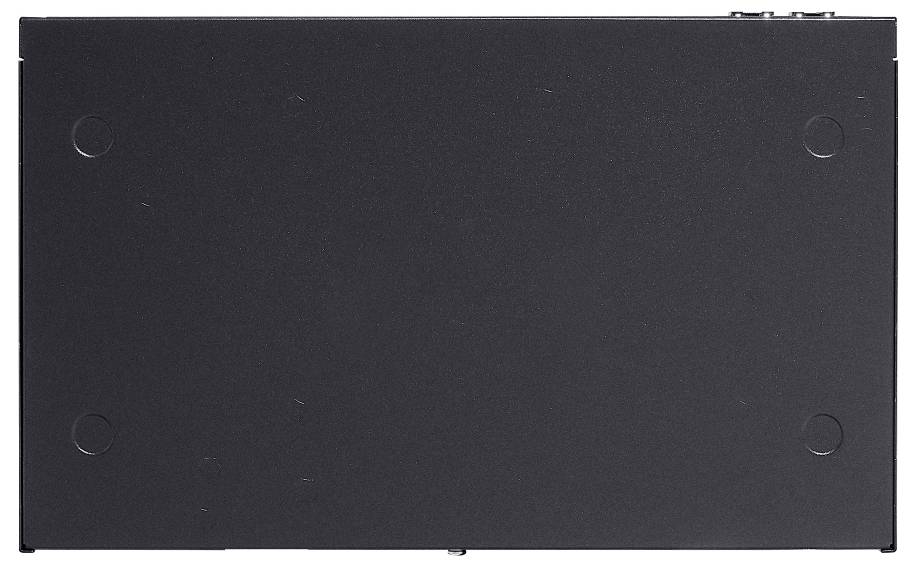

Black rectangular electronic device with a plain top panel and four circular foot pads at the corners, viewed from above.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SX3206HPP network switch managed L2+ 10G Ethernet (100/1000/10000) Power over Ethernet (PoE), black

Managed L2+ Web-based management SNMP v1/v2c/v3
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 4 console port: RJ-45/micro USB
10G support
MAC address table: 32000 entries Routing/switching capacity: 120 Gb/s.
Access control list
Rack installation
AC power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Number of fans: 2 fans
Energy source: AC

Product type: Managed network switch

Transfer rate: 1200 MBit/s

Working principle: Managed switch

Ethernet ports: 4

Width: 294 mm

Height: 44 mm

Depth: 180 mm

Type: JetStream TL-SX3206HPP V1

Factory colour: Black

Port: 4 ports

Power supply (details): 100 - 240 V

Safety: HTTPS
SSL/TLS

UKCA: not relevant

Operating temperature (T-T): 0 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 4

Total Power over Ethernet (PoE) budget: 200 W

Packet buffer memory: 16 MB

Number of static routes: 48

Storage relative humidity (H-H): 5 - 95 %

Switching capacity: 120 Gbit/s

Heat dissipation: 835.67 BTU/h

Rack mount kit: yes

Loop protection: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 60 W

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

IP routing: yes

Quick start guide: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 32000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Routing entries: 512

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 89.28 Mpps

Power consumption (max): 244.9 W

Power supply included: yes
