Name: TP-LINK TL-SF1009P TL-SF1009P Network switch 8 + 1 ports 10 / 100 MBit/s PoE
Brand: TP-LINK
SKU: 2368562

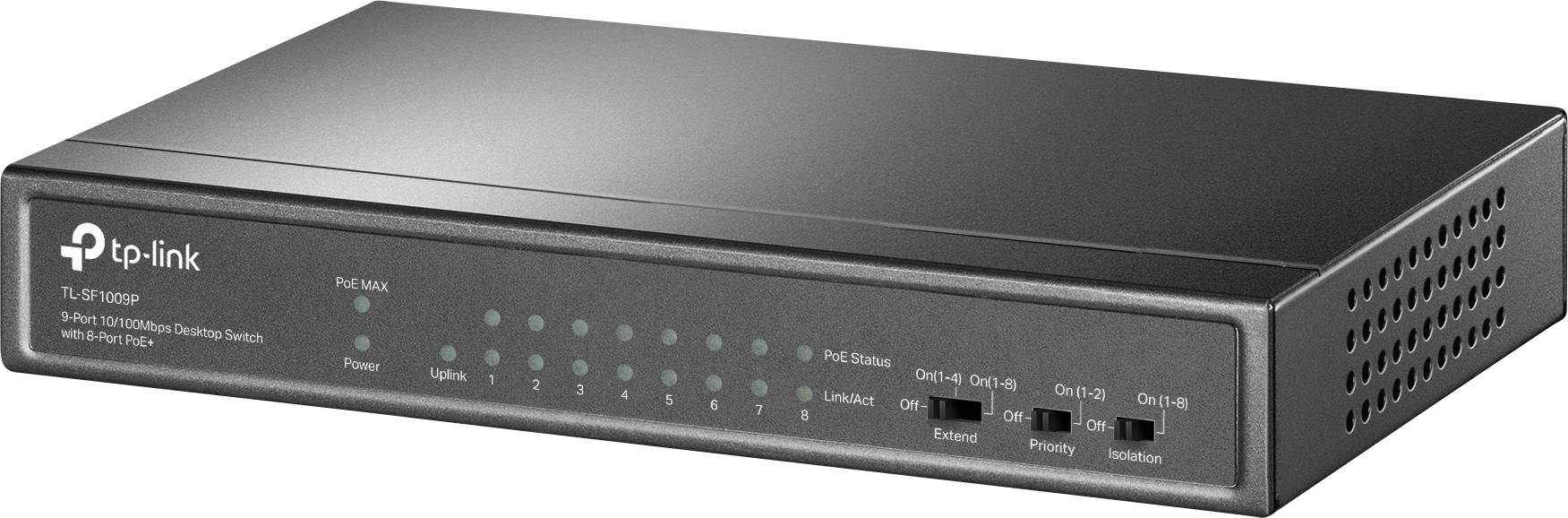

A black network switch from TP-Link with multiple Ethernet ports on the front and LED indicators for connection status.

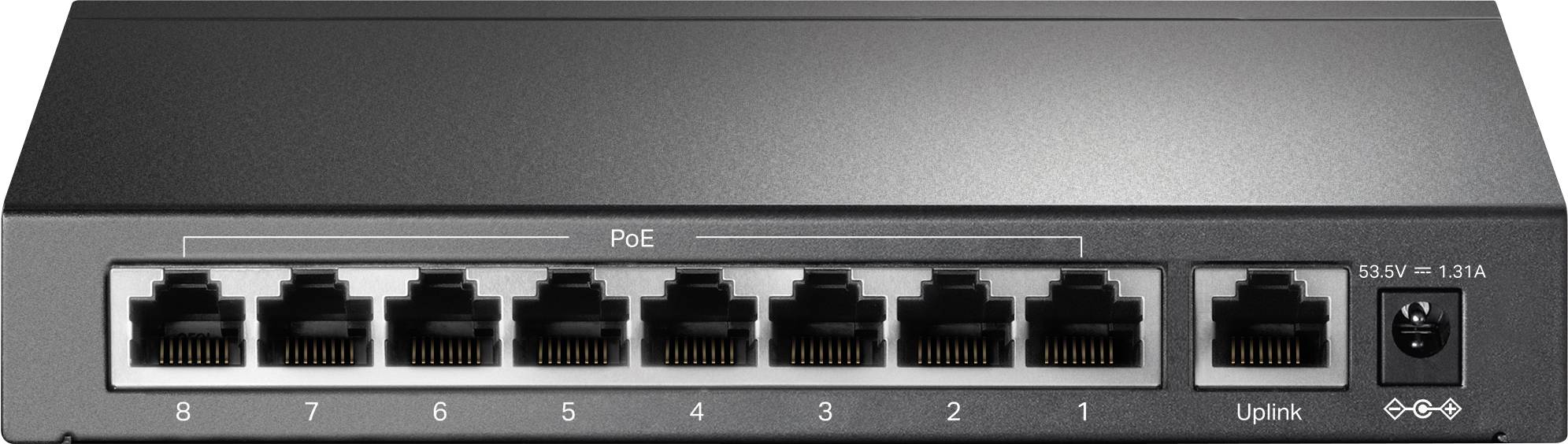

A black network switch with eight Ethernet ports, numbered from 1 to 8. One port is marked as 'Uplink'.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Professional unmanaged 9-port switch with 8 PoE+ ports

9× 10/100 Mbps RJ45 ports8× PoE+ ports for simultaneous data and power transmissionWorks with IEEE 802.3af/at compliant PoE devicesSupports PoE power of 30W per PoE portSupports a total PoE power of 65W for all 8 PoE ports*Up to 250m data and power transmission range with expansion mode**Priority mode provides a prioritized transfer for ports 1–2 to ensure the quality of critical applicationsIsolation mode provides data separation of each port for increased security and performancePlug & Play, without any further necessary configuration

Technical specifications

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 9

10/100 Mbps ports: 9 x

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 2000

Weight: 0.98

Width: 171 mm

Height: 27 mm

Depth: 98 mm

Type: TL-SF1009P

Interfaces: RJ45

Factory colour: Black

Port: 8 + 1 ports

Length: 150 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2368562 TP-LINK TL-SF1009P TL-SF1009P Network switch 8 + 1 ports 10 / 100 MBit/s PoE

Description

Professional unmanaged 9-port switch with 8 PoE+ ports and 65 W PoE power budget) for a variety of applications802.3af/at PoE+ compliance supports up to 30W on each PoE port. The total PoE power budget* of 65W for the 8× PoE+ ports opens up a wide range of applications, such as office monitoring, dormitories, and small businesses. The switch is fully compatible with IP cameras, access points, IP phones, computers, printers and more.

This text is machine translated.
