Name: TP-LINK TL-SG105MPE TL-SG105MPE V1.60 Network switch 10 GBit/s
Brand: TP-LINK
SKU: 3799964

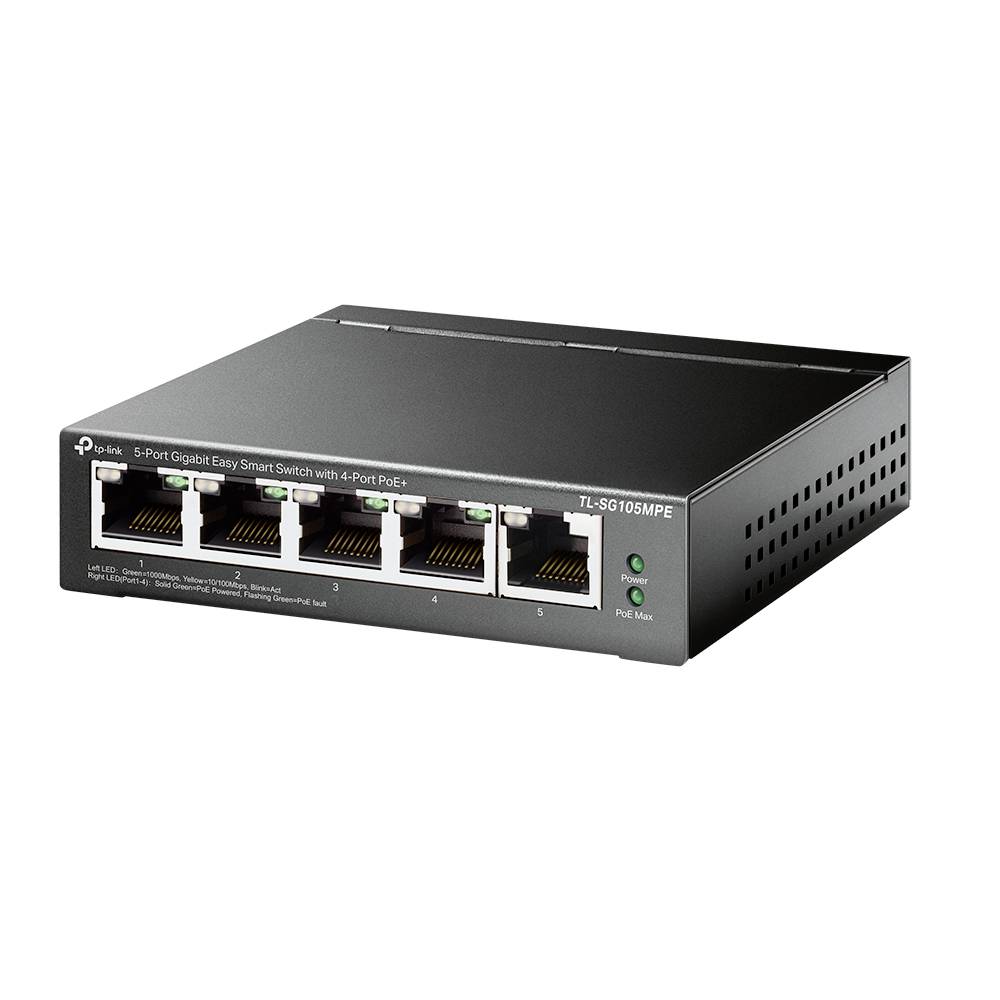

Black TP-Link 5-port Gigabit Easy Smart switch with 4 PoE+ ports, shown on a white background.<br>

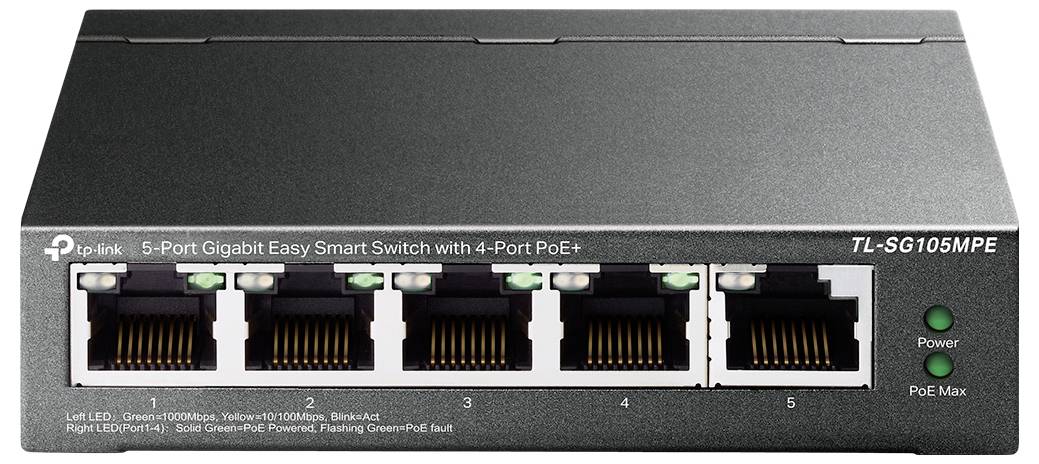

Front view of a TP-Link 5-port Gigabit Easy Smart Switch with 4-port PoE+, showing five Ethernet ports and power/PoE status lights.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK TL-SG105MPE network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

L2 Web-based management
Number of basic switching RJ-45 Ethernet ports: 5
MAC address table: 2000 entries Routing/switching capacity: 10 Gb/s.
DC/PoE power supply included Power over Ethernet (PoE)

Technical specifications

Power source DC / PoE

Product type: Network switch

Transfer rate: 10 GBit/s

Ethernet ports: 5

Width: 99.8 mm

Height: 25 mm

Depth: 98 mm

Type: TL-SG105MPE V1.60

Factory colour: Black

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 5

Total Power over Ethernet (PoE) budget: 120 W

Storage relative humidity (H-H): 5 - 95 %

Switching capacity: 10 Gbit/s

Loop protection: yes

Jumbo frames: 16

Power over Ethernet (PoE): yes

Port mirroring: yes

Jumbo frames support: yes

Broadcast storm control: yes

Static route: yes

Web-based management: yes

Rate limiting: yes

Rack mounting: no

MAC address table: 2000 Eintragungen

IGMP snooping: yes

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -40 - 70 °C

Package weight: 2.76 kg

Forwarding rate: 7.44 Mpps

Power consumption (max): 137.01 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799964 TP-LINK TL-SG105MPE TL-SG105MPE V1.60 Network switch 10 GBit/s

Description

The TP-LINK TL-SG105MPE V1.60 switch was developed for the requirements of small to medium-sized networks and offers a mix of performance, reliability and advanced network functions. With a forwarding power of 7.44 Mpps it provides for an efficient data throughput, minimizes delays and maximizes the productivity. This model supports up to 32 VLANs to provide effective network segmentation and enhanced security. Its robust design ensures that it can be operated under a variety of environmental conditions from 0 °C to 40 °C and a humidity of 10 - 90 % (non-condensing), WAS makes it a versatile choice for different environments. Advanced functions such as Quality of Service (QoS), IGMP Snooping and Storm Control as well as cable diagnostics and loop prevention offer comprehensive network management functions. In addition, the fan-less design not only contributes to a silent operation but also reduces the maintenance requirements, WAS makes it Ideal for noise-sensitive environments. The TL-SG105MPE V1.60 is a reliable and efficient solution for offices, libraries or other areas, where network performance and noise are important.

This text is machine translated.
