Name: TP-LINK TL-SG105S V2 Network switch 5 ports
Brand: TP-LINK
SKU: 3799931

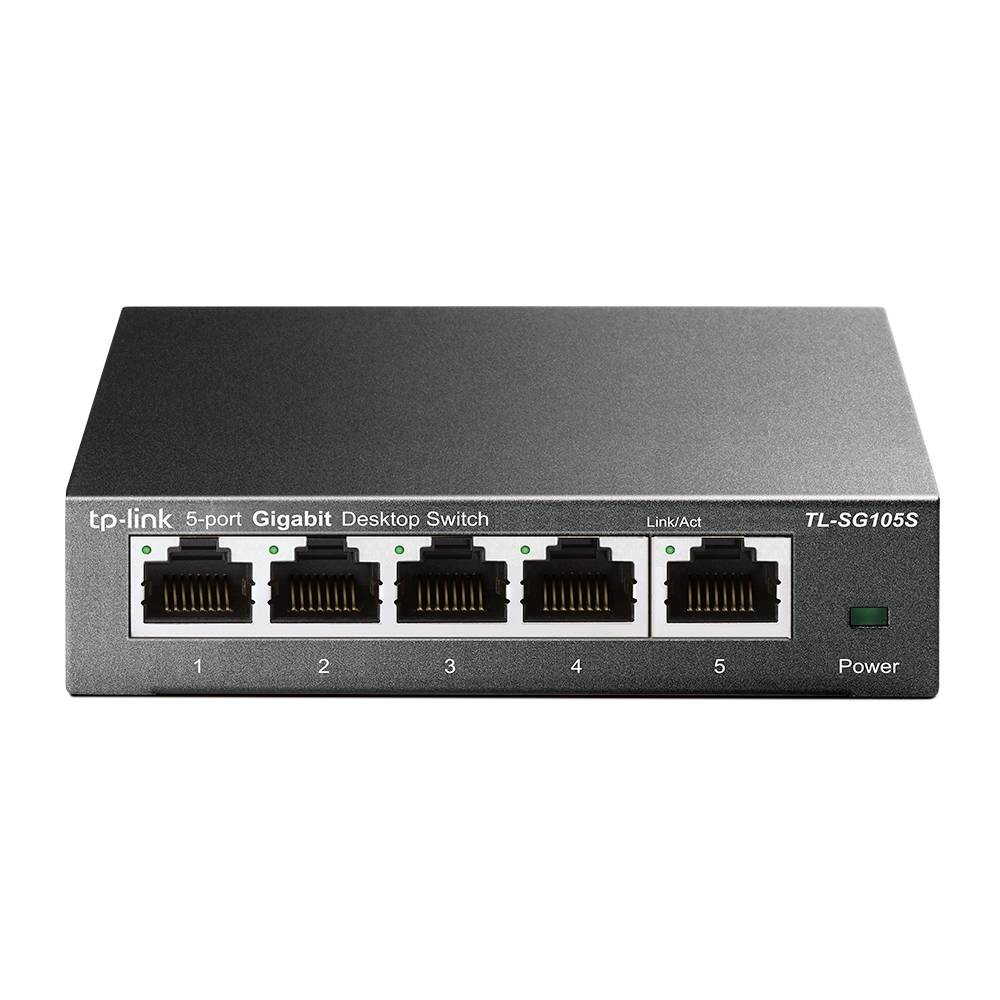

Front view of a TP-Link 5-port Gigabit desktop network switch with five Ethernet ports, status lights, and a power indicator.

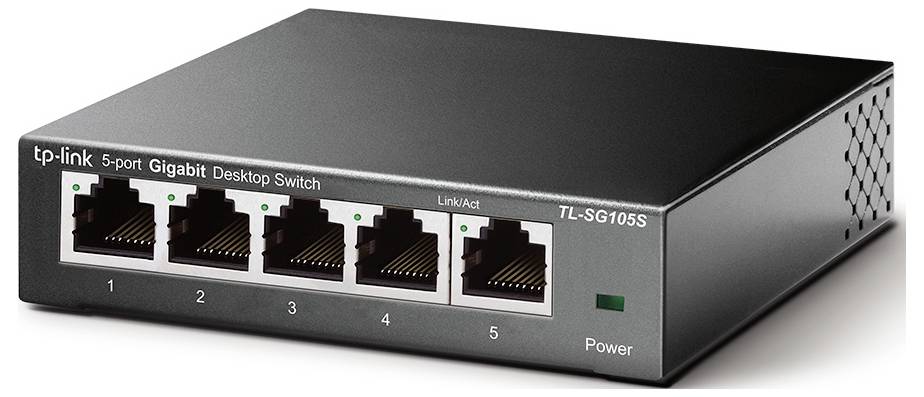

TP-Link 5-port Gigabit desktop network switch, model TL-SG105S, with five Ethernet ports and power indicator.<br>

Front view of a small gray electronic device showing a front USB-C port and a power input labeled '5V ⎓ 0.6A'.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK TL-SG105S Unmanaged Gigabit Ethernet (10/100/1000) black

Unmanaged
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 5
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T
MAC address table: 2000 entries
DC power supply included

Technical specifications

Power source: Direct current

Product type: Network switch

Working principle: Unmanaged switch

10/100/1000 Mbps ports: 5 x

Width: 100 mm

Height: 25 mm

Depth: 98 mm

Type: TL-SG105S V2

Factory colour: Black

Port: 5 ports

Material (details): Steel

Max. output current: 0.6 A

Output voltage: 9 V

Power supply (details): 220 V

Input voltage: 5 V

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 5

Packet buffer memory: 1 MB

Storage relative humidity (H-H): 5 - 90 %

Wall mountable: yes

Auto-negotiation: yes

Heat dissipation: 7.83 BTU/h

Jumbo frames: 16000

MAC address auto-learning supported: yes

MAC address auto-aging supported: yes

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Jumbo frames support: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 5

Rack mounting: no

Full duplex: yes

Number of power supply units: 1

MAC address table: 2000 Eintragungen

Rubber feet: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -40 - 70 °C

Package weight: 476 g

Forwarding rate: 7.4 Mpps

Plug and Play: yes

User guide: yes

Power consumption (max): 2.3 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799931 TP-LINK TL-SG105S V2 Network switch 5 ports

Description

WAS this product can?

The TP-LINK 5-port 10/100 / 1000Mbit/s desktop switch offers a simple possibility to change to Gigabit Ethernet. Increase the speed of your network server and backbone connections or turn Gigabit into a desktop. Plug-and-play design without any configuration required makes the product easy to use. Moreover, the TL-SG105S consumes less power. With the innovative energy-efficient technology, the TL-SG105S saves electricity and is thus an environment-friendly solution for your home or office network.

Gigabit Switch

With 5 x 10/100/1000Mbit/s-ports the TL-SG105S significantly expands your network capacity and enables the immediate transfer of large files. Power users in the home, office, workgroup or Creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD or multimedia files immediately on the network.

Go Green with your network

You now have the option to turn green when upgrading to a gigabit network. This new generation TL-SG105S 5 port 10/100/1000Mbit/s desktop switch has the latest innovative energy-efficient technologies to significantly increase your network capacity. It adjusts the power consumption automatically to the connection status and the cable length, in order to limit the CO2-footprint of your network.

Traffic optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP snooping optimizes the multicast stream.

Easy to use

The auto functions of this Gigabit switch make the installation plug-and-play and stress-free. No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto negotiation at each port detects the connection speed of a network device (either 10, 100 or 1000 Mbit/s) and adjusts intelligently to compatibility and optimum performance. In addition, the fan-less design provides for a silent operation.

This text is machine translated.
