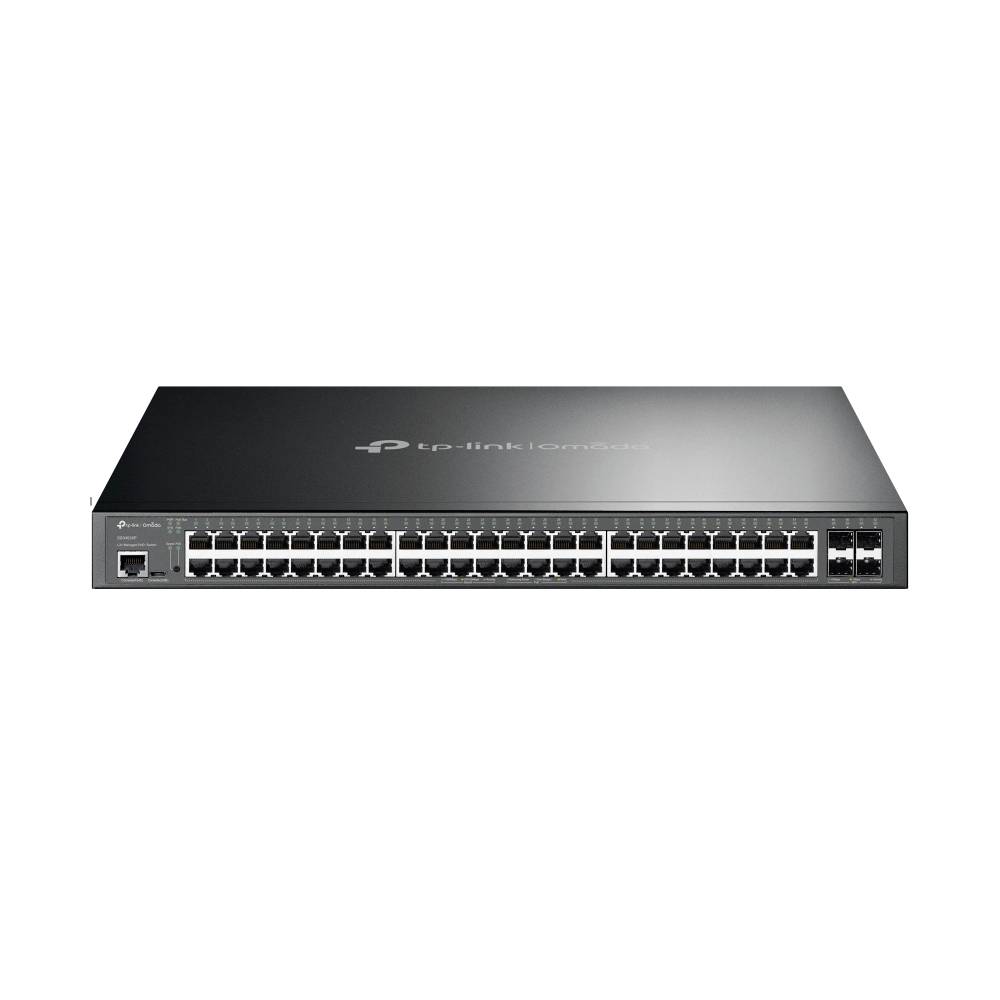

Front view of a TP-Link rackmount Ethernet switch with many RJ45 ports and two uplink ports on the right.

Front view of a TP-Link rackmount Ethernet switch with many RJ45 ports and two uplink ports on the right.

TP-LINK

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG3452XP network switch managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

Managed L2+ Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 48 console port: RJ-45/micro USB
10G support
MAC address table: 16000 entries Routing/switching capacity: 176 Gb/s.
Access control list
1U Rack-mounting
AC power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U
Number of fans: 3 fans
Energy source: AC

Product type: Managed network switch

Transfer rate: 176 Gbit/s

Working principle: Managed switch

Ethernet ports: 48

Router features: PoE

Weight: 7.4

Width: 440 mm

Height: 44 mm

Depth: 330 mm

Type: JetStream TL-SG3452XP V2.6

Factory colour: Black

Port: 48 ports

Length: 150 cm

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 48

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 500 W

Packet buffer memory: 12 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 176 Gbit/s

Heat dissipation: 2169.2 BTU/h

BPDU filtering/protection: yes

IP-MAC-Port binding: yes

ARP inspection: yes

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 30 W

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

Reset button: yes

Quick start guide: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 130.9 Mpps

Power consumption (max): 635.7 W

Power supply included: yes
