Name: TracoPower TDN 1-1212WISM DC/DC converter (print) 12 V DC +12 V DC 90 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 1600155
Availability: InStock

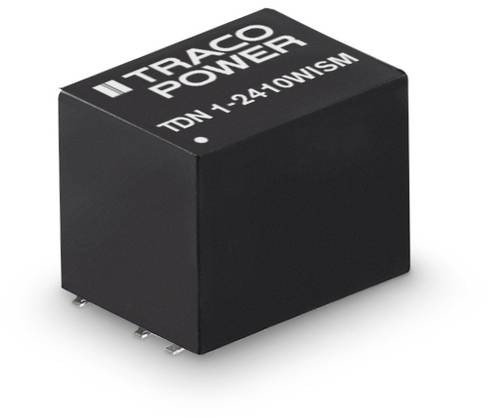

Black Traco Power voltage converter, model 'TDN 1-2410WISM', in cube form with silver connections on the underside.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TDN 1-1212WISM

Nominal voltage: 12 V DC

Min. input voltage: 4.5 V DC

Input voltage (max.): 18 V DC

No. of outputs: 1 x

Output voltages: +12 V DC

Max. output current: 90 mA

Output current (max.) - rounded: 90 mA

Efficiency (max.): 81 %

: 1 W

Insulation voltage: 1600 V DC

Enclosure: SMD

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 90 °C

Dim: (L x W x H) 14.2 x 9.1 x 10.2 mm

Height: 10.2 mm

Length: 14.2 mm

Width: 9.1 mm

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Output current (min.): 0 mA

Weight: 2.7 g

Content: 1 pc(s)

Type: TDN1-1212 WISM

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower TDN 1-1212WISM DC/DC converter (print) 12 V DC +12 V DC 90 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600155

Fast track dispatch on Thu 15 Oct

6 Piece(s)Conrad Electronic

This article

+12 V DC

18 V DC

90 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

TracoPower TDN 1-1210WISM DC/DC converter (print) 12 V DC +3.3 V DC 300 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600153

Fast track dispatch on Thu 15 Oct

10 Piece(s)Conrad Electronic

+3.3 V DC

18 V DC

300 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

TracoPower TDN 1-1211WISM DC/DC converter (print) 12 V DC +5 V DC 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:3372968

Available soon

Conrad Electronic

+5 V DC

18 V DC

200 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 23.99^*

TracoPower TDN 1-1213WISM DC/DC converter (print) 12 V DC +15 V DC 70 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600156

Available soon

Conrad Electronic

+15 V DC

18 V DC

70 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

TracoPower TDN 1-1215WISM DC/DC converter (print) 12 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600157

Available soon

Conrad Electronic

+24 V DC

18 V DC

45 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

TracoPower TDN 1-1219WISM DC/DC converter (print) 12 V DC +9 V DC 112 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600158

Available soon

Conrad Electronic

+9 V DC

18 V DC

112 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

TracoPower TDN 1-1221WISM DC/DC converter (print) 12 V DC +5 V DC, -5 V DC 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:1600159

Available soon

Conrad Electronic

+5 V DC

18 V DC

100 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

TracoPower TDN 1-1222WISM DC/DC converter (print) 12 V DC +12 V DC, -12 V DC 45 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:1600160

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

+12 V DC

18 V DC

45 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

TracoPower TDN 1-1223WISM DC/DC converter (print) 12 V DC +15 V DC, -15 V DC 35 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:1600161

Available soon

Conrad Electronic

+15 V DC

18 V DC

35 mA

12 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

TracoPower TDN 1-2410WISM DC/DC converter (print) 24 V DC +3.3 V DC 300 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:1600162

Fast track dispatch on Thu 15 Oct

6 Piece(s)Conrad Electronic

+3.3 V DC

36 V DC

300 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Documents & Downloads

Datasheet

Datasheet 1600155 TracoPower TDN 1-1212WISM DC/DC converter (print) 12 V DC +12 V DC 90 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1600155 TracoPower TDN 1-1212WISM DC/DC converter (print) 12 V DC +12 V DC 90 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

Compact SMD housing (13.2 mm x 9.1 mm x 10.2 mm), 4:1 input range. Exactly regulated output voltage. Short-circuit proof, external on/off.

This text is machine translated.

Description

Compact SMD housing (13.2 mm x 9.1 mm x 10.2 mm), 4:1 input range. Exactly regulated output voltage. Short-circuit proof, external on/off.
