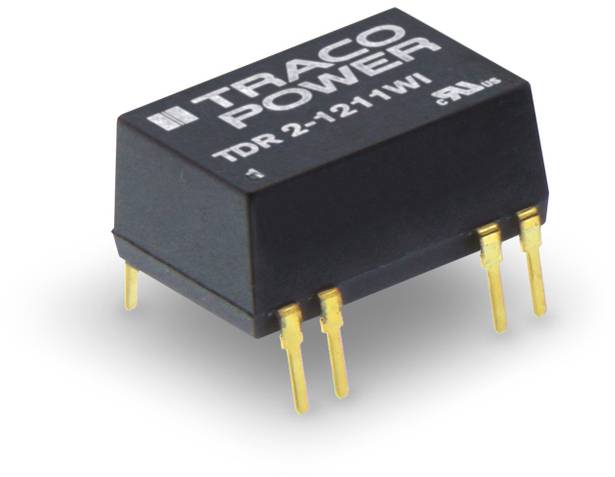

'Traco Power TDR 2-1211WI' – Miniature DC/DC converter with six terminals, labelled on the top side. Switching electronics application.

'Traco Power TDR 2-1211WI' – Miniature DC/DC converter with six terminals, labelled on the top side. Switching electronics application.

TracoPower

Datasheet (PDF)

Fast track dispatch on Tue 20 Oct

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 32.99 / piece)

€ 32.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC-converter TDR 2WI series, 2 Watt, DIL-casing

3-year manufacturer's guarantee

Technical specifications

Control deviations: input change ±0.2 %, load change ±1 %
Ripple: 30 mVpk-pk (20 MHz bandwidth)

Product type: DC/DC converter (print)

Type: TDR 2-1211WI

Nominal voltage: 12 V DC

Min. input voltage: 4.5 V DC

Input voltage (max.): 18 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 400 mA

Output current (max.) - rounded: 400 mA

Efficiency (max.): 79 %

: 2 W

Insulation voltage: 1500 V DC

Enclosure: DIL 14

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 18.9 x 12.8 x 8.7 mm

Height: 8.7 mm

Length: 18.9 mm

Width: 12.8 mm

Content: 1 pc(s)

: 2 W

Output voltage: 5 V DC

Output current (details): 400 mA

Type: TDR 2-1211WI

Input voltage: 4.5 - 18 V DC

Efficiency: 79 %

Operating temperature: (without output reduction) -40 to +85 °C

Insulation voltage: 1500 V DC

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 157197 TracoPower TDR 2-1211WI DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Datasheet 157197 TracoPower TDR 2-1211WI DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 157197 TracoPower TDR 2-1211WI DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Description

Compact features in the DIL 14 casing, ultra-wide 4:1 input range, no base load required. Regulated outputs, external on/off (standby 2.5 mA). Safety standards: UL/cUL 60950-1, EN 60950-1 and IEC 60950-1.

Description

Compact features in the DIL 14 casing, ultra-wide 4:1 input range, no base load required. Regulated outputs, external on/off (standby 2.5 mA). Safety standards: UL/cUL 60950-1, EN 60950-1 and IEC 60950-1.
