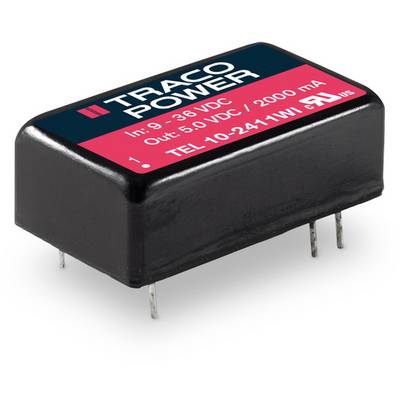

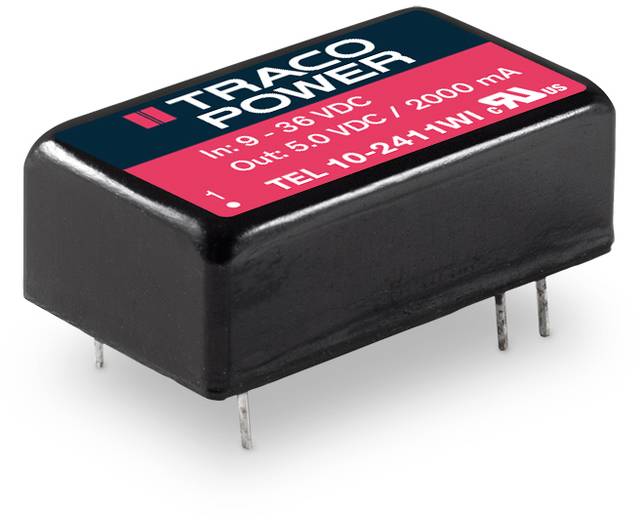

TracoPower TEL 10-2411WI DC/DC converter (print) 24 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 28.56
30
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 28.56 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEL 10-2411WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Efficiency (max.)
83 %
10 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 16
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+88 °C
- Dim
(L x W x H) 23.8 x 13.7 x 11.8 mm
- Height
11.8 mm
- Length
23.8 mm
- Width
13.7 mm
- Output voltage (max.)
5.1 V DC
- Weight
6.5 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371921 TracoPower TEL 10-2411WI DC/DC converter (print) 24 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371921 TracoPower TEL 10-2411WI DC/DC converter (print) 24 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371921 TracoPower TEL 10-2411WI DC/DC converter (print) 24 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371921 TracoPower TEL 10-2411WI DC/DC converter (print) 24 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
Description
4:1 input range, compact DIL-16 metal housing. Regulated output, E/A-insulation 1500 V/DC. Protection against permanent short circuit, input filter according to EN 55032, class A.
