Name: TracoPower TEL 2-2410 DC/DC converter (print) 24 V DC 3.3 V DC 500 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 1509504
Availability: InStock

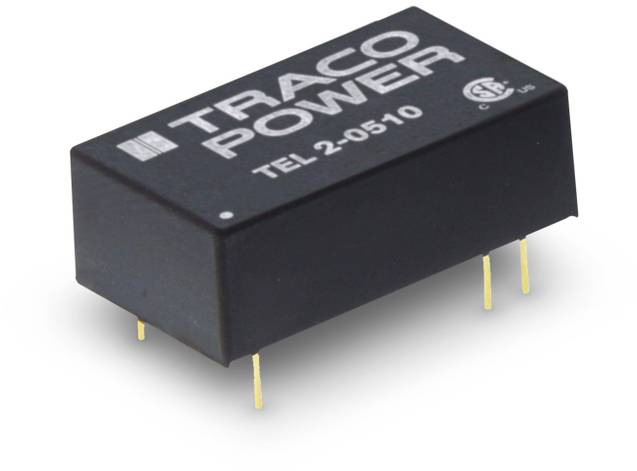

Power supply module by TRACO POWER, model TEL 2-0510, rectangular, with four yellow terminals at the bottom and logos on the top surface.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TEL 2-2410

Nominal voltage: 24 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 3.3 V DC

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 72 %

: 2 W

Insulation voltage: 1500 V DC

Enclosure: DIL 16

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 75 °C

Dim: (L x W x H) 23.8 x 10.82 x 13.7 mm

Height: 13.7 mm

Length: 23.8 mm

Width: 10.82 mm

Output voltage (max.): 3.3 V DC

Output voltage (min.): 3.3 V DC

Weight: 5.1 g

Content: 1 pc(s)

Type: TEL 2-2410

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Nominal voltage

Min. input voltage

TracoPower TEL 2-2410 DC/DC converter (print) 24 V DC 3.3 V DC 500 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Item no:1509504

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

This article

3.3 V DC

36 V DC

500 mA

3.3 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

TracoPower TEL 2-0510 DC/DC converter (print) 5 V DC 3.3 V DC 500 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370298

Available soon

Conrad Electronic

3.3 V DC

9 V DC

500 mA

3.3 V DC

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 16.99^*

TracoPower TEL 2-0513 DC/DC converter (print) 5 V DC 15 V DC 135 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370299

Available soon

Conrad Electronic

15 V DC

9 V DC

135 mA

15 V DC

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 17.99^*

TracoPower TEL 2-0521 DC/DC converter (print) 5 V DC 5 V DC, -5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370300

Available soon

Conrad Electronic

5 V DC

9 V DC

200 mA

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 17.99^*

TracoPower TEL 2-1213 DC/DC converter (print) 12 V DC 15 V DC 135 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370301

Available soon

Conrad Electronic

15 V DC

18 V DC

135 mA

15 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 17.99^*

TracoPower TEL 2-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370302

Available soon

Conrad Electronic

5 V DC

18 V DC

200 mA

5 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 19.99^*

TracoPower DC/DC converter (print) 12 V DC 15 V DC 135 mA 2 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791104

Unavailable

Conrad Electronic

15 V DC

18 V DC

135 mA

15 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

TracoPower DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 200 mA 2 W No. of outputs: 2 x Content 10 pc(s)

Item no:2791105

Unavailable

Conrad Electronic

5 V DC

18 V DC

200 mA

5 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

TracoPower DC/DC converter (print) 24 V DC 15 V DC 135 mA 2 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791106

Unavailable

Conrad Electronic

15 V DC

36 V DC

135 mA

15 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

TracoPower DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 200 mA 2 W No. of outputs: 2 x Content 10 pc(s)

Item no:2791107

Unavailable

Conrad Electronic

5 V DC

36 V DC

200 mA

5 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

Documents & Downloads

Datasheet

Datasheet 1509504 TracoPower TEL 2-2410 DC/DC converter (print) 24 V DC 3.3 V DC 500 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1509504 TracoPower TEL 2-2410 DC/DC converter (print) 24 V DC 3.3 V DC 500 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Description

2 W converter in DIL 16 casing, E/A-insulation 1500 V/DC, regulated outputs, 2:1 input range, short circuit, input filter according to EN 55022, class A.

This text is machine translated.

Description

2 W converter in DIL 16 casing, E/A-insulation 1500 V/DC, regulated outputs, 2:1 input range, short circuit, input filter according to EN 55022, class A.

This text is machine translated.
