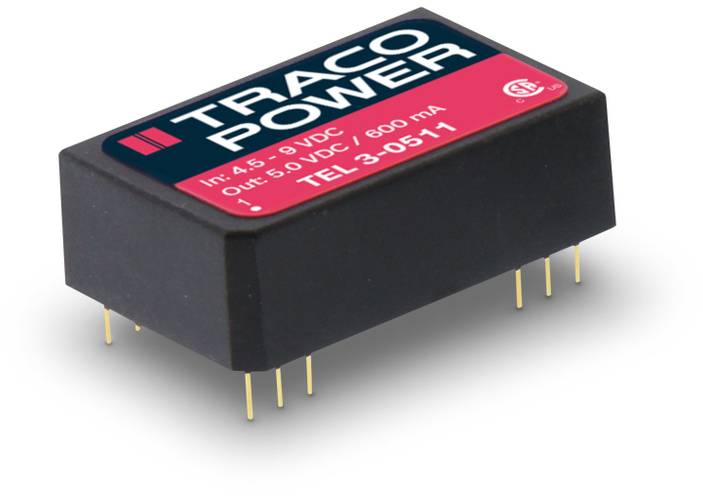

TracoPower TEL 3-0511 DC/DC converter (print) 5 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
Only 10 Piece(s) available
Highlights & Details
DC/DC converter TEL 3 series, 3 W, DIL-24
- Protected against permanent short circuit
- 3 year guarantee
Technical specifications
- Ripple: (20 MHz bandwidth) 60 mVpp
- Power control ± 0.5%
- Load regulation (%): (Single) ±0.5%/(Dual) ± 1%
- Product type
DC/DC converter (print)
- Type
TEL 3-0511
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
9 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
78 %
3 W
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
3 W
- Output voltage
5 V DC
- Output current (details)
600 mA
- Type
TEL 3 Series
- Operating temperature
-25 - +75 °C
- Mains control
max. ±0.5 %
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 154356 TracoPower TEL 3-0511 DC/DC converter (print) 5 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 154356 TracoPower TEL 3-0511 DC/DC converter (print) 5 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 154356 TracoPower TEL 3-0511 DC/DC converter (print) 5 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
Wide 2:1input range, EN/IEC 60950, UL/cUL 1950.
Features
- Further 2:1 input range
- Permanent short circuit.
- This text is machine translated.
