Name: TracoPower TEN 10-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 330 mA 10 W No. of outputs: 2 x Content 1 pc(s)
Brand: TracoPower
SKU: 154370
Availability: InStock

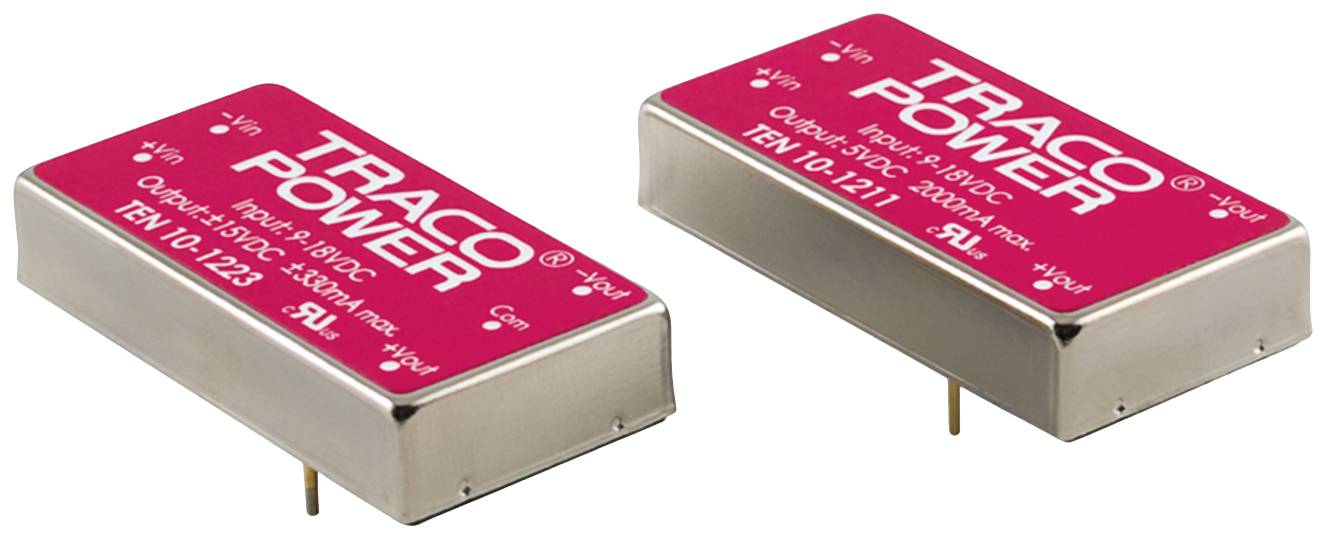

Two red TRACO POWER DC-DC converters with metal enclosures, model numbers TEN 10-1223 and TEN 10-1211, for electrical power conversion.

Datasheet (PDF)

Fast track dispatch on Tue 20 Oct

40 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TracoPower TEN 10-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 330 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Protected against permanent short circuit
3 year guarantee

Technical specifications

Residual ripple: (20 MHz bandwidth) 50 mVpp
Power control ± 0.3%
Load regulation (%): (Single) ±0.5%/(Dual) ± 1%

Product type: DC/DC converter (print)

Type: TEN 10-1223

Nominal voltage: 12 V DC

Min. input voltage: 9 V DC

Input voltage (max.): 18 V DC

No. of outputs: 2 x

Output voltages: 15 V DC
-15 V DC

Max. output current: 330 mA

Output current (max.) - rounded: 330 mA

Efficiency (max.): 81 %

: 10 W

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 75 °C

Dim: (L x W x H) 50.8 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 50.8 mm

Width: 25.4 mm

Content: 1 pc(s)

: 10 W

Output voltage: ±15 V DC

Output current (details): ±330 mA

Type: TEN 10 Series

Operating temperature: -40 - +75 °C

Mains control: max. ±0.3 %

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower TEN 10-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 330 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:154370

Fast track dispatch on Tue 20 Oct

40 Piece(s)Conrad Electronic

This article

15 V DC

18 V DC

330 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

TracoPower TEN 10-1210 DC/DC converter (print) 12 V DC 3.3 V DC 2.4 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:3369885

Available soon

Conrad Electronic

3.3 V DC

18 V DC

2.4 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 71.99^*

TracoPower TEN 10-1212 DC/DC converter (print) 12 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:3369886

Available soon

Conrad Electronic

12 V DC

18 V DC

830 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 59.99^*

TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:154330

Available soon

1 Piece(s)Conrad Electronic

24 V DC

18 V DC

415 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 10

€ 59.99^*

TracoPower TEN 10-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:3369888

Available soon

Conrad Electronic

5 V DC

18 V DC

1 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 65.99^*

TracoPower TEN 10-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 415 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:3369890

Available soon

Conrad Electronic

12 V DC

18 V DC

415 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 63.99^*

TracoPower TEN 10-2410 DC/DC converter (print) 24 V DC 3.3 V DC 2.4 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:3369892

Available soon

Conrad Electronic

3.3 V DC

36 V DC

2.4 A

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 71.99^*

TracoPower TEN 10-2411 DC/DC converter (print) 24 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:154396

Fast track dispatch on Tue 20 Oct

13 Piece(s)Conrad Electronic

5 V DC

36 V DC

2 A

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

TracoPower TEN 10-2412 DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:154409

Fast track dispatch on Tue 20 Oct

12 Piece(s)Conrad Electronic

12 V DC

36 V DC

830 mA

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

TracoPower TEN 10-2415 DC/DC converter (print) 24 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:3369895

Fast track dispatch on Tue 20 Oct

3 Piece(s)Conrad Electronic

24 V DC

36 V DC

415 mA

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Documents & Downloads

Datasheet

Datasheet 154370 TracoPower TEN 10-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 330 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 154370 TracoPower TEN 10-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 330 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Description

Wide 2:1 input range, protected against permanent short circuit , input filter in accordance with EN 55022, class A.

Description

Wide 2:1 input range, protected against permanent short circuit , input filter in accordance with EN 55022, class A.
