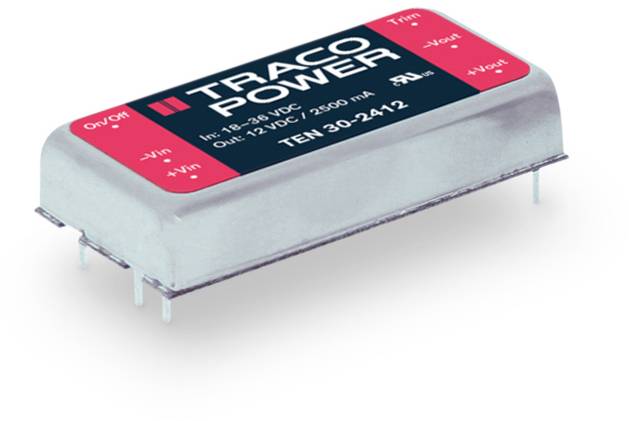

TracoPower TEN 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 6 Piece(s) available
Highlights & Details
DC/DC converter TEN 30 series, 30 Watt, 2:1 input
- 3-year manufacturer's guarantee
Technical specifications
- Control deviations: input change ±0.2 %, load change Single ±0.5 %/Dual 1 %.
- Ripple: 100 mVpk-pk (20 MHz bandwidth)
- Product type
DC/DC converter (print)
- Type
TEN 30-2412
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Efficiency (max.)
91 %
30 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50 x 25 x 10 mm
- Height
10 mm
- Length
50 mm
- Width
25 mm
- Content
1 pc(s)
30 W
- Output voltage
12 V DC
- Output current (details)
2500 mA
- Type
TEN 30-2412
- Input voltage
18 - 36 V DC
- Efficiency
91 %
- Operating temperature
(above 60ºC power reduction) -40 to +85 °C
- Insulation voltage
1500 V DC
Documents & Downloads
Datasheet
Datasheet 157304 TracoPower TEN 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 157304 TracoPower TEN 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 157304 TracoPower TEN 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 1 pc(s)
Description
Small, encapsulated 30 W converter, metallic casing with insulated base plates. Wide 2:1 input range, very high degree of efficiency. Short-circuit protection, remote on/off, adjustable output voltage. Conduction disturbances EN 55022, Class A and FCC, Level A, with external capacitor. Safety standards / approvals: UL/cUL 60950-1, IEC/EN 60950-1.
