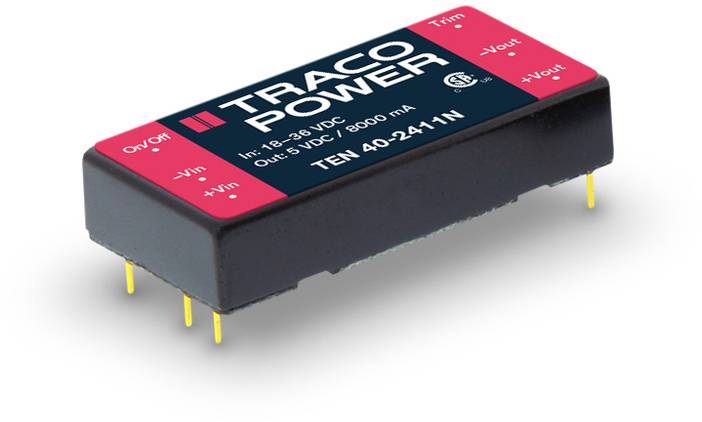

TracoPower TEN 40-2411N DC/DC converter (print) 12 V DC 5 V DC 8 A 40 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 70.58 / piece)
€ 705.80
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 40-2411N
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Efficiency (max.)
89 %
40 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 50.8 x 15.7 x 25.4 mm
- Height
25.4 mm
- Length
50.8 mm
- Width
15.7 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
30 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370522 TracoPower TEN 40-2411N DC/DC converter (print) 12 V DC 5 V DC 8 A 40 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370522 TracoPower TEN 40-2411N DC/DC converter (print) 12 V DC 5 V DC 8 A 40 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370522 TracoPower TEN 40-2411N DC/DC converter (print) 12 V DC 5 V DC 8 A 40 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370522 TracoPower TEN 40-2411N DC/DC converter (print) 12 V DC 5 V DC 8 A 40 W No. of outputs: 1 x Content 1 pc(s)
Description
40 W in 25.4 mm x 50.8 mm x 10 mm housing, 2:1 input range, external on/off, permanent short circuit, input/output insulation 1500 V/DC.
