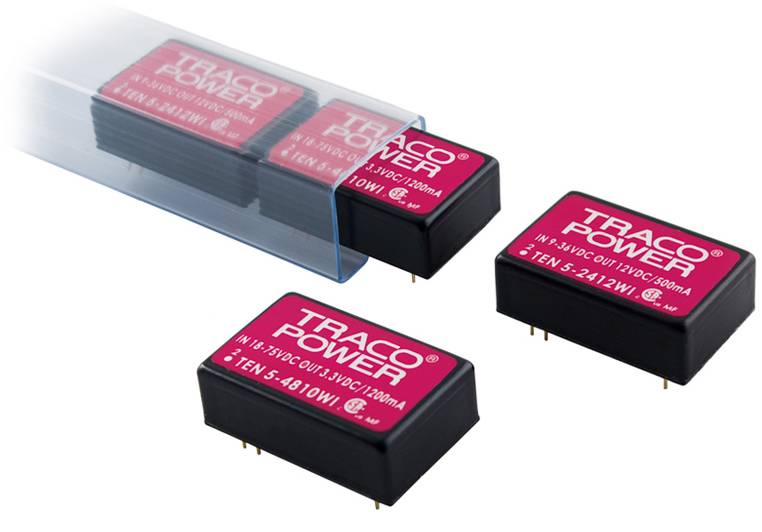

TracoPower TEN 5-2411WI DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 37.99 / piece)
€ 37.99
incl. VAT
14-day return policy included
Technical specifications
- Control deviations: For input variation max. ± 0.3 %, for load variation max. ±2 %
- Product type
DC/DC converter (print)
- Type
TEN 5-2411WI
- Nominal voltage
24 V DC
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
79 %
5 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
5 W
- Output voltage
5 V DC
- Output current (details)
1 A
- Type
TEN 5 Series
- Operating temperature
(above 70 ºC power reduction 3.5 %/K) -40 - +85 ºC
- Casing
DIP-24, SMD
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 154161 TracoPower TEN 5-2411WI DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 154161 TracoPower TEN 5-2411WI DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 154161 TracoPower TEN 5-2411WI DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Description
Very wide 4:1 input voltage range, input filter according to EN 55022, class A and FCC, level A with no external components.
