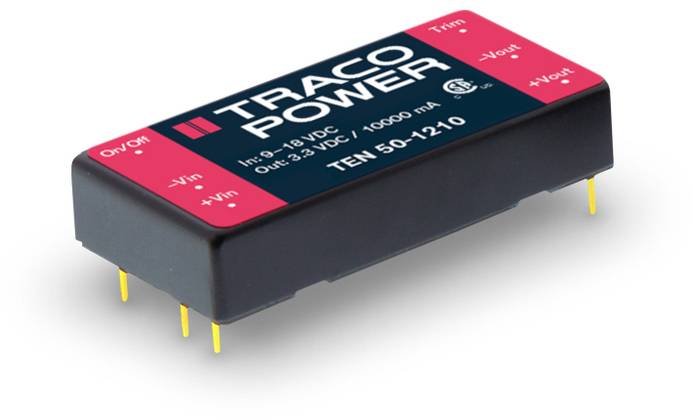

TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 96.63 / piece)
€
Technical specifications
- Type
TEN 50-1210
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
3.3 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Efficiency (max.)
89 %
50 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 16.5 x 25.4 mm
- Height
25.4 mm
- Length
50.8 mm
- Width
16.5 mm
- Content
1 pc(s)
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
30 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3370595 TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370595 TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370595 TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370595 TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)
Description
50 W in 25.4 mm x 50.8 mm x 10 mm housing, 2:1 input range, input/output insulation 1500 V/DC, external on/off.
