Name: TracoPower TEN 50-4815 DC/DC converter (print) 24 V DC 24 V DC 2.08 A 50 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 3370615
Availability: InStock

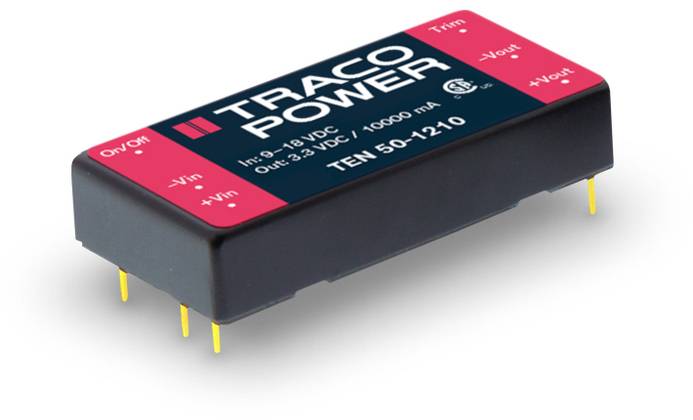

Rectangular electronic module from Traco Power with the label 'TEN 50-1210', input and output terminals marked.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 99.99 / piece)

€ 999.90

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TEN 50-4815

Nominal voltage: 24 V DC

Min. input voltage: 36 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Output voltages: 24 V DC

Max. output current: 2.08 A

Output current (max.) - rounded: 2.08 A

Efficiency (max.): 91 %

: 50 W

Insulation voltage: 1500 V DC

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 50.8 x 16.5 x 24.5 mm

Height: 24.5 mm

Length: 50.8 mm

Width: 16.5 mm

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Weight: 34 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Nominal voltage

Min. input voltage

TracoPower TEN 50-1210 DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370595

Available soon

Conrad Electronic

3.3 V DC

18 V DC

10 A

3.3 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 114.99^*

TracoPower TEN 50-1211 DC/DC converter (print) 12 V DC 5 V DC 10 A 50 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370596

Available soon

Conrad Electronic

5 V DC

18 V DC

10 A

5 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 114.99^*

TracoPower TEN 50-1212 DC/DC converter (print) 12 V DC 12 V DC 4.17 A 50 W No. of outputs: 1 x Content 1 pc(s)

Item no:1509918

Fast track dispatch on Wed 21 Oct

9 Piece(s)Conrad Electronic

12 V DC

18 V DC

4.17 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

TracoPower TEN 50-1212 DC/DC converter (print) 12 V DC 12 V DC 4.17 A 50 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370597

Available soon

Conrad Electronic

12 V DC

18 V DC

4.17 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 104.99^*

TracoPower DC/DC converter (print) 12 V DC 12 V DC 4.17 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791401

Unavailable

Conrad Electronic

12 V DC

18 V DC

4.17 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 995.00^*

TracoPower DC/DC converter (print) 12 V DC 15 V DC 3.33 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791402

Unavailable

Conrad Electronic

15 V DC

18 V DC

3.33 A

15 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 995.00^*

TracoPower DC/DC converter (print) 12 V DC 24 V DC 2.08 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791403

Unavailable

Conrad Electronic

24 V DC

18 V DC

2.08 A

24 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 995.00^*

TracoPower DC/DC converter (print) 12 V DC 3.3 V DC 10 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791399

Unavailable

Conrad Electronic

3.3 V DC

18 V DC

10 A

3.3 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 995.00^*

TracoPower DC/DC converter (print) 12 V DC 5 V DC 10 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791400

Unavailable

Conrad Electronic

5 V DC

18 V DC

10 A

5 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 995.00^*

TracoPower DC/DC converter (print) 24 V DC 12 V DC 4.17 A 50 W No. of outputs: 1 x Content 10 pc(s)

Item no:2791408

Unavailable

Conrad Electronic

12 V DC

36 V DC

4.17 A

12 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 975.00^*

Documents & Downloads

Datasheet

Datasheet 3370615 TracoPower TEN 50-4815 DC/DC converter (print) 24 V DC 24 V DC 2.08 A 50 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3370615 TracoPower TEN 50-4815 DC/DC converter (print) 24 V DC 24 V DC 2.08 A 50 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3370615 TracoPower TEN 50-4815 DC/DC converter (print) 24 V DC 24 V DC 2.08 A 50 W No. of outputs: 1 x Content 1 pc(s)

Description

50 W in 25.4 mm x 50.8 mm x 10 mm housing, 2:1 input range, input/output insulation 1500 V/DC, external on/off.

This text is machine translated.

Description

50 W in 25.4 mm x 50.8 mm x 10 mm housing, 2:1 input range, input/output insulation 1500 V/DC, external on/off.

This text is machine translated.
