Name: TracoPower TEN 6-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Brand: TracoPower
SKU: 1086415
Availability: InStock

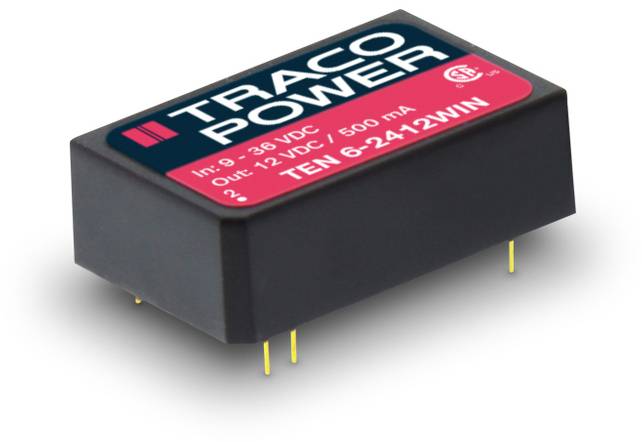

'TRACO POWER' module with specifications: Input 9-36 VDC, Output 12 VDC / 500 mA, Model number TEN 6-2412WIN.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC-DC Converter, 6 W, 48 V/±5 V

Wide 4:1 input voltage range
High efficiency
Operating temperature range
–40°C to +85°C
No minimum load required
Models with I/O isolation 1’500 VDC
Input filter meets EN 55022 class A
Overload protection
DIP-24 plastic package
Industry standard pinout
3-year product warranty

Technical specifications

Input voltage range: 18-75 V
Output voltage: ±5 V
Output current: ±500 mA
Output Power: 6 Watt
Efficiency: 80 %
Regulation: Input variation: 0.5 % max.,Output variation (0-100%): 1.2 % max
Ripple & noise: <80 mVpk-pk (20 MHz Bandwidth)
Short circuit protection: continuous
Operating temperature range:-40°C to +85°C, Derating above +70°C: 3,3%/K
Safety standards: UL/cUL 60950-1, IEC/EN 60950-1

Product type: DC/DC converter (print)

Type: TEN 6-4821WIN

Nominal voltage: 48 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 2 x

Output voltages: 5 V DC
-5 V DC

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 80 %

: 6 W

Enclosure: DIL 24

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 31.80 x 20.30 x 10.20 mm

Height: 10.20 mm

Length: 31.80 mm

Width: 20.30 mm

Weight: 4.8 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower TEN 6-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:1086415

Fast track dispatch on Wed 21 Oct

7 Piece(s)Conrad Electronic

This article

5 V DC

75 V DC

500 mA

48 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TEN 6-2410WIN DC/DC converter (print) 24 V DC 3.3 V DC 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370045

Available soon

Conrad Electronic

3.3 V DC

36 V DC

1.2 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 26.99^*

TracoPower TEN 6-2411WIN DC/DC converter (print) 24 V DC 5 V DC 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086403

Fast track dispatch on Wed 21 Oct

9 Piece(s)Conrad Electronic

5 V DC

36 V DC

1.2 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

TracoPower TEN 6-2413WIN DC/DC converter (print) 24 V DC 15 V DC 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370046

Available soon

Conrad Electronic

15 V DC

36 V DC

400 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 26.99^*

TracoPower TEN 6-2415WIN DC/DC converter (print) 24 V DC 24 V DC 250 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086406

Fast track dispatch on Wed 21 Oct

5 Piece(s)Conrad Electronic

24 V DC

36 V DC

250 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

TracoPower TEN 6-2421WIN DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:1086407

Fast track dispatch on Wed 21 Oct

5 Piece(s)Conrad Electronic

5 V DC

36 V DC

500 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TEN 6-2422WIN DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370047

Available soon

Conrad Electronic

12 V DC

36 V DC

250 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 28.99^*

TracoPower TEN 6-2423WIN DC/DC converter (print) 24 V DC 15 V DC, -15 V DC 200 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:1086409

Fast track dispatch on Wed 21 Oct

20 Piece(s)Conrad Electronic

15 V DC

36 V DC

200 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TEN 6-4810WIN DC/DC converter (print) 48 V DC 3.3 V DC 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370048

Available soon

Conrad Electronic

3.3 V DC

75 V DC

1.2 A

48 V DC

18 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 27.99^*

TracoPower TEN 6-4811WIN DC/DC converter (print) 48 V DC 5 V DC 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086411

Fast track dispatch on Wed 21 Oct

7 Piece(s)Conrad Electronic

5 V DC

75 V DC

1.2 A

48 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Documents & Downloads

Datasheet

Datasheet 1086415 TracoPower TEN 6-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1086415 TracoPower TEN 6-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1086415 TracoPower TEN 6-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Description

The TEN-6WIN series is designed for an optimized cost/performance ratio of
DC/DC converters with output power of 6 Watt.
General features like no minimum load requirement, overload protection, internal
filter for EN55022 class A and high efficiency make these converters easy to design
in. With the popular DIP-24 standard package they are also a drop in replacement
for many cost critical applications.
