Name: TracoPower TEP 100-7211WIR DC/DC converter (print) 110 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 1510065
Availability: InStock

Power converter 'TRACO POWER TEP 100-2412WIR', input 8.5-36V, output 12V/8.4A, rectangular, with connections at the bottom.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TEP 100-7211WIR

Nominal voltage: 110 V DC

Min. input voltage: 43 V DC

Input voltage (max.): 160 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

Efficiency (max.): 90 %

: 100 W

Insulation voltage: 1500 V DC

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 57.9 x 17.8 x 61 mm

Height: 61 mm

Length: 57.9 mm

Width: 17.8 mm

Output voltage (max.): 5 V DC

Output voltage (min.): 5 V DC

Weight: 105 g

Content: 1 pc(s)

Type: We TEP 100-7211

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower TEP 100-7211WIR DC/DC converter (print) 110 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510065

Fast track dispatch on Thu 15 Oct

15 Piece(s)Conrad Electronic

This article

5 V DC

160 V DC

20 A

110 V DC

43 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

TracoPower TEP 100-2410WIR DC/DC converter (print) 24 V DC 3.3 V DC 25 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510050

Available soon

Conrad Electronic

3.3 V DC

36 V DC

25 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

TracoPower TEP 100-2411WIR DC/DC converter (print) 24 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510051

Available soon

Conrad Electronic

5 V DC

36 V DC

20 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

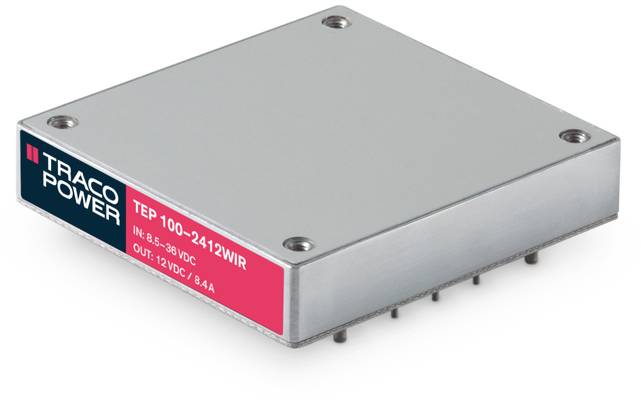

TracoPower TEP 100-2412WIR DC/DC converter (print) 24 V DC 12 V DC 8.4 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510052

Available soon

Conrad Electronic

12 V DC

36 V DC

8.4 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

TracoPower TEP 100-2413WIR DC/DC converter (print) 24 V DC 15 V DC 6.7 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:2791519

Available soon

Conrad Electronic

15 V DC

36 V DC

6.7 A

24 V DC

8.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

TracoPower TEP 100-2415WIR DC/DC converter (print) 24 V DC 24 V DC 4.2 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510054

Available soon

Conrad Electronic

24 V DC

36 V DC

4.2 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

TracoPower TEP 100-2416WIR DC/DC converter (print) 24 V DC 28 V DC 3.6 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510055

Available soon

Conrad Electronic

28 V DC

36 V DC

3.6 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

TracoPower TEP 100-2418WIR DC/DC converter (print) 24 V DC 48 V DC 2.1 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510056

Available soon

Conrad Electronic

48 V DC

36 V DC

2.1 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

TracoPower TEP 100-4810WIR DC/DC converter (print) 48 V DC 3.3 V DC 25 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510057

Available soon

Conrad Electronic

3.3 V DC

75 V DC

25 A

48 V DC

16.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

TracoPower TEP 100-4811WIR DC/DC converter (print) 48 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)

Item no:1510058

Available soon

Conrad Electronic

5 V DC

75 V DC

20 A

48 V DC

16.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

Documents & Downloads

Datasheet

Datasheet 1510065 TracoPower TEP 100-7211WIR DC/DC converter (print) 110 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1510065 TracoPower TEP 100-7211WIR DC/DC converter (print) 110 V DC 5 V DC 20 A 100 W No. of outputs: 1 x Content 1 pc(s)

Description

4:1 input range, approval for railways according to EN 50155, adjustable output voltage with ext. Resistance, reverse polarity protection, heat sink (Option - not included).
