Name: TracoPower THB 3-2411 DC/DC converter (print) 24 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 3370003
Availability: BackOrder

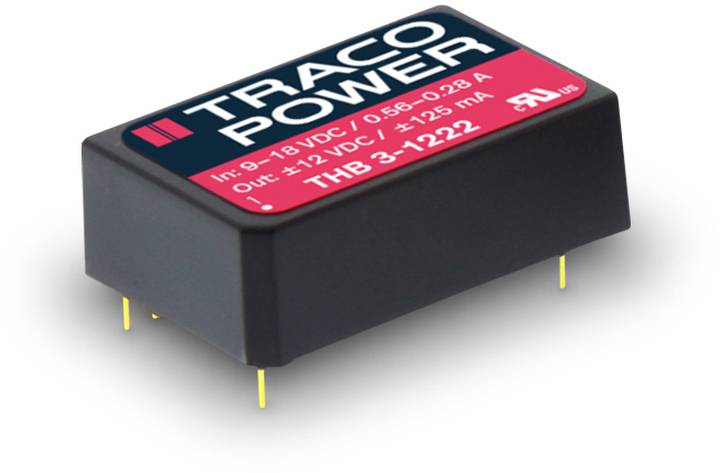

Rectangular electronic component by Traco Power with labelling 'THB 3-1222', input voltage 9-18 VDC, output +12 VDC.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 47.99 / piece)

€ 479.90

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter THB 3 series, 3 Watt, 2:1 input, reinforced insulation

3-year manufacturer's guarantee

Technical specifications

Control deviations: input change ±0.5 %, load change Single ±1 %/Dual ±2 %
Ripple: 150 mVpk-pk (20 MHz bandwidth)

Product type: DC/DC converter (print)

Type: THB 3-2411

Nominal voltage: 24 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 600 mA

Output current (max.) - rounded: 600 mA

Efficiency (max.): 78 %

: 3 W

Insulation voltage: 4000 V DC

Enclosure: DIL 24

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 32 x 20 x 10 mm

Height: 10 mm

Length: 32 mm

Width: 20 mm

Content: 1 pc(s)

: 3 W

Type: THB Series

Operating temperature: (above 70ºC power reduction) -40 to +85 °C

Insulation voltage: (60 s/50 Hz) efficiency. 4000 V AC

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Nominal voltage

Output current (max.) - rounded

Output voltages

TracoPower THB 3-2411 DC/DC converter (print) 24 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370003

Available soon

Conrad Electronic

This article

36 V DC

18 V DC

24 V DC

600 mA

5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

TracoPower THB 3-1211 DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:3369999

Available soon

Conrad Electronic

18 V DC

9 V DC

12 V DC

600 mA

5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 42.99^*

TracoPower THB 3-1212 DC/DC converter (print) 12 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370000

Available soon

Conrad Electronic

18 V DC

9 V DC

12 V DC

250 mA

12 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

TracoPower THB 3-1215 DC/DC converter (print) 12 V DC 5 V DC 125 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:3372791

Available soon

Conrad Electronic

36 V DC

18 V DC

12 V DC

125 mA

5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

TracoPower THB 3-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370001

Available soon

Conrad Electronic

18 V DC

9 V DC

12 V DC

125 mA

12 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 51.99^*

TracoPower THB 3-1223 DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370002

Available soon

Conrad Electronic

18 V DC

9 V DC

12 V DC

100 mA

15 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370004

Available soon

Conrad Electronic

36 V DC

18 V DC

24 V DC

125 mA

12 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower THB 3-2423 DC/DC converter (print) 24 V DC 15 V DC, -15 V DC 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:3370005

Available soon

Conrad Electronic

36 V DC

18 V DC

24 V DC

100 mA

15 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower DC/DC converter (print) 12 V DC 5 V DC 125 mA 3 W No. of outputs: 1 x Content 10 pc(s)

Item no:2793989

Unavailable

Conrad Electronic

36 V DC

18 V DC

12 V DC

125 mA

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

TracoPower THB 3-1215 DC/DC converter (print) 12 V DC 5 V DC 125 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:157321

Unavailable

Conrad Electronic

36 V DC

18 V DC

12 V DC

125 mA

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

Documents & Downloads

Datasheet

Datasheet 3370003 TracoPower THB 3-2411 DC/DC converter (print) 24 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3370003 TracoPower THB 3-2411 DC/DC converter (print) 24 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3370003 TracoPower THB 3-2411 DC/DC converter (print) 24 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Description

Further 2:1 input range, input/output insulation 400 V/AC eff., short circuit protection. Reinforced insulation for 300 V/AC operating voltage, safety standards for medical and industrial applications. Input filter according to EN 55022, class A. Safety standards/approvals cUL/UL 60950-1, IEC/EN 60950-1, EN 50124-1&2, IEC/EN/UL 60601-1, CSA C22.2 No. 601-1.
