Name: TracoPower THD 15-2423WIN DC/DC converter (print) 24 V DC 15 V DC, -15 V DC 500 mA 15 W No. of outputs: 2 x Content 1 pc
Brand: TracoPower
SKU: 1086450
Availability: InStock

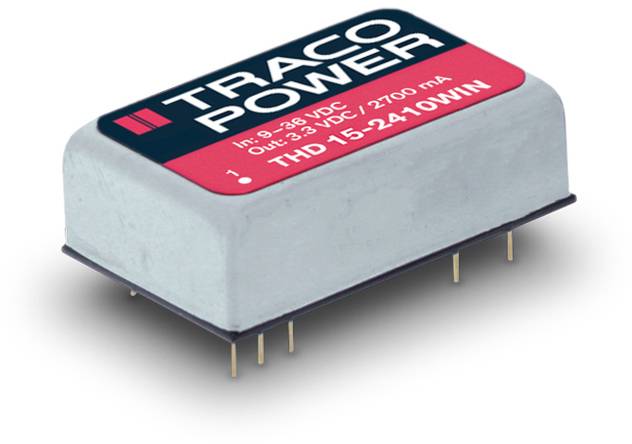

Traco Power DC-DC converter module labeled 'THD 15-2410WN' with specs for 9-36 VDC input and 15 VDC output<br>

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC-DC Converter, 15 W, 24 V/±15 V

Highest power density in DIP 24 package
Shielded metal case with isolated baseplate
Very high efficiency
Ultra wide 4:1 input ranges
No minimum load required
Input filter meets EN 55022 class A without external components
I/O isolation voltage 1500 VDC
Operating temp. range –40°C to +85°C
Remote On/Off control
Industry standard pinout
3-year product warranty

Technical specifications

Input voltage range: 9-36 V
Output voltage: ±15 V
Output current: ±500 mA
Output Power: 15 Watt
Efficiency: 90 %
Regulation: Input variation: 0.5 % max.,Output variation (0-100%): 1.0 % max
Ripple and noise: <60 mVpk-pk (20 MHz Bandwidth)
Short circuit protection: indefinite, automatic recovery
Operating temperature range:-40°C to +85°C, Derating above +65°C: 3,2%/K
Safety standards: UL/cUL 60950-1, IEC/EN 60950-1

Product type: DC/DC converter (print)

Type: THD 15-2423WIN

Nominal voltage: 24 V DC

Min. input voltage: 9 V DC

Input voltage (max.): 36 V DC

No. of outputs: 2 x

Output voltages: 15 V DC
-15 V DC

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 90 %

: 15 W

Enclosure: DIP 24

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 31.80 x 20.30 x 10.20 mm

Height: 10.20 mm

Length: 31.80 mm

Width: 20.30 mm

Weight: 14.4 g

Content: 1 pc(s)
