Name: TracoPower THN 15-4811WIR DC/DC converter (print) 48 V DC +5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 3371589
Availability: BackOrder

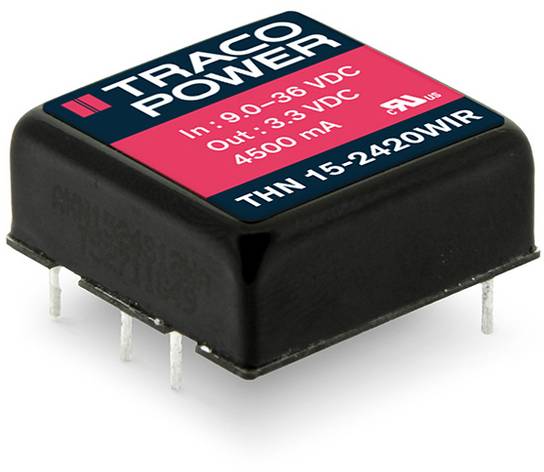

'Black Traco Power Voltage Converter, Model THN 15-2420WIR, Input: 9-36 VDC, Output: 3.3 VDC, 4500 mA, with four pins.'

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 65.99 / piece)

€ 659.90

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: THN 15-4811WIR

Nominal voltage: 48 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Output voltages: +5 V DC

Max. output current: 3 A

Output current (max.) - rounded: 3 A

Efficiency (max.): 89 %

: 15 W

Insulation voltage: 3000 V DC

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 90 °C

Dim: (L x W x H) 25.4 x 25.4 x 15.5 mm

Height: 15.5 mm

Length: 25.4 mm

Width: 25.4 mm

Output voltage (max.): 5 V DC

Output voltage (min.): 5 V DC

Output current (min.): 0 mA

Weight: 16.5 g

Content: 1 pc(s)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower THN 15-2410WIR DC/DC converter (print) 24 V DC +3.3 V DC 4.5 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371580

Available soon

Conrad Electronic

+3.3 V DC

36 V DC

4.5 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 63.99^*

TracoPower THN 15-2411WIR DC/DC converter (print) 24 V DC +5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:3372943

Available soon

Conrad Electronic

+5 V DC

36 V DC

3 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 61.99^*

TracoPower THN 15-2412WIR DC/DC converter (print) 24 V DC +12 V DC 1.3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371581

Available soon

Conrad Electronic

+12 V DC

36 V DC

1.3 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 59.99^*

TracoPower THN 15-2413WIR DC/DC converter (print) 24 V DC +15 V DC 1 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371582

Available soon

Conrad Electronic

+15 V DC

36 V DC

1 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 61.99^*

TracoPower THN 15-2415WIR DC/DC converter (print) 24 V DC +24 V DC 625 mA 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371583

Available soon

Conrad Electronic

+24 V DC

36 V DC

625 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 57.99^*

TracoPower DC/DC converter (print) 24 V DC +12 V DC 1.3 A 15 W No. of outputs: 1 x Content 10 pc(s)

Item no:2792347

Unavailable

Conrad Electronic

+12 V DC

36 V DC

1.3 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

TracoPower DC/DC converter (print) 24 V DC +12 V DC, -12 V DC 625 mA 15 W No. of outputs: 2 x Content 10 pc(s)

Item no:2792351

Unavailable

Conrad Electronic

+12 V DC

36 V DC

625 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

TracoPower DC/DC converter (print) 24 V DC +15 V DC 1 A 15 W No. of outputs: 1 x Content 10 pc(s)

Item no:2792348

Unavailable

Conrad Electronic

+15 V DC

36 V DC

1 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

TracoPower DC/DC converter (print) 24 V DC +24 V DC 625 mA 15 W No. of outputs: 1 x Content 10 pc(s)

Item no:2792349

Unavailable

Conrad Electronic

+24 V DC

36 V DC

625 mA

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

TracoPower DC/DC converter (print) 24 V DC +3.3 V DC 4.5 A 15 W No. of outputs: 1 x Content 10 pc(s)

Item no:2792346

Unavailable

Conrad Electronic

+3.3 V DC

36 V DC

4.5 A

24 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

Documents & Downloads

Datasheet

Datasheet 3371589 TracoPower THN 15-4811WIR DC/DC converter (print) 48 V DC +5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3371589 TracoPower THN 15-4811WIR DC/DC converter (print) 48 V DC +5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3371589 TracoPower THN 15-4811WIR DC/DC converter (print) 48 V DC +5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Description

4:1 input range, according to EN 50155 and EN 61373 approvals for railways. Permanent short circuit and low-voltage cut-off, remote on/off. Output voltage can be set Input filter to EN 55011, class A.
