Name: TracoPower TMR 2-2411WI DC/DC converter (print) 24 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 156629
Availability: InStock

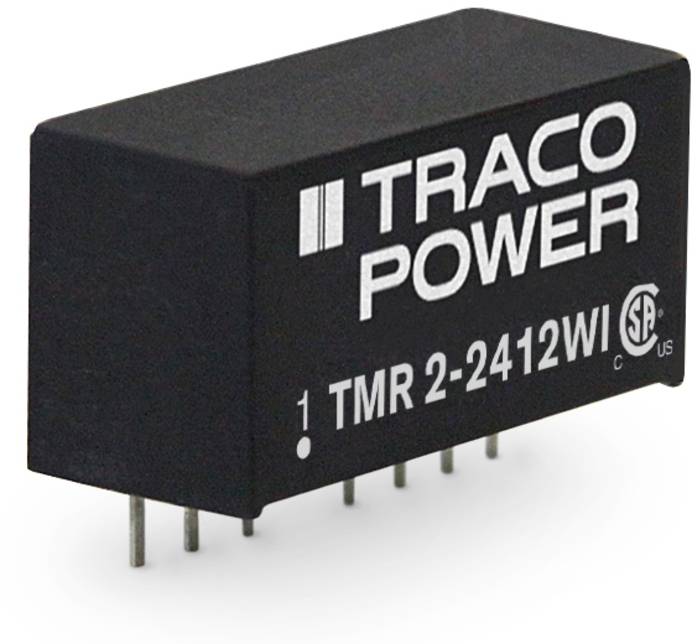

A Traco Power module with the label 'TMR 2-2412WI', a black rectangular housing and protruding connection pins.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TMR 2-2411WI

Nominal voltage: 24 V DC

Min. input voltage: 9 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 400 mA

Output current (max.) - rounded: 400 mA

Efficiency (max.): 80 %

: 2 W

Insulation voltage: 1500 V DC

Enclosure: SIL

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 75 °C

Dim: (L x W x H) 26 x 9.3 x 12.5 mm

Height: 12.5 mm

Length: 26 mm

Width: 9.3 mm

Content: 1 pc(s)

: 2 W

Output voltage: 5 V DC

Output current (details): 400 mA

Type: TMR 2 Series

Operating temperature: -40 - +75 °C

Insulation voltage: 1500 V DC

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 156629 TracoPower TMR 2-2411WI DC/DC converter (print) 24 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 156629 TracoPower TMR 2-2411WI DC/DC converter (print) 24 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)

Description

The TMR 2WI series are DC/DC-converters with 2 W output power, regulated outputs and an ultra-wide 04:01 input range of 9-36 VDC or 18-75 VDC. These are placed in an ultra-compact SIL-9 plastic casing. The very high degree of efficiency of 84% enables a working temperature range of –40 °C to +75 °C at full load. Other features are the external on/off function and the short-circuit resistance. Typical applications for these ultra-compact converters are in the field of battery-operated devices, decentralized power supplies in industrial and communication systems, in short in all the cases where the space on the circuit board is extremely limited.
