Name: TracoPower TMR 6-1212 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 1086512
Availability: InStock

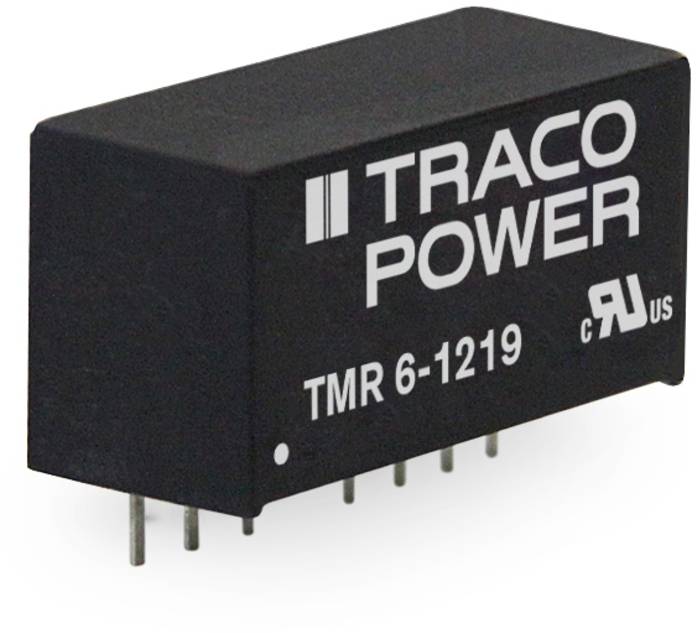

Compact Traco Power voltage converter TMR 6-1219 with multiple connection pins, suitable for electronic circuits.

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC-DC Converter, 6 W, 12 V/12 V

Highest power density in ultra-compact SIP-8 package
Wide 2:1 input voltage range
Smallest footprint 6W converter
Full SMD design
Temperature range –40° to +65°C
High efficiency
Indefinite short-circuit protection
I/O isolation 1500 VDC
Remote On/Off control
Fully RoHS compliant
3-year product warranty

Technical specifications

Input voltage range: 9-12 V
Output voltage: 12 V
Output current: 500 mA
Power: 6 Watt
Efficiency: 85 %
Regulation: Input variation: 0.2 % max., Load variation (0-100%): 1.0 % max
Ripple and noise: <50 mVpk-pk (20 MHz bandwidth)
Short circuit protection: indefinite, automatic recovery
Operating temperature range:-40°C to +65°C (without derating)
Safety standards: UL/cUL 60950-1, IEC/EN 60950-1

Product type: DC/DC converter (print)

Type: TMR 6-1212

Nominal voltage: 12 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 76 V DC

No. of outputs: 1 x

Output voltages: 12 V DC

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 85 %

: 6 W

Enclosure: SIL 8

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 65 °C

Dim: (L x W x H) 9.1 x 21.8 x 15.3 mm

Height: 15.3 mm

Length: 9.1 mm

Width: 21.8 mm

Weight: 4.8 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Enclosure

Input voltage (max.)

Output current (max.) - rounded

Nominal voltage

Min. input voltage

TracoPower TMR 6-1212 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086512

Fast track dispatch on Fri 16 Oct

9 Piece(s)Conrad Electronic

This article

12 V DC

SIL 8

76 V DC

500 mA

12 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

TracoPower TMR 6-0510 DC/DC converter (print) 5 V DC 3.3 V DC 1.3 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086498

Available soon

Conrad Electronic

3.3 V DC

SIL 8

9 V DC

1.3 A

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

TracoPower TMR 6-0512 DC/DC converter (print) 5 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086501

Fast track dispatch on Fri 16 Oct

9 Piece(s)Conrad Electronic

12 V DC

SIL 8

72 V DC

500 mA

5 V DC

17 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

TracoPower TMR 6-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370076

Available soon

Conrad Electronic

15 V DC

SIL 8

9 V DC

400 mA

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 27.99^*

TracoPower TMR 6-0515 DC/DC converter (print) 5 V DC 24 V DC 250 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086503

Fast track dispatch on Fri 16 Oct

33 Piece(s)Conrad Electronic

24 V DC

SIL 8

9 V DC

250 mA

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

TracoPower TMR 6-0522 DC/DC converter (print) 5 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:1086505

Fast track dispatch on Fri 16 Oct

6 Piece(s)Conrad Electronic

12 V DC

SIL 8

9 V DC

250 mA

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TMR 6-0523 DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 200 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Item no:1086506

Fast track dispatch on Fri 16 Oct

10 Piece(s)Conrad Electronic

15 V DC

SIL 8

9 V DC

200 mA

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TMR 6-1210 DC/DC converter (print) 12 V DC 3.3 V DC 1.3 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:3370078

Available soon

Conrad Electronic

3.3 V DC

SIL 8

18 V DC

1.3 A

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 27.99^*

TracoPower TMR 6-1211 DC/DC converter (print) 12 V DC 5 V DC 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086508

Fast track dispatch on Fri 16 Oct

11 Piece(s)Conrad Electronic

5 V DC

SIP 8

18 V DC

1.2 A

12 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

TracoPower TMR 6-1213 DC/DC converter (print) 12 V DC 15 V DC 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1086515

Fast track dispatch on Fri 16 Oct

7 Piece(s)Conrad Electronic

15 V DC

SIL 8

75 V DC

400 mA

12 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

Documents & Downloads

Datasheet

Datasheet 1086512 TracoPower TMR 6-1212 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1086512 TracoPower TMR 6-1212 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1086512 TracoPower TMR 6-1212 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Description

The TMR-6 series is a new family of isolated 6W dc-dc converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a ultra-compact SIP-8 plastic package with a small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40° to +65°C operation temperatures. Further features include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
