Name: TracoPower TMR 9-4819WI DC/DC converter (print) 48 V DC 9 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 3371320
Availability: BackOrder

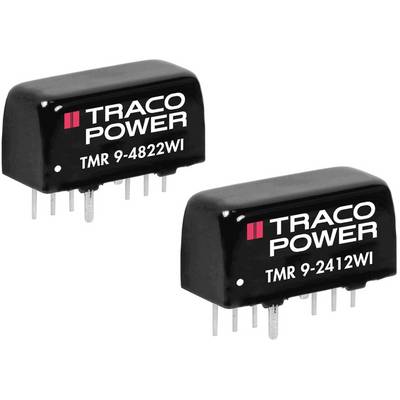

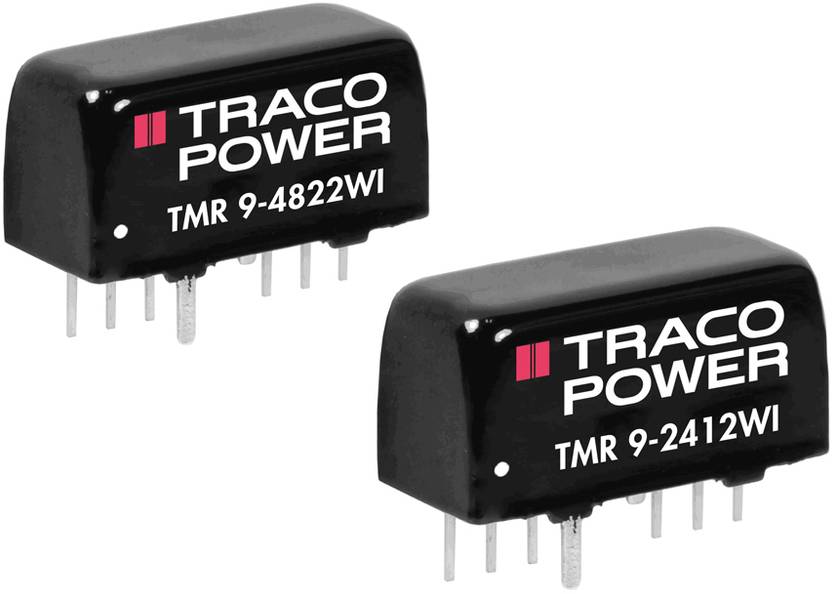

'Two black TRACO POWER voltage converters with the designations TMR 9-4822WI and TMR 9-2412WI, showing their electrical connections.'

Datasheet (PDF)

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 49.99 / piece)

€ 499.90

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TMR 9-4819WI

Nominal voltage: 48 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Output voltages: 9 V DC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Efficiency (max.): 90 %

: 9 W

Insulation voltage: 1600 V DC

Enclosure: SIP 8

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 21.8 x 15.3 x 9.6 mm

Height: 9.6 mm

Length: 21.8 mm

Width: 15.3 mm

Output voltage (max.): 9 V DC

Output voltage (min.): 9 V DC

Weight: 5.9 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Nominal voltage

Output current (max.) - rounded

Output voltage (max.)

Output voltages

TracoPower TMR 9-2410WI DC/DC converter (print) 24 V DC 3.3 V DC 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371293

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

2 A

3.3 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower TMR 9-2411WI DC/DC converter (print) 24 V DC 5 V DC 1.6 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371295

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

1.6 A

5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 48.99^*

TracoPower TMR 9-2412WI DC/DC converter (print) 24 V DC 12 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371297

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

1 A

12 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower TMR 9-2413WI DC/DC converter (print) 24 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371299

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

600 mA

15 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 49.99^*

TracoPower TMR 9-2415WI DC/DC converter (print) 24 V DC 24 V DC 375 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371301

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

375 mA

24 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

TracoPower TMR 9-2419WI DC/DC converter (print) 24 V DC 9 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371303

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

1 A

9 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

TracoPower TMR 9-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)

Item no:3371305

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

800 mA

5 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 45.99^*

TracoPower TMR 9-2422WI DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 375 mA 9 W No. of outputs: 2 x Content 1 pc(s)

Item no:3371307

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

375 mA

12 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 51.99^*

TracoPower TMR 9-2423WI DC/DC converter (print) 24 V DC 15 V DC, -15 V DC 300 mA 9 W No. of outputs: 2 x Content 1 pc(s)

Item no:3371308

Available soon

Conrad Electronic

36 V DC

9 V DC

24 V DC

300 mA

15 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 51.99^*

TracoPower TMR 9-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:3371310

Available soon

Conrad Electronic

75 V DC

18 V DC

48 V DC

2 A

3.3 V DC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 47.99^*

Documents & Downloads

Datasheet

Datasheet 3371320 TracoPower TMR 9-4819WI DC/DC converter (print) 48 V DC 9 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3371320 TracoPower TMR 9-4819WI DC/DC converter (print) 48 V DC 9 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3371320 TracoPower TMR 9-4819WI DC/DC converter (print) 48 V DC 9 V DC 1 A 9 W No. of outputs: 1 x Content 1 pc(s)

Description

4:1 input range, high power density in the SIP8-casing, input/output insulation 1600 V/DC, short-circuit proof, excellent control properties, external on/off.

This text is machine translated.

Description

4:1 input range, high power density in the SIP8-casing, input/output insulation 1600 V/DC, short-circuit proof, excellent control properties, external on/off.
