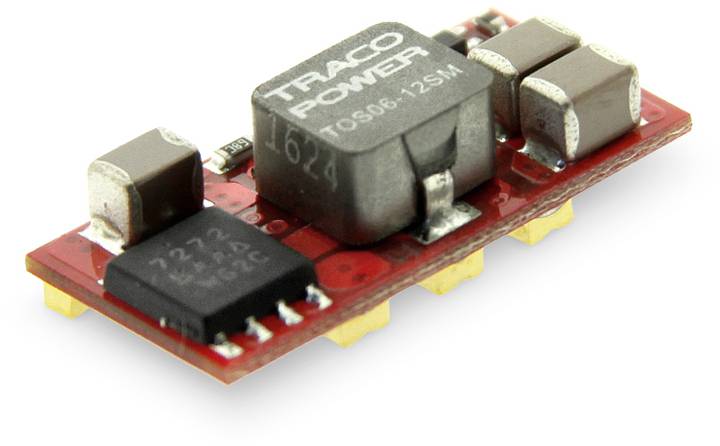

TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 21.00
30
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 21.00 / piece)
€
Highlights & Details
TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
- 3-year manufacturer's guarantee
Technical specifications
- Control deviations: input change ±0.3 %, load change ±0.4 %
- Ripple: (Input 5/12 V/DC) 50/75 mVpk-pk (20 MHz bandwidth)
- Type
TOS 06-05SM
- Nominal voltage
5 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A
- Efficiency (max.)
94 %
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 20.3 x 11.4 x 5.97 mm
- Height
5.97 mm
- Length
20.3 mm
- Width
11.4 mm
- Content
1 pc(s)
- Type
TOS Series
- Operating temperature
(Note derating) -40 to +85 °C
- Product type
DC/DC converter (component)
Documents & Downloads
Datasheet
Datasheet 3370012 TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370012 TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370012 TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370012 TracoPower TOS 06-05SM DC/DC converter (component) 5 V DC 5 V DC 6 A No. of outputs: 1 x Content 1 pc(s)
Description
High power density, adjustable output voltage and a very high degree of efficiency. Fast transient settling time, low voltage cut-off, remote on/off.
