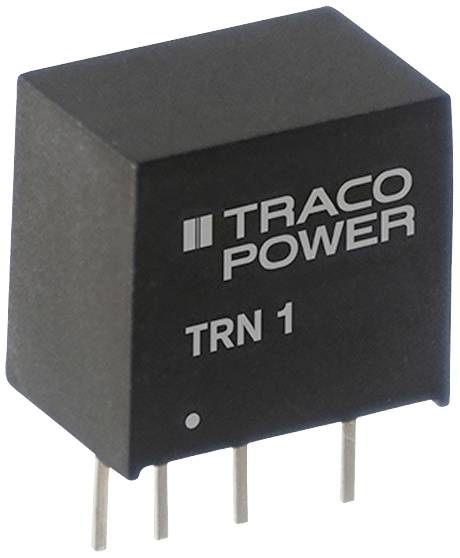

TracoPower TRN 1-4815 DC/DC converter (print) 48 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 10.92
30
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 10.92 / piece)
€
Technical specifications
- Type
TRN 1-4815
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
+24 V DC
- Max. output current
45 mA
- Output current (max.) - rounded
45 mA
- Efficiency (max.)
81 %
1 W
- Insulation voltage
1600 V DC
- Enclosure
SIL
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 7.7 x 11.9 x 15.1 mm
- Height
15.1 mm
- Length
7.7 mm
- Width
11.9 mm
- Content
1 pc(s)
- Output current (min.)
0 mA
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Weight
2.1 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3371627 TracoPower TRN 1-4815 DC/DC converter (print) 48 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371627 TracoPower TRN 1-4815 DC/DC converter (print) 48 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371627 TracoPower TRN 1-4815 DC/DC converter (print) 48 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371627 TracoPower TRN 1-4815 DC/DC converter (print) 48 V DC +24 V DC 45 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact SIL-casing (11.9 mm x 7.7 mm x 11.0 mm), 2:1 input range. Exactly regulated output voltage, short-circuit proof.
