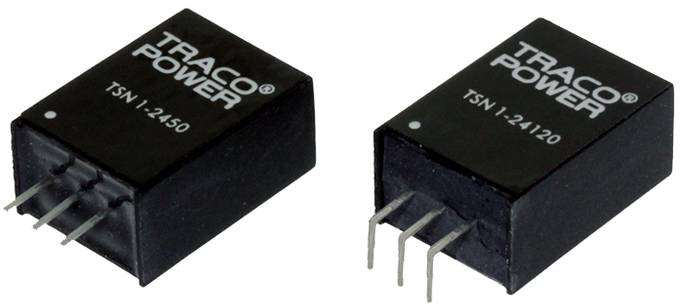

TracoPower TSN 1-2452 DC/DC converter (print) 12 V DC 12 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 16.80
30
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 16.80 / piece)
€ 168.00
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TSN 1-2452
- Nominal voltage
12 V DC
- Min. input voltage
12 V DC
- Input voltage (max.)
12 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
-1 A
- Efficiency (max.)
92 %
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 11.7 x 20.6 x 11.6 mm
- Height
11.6 mm
- Length
11.7 mm
- Width
20.6 mm
- Output voltage (max.)
-5.2 V DC
- Output voltage (min.)
-5.2 V DC
- Weight
3.1 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371492 TracoPower TSN 1-2452 DC/DC converter (print) 12 V DC 12 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371492 TracoPower TSN 1-2452 DC/DC converter (print) 12 V DC 12 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371492 TracoPower TSN 1-2452 DC/DC converter (print) 12 V DC 12 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371492 TracoPower TSN 1-2452 DC/DC converter (print) 12 V DC 12 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Description
Not insulated converter for the negative output, pin-compatible with LM79xx-linear regulators. Protection against overload, short-circuit and overheating. Excellent behavior in the case of input and load change, low standby current.
