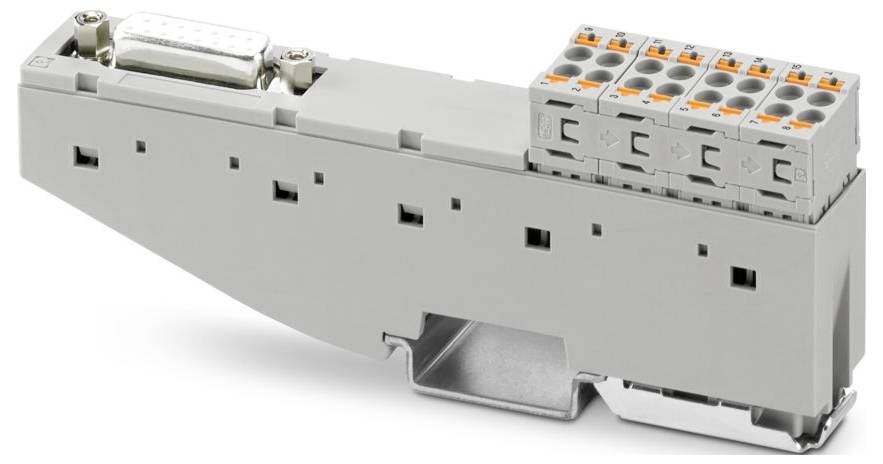

Transfer module Phoenix Contact 1278824 VFC-PT/D15SUB/F Content: 1 pc(s)
Product type
Transfer module
Total no. of pins
15
Connection
D-Sub power strip
Push-in spring-loaded terminal
Mounting type
Carry rail mounting
AWG
24 - 16
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: VARIOFACE Front Connect
- Number of pins: 16
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²;0.25 mm² ... 1.5 mm² (wire-end sleeve without plastic sleeve);0.25 mm² ... 1.5 mm² (wire-end sleeve with plastic sleeve)
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 18.9 mm
- Height: 127.2 mm
- Depth: 46.85 mm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C (≤ 2000 m);-40 °C ... 63 °C (2001 m - 3000 m )
- Altitude: ≤ 3000 m.
- Standards/regulations: DIN EN 60664-1
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Stripped length: 10 mm
- Air and creepage distances: Air and creepage distances
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- LABELING: CSA C22.2 NO. 61010-2-201
- UL, USA / Canada: UL, USA / Canada
- Connection according to standard IEC 60807-2;DIN 41652
- Article dimensions: Article dimensions
- Insulation: Functional insulation
- Rated insulation voltage 63 V
- Rated surge voltage 0.8 kV (1.2 / 50 μs)
- Protection class (installation location): IP54 (installation location)
- CSA, USA/Canada: CSA, USA/Canada
- Number of connections: 1
- Insulation properties: Air and creepage distances: Insulation properties: Air- and creepage distances
- Field level: Field level
- Control level: Control level
- Max. Permissible current: 2 A (per branch)
- Max. Permissible operating voltage 30 V AC ;60 V DC
- Product type
Transfer module
- Total no. of pins
15
- Connection
D-Sub power strip
Push-in spring-loaded terminal
- Mounting type
Carry rail mounting
24 - 16
- Dim
(L x W x H) 46.85 x 18.9 x 127.2 mm
- Content
1 pc(s)
- Number of pins
15
- Width
18.9 mm
- Height
127.2 mm
- Length
46.85 mm
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
46.85 mm
- Test current
2 A
- Rated voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583779 Transfer module Phoenix Contact 1278824 VFC-PT/D15SUB/F Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3583779 Transfer module Phoenix Contact 1278824 VFC-PT/D15SUB/F Content: 1 pc(s)
Description
VARIOFACE Front Connect, 1:1 D-SUB-transfer module with push-in front connections and D-SUB socket strip, number of poles: 15, width: 19 mm
