Transfer module Phoenix Contact 2975900 UMK- EC56/56-XOR Content: 1 pc(s)
Product type
Transfer module
Total no. of pins
56
AWG
24 - 12
Stripping length (max.)
8 mm

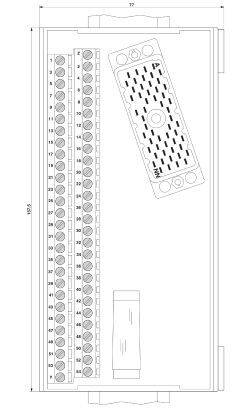

Dim
(L x W x H) 57.5 x 157.5 x 77 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- All mounting positions permitted
- Screw thread: M3
- Protection class: IP20
- NOMINAL VOLTAGE UN 125 V AC/DC
- Max. Permissible current (all branches): 28 A (56 branches with 0.5 A each)
- Mounting instructions: Can be aligned without distance
- Pollution level: 2
- Overvoltage category II
- Product type
Transfer module
- Total no. of pins
56
24 - 12
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 57.5 x 157.5 x 77 mm
- Connector (field)
Screws
- Connector (control)
ELCO connector
- Operating current
1.5 A
- Content
1 pc(s)
- Number of pins
56
- Width
157.5 mm
- Height
77 mm
- Length
57.5 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136671 Transfer module Phoenix Contact 2975900 UMK- EC56/56-XOR Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136671 Transfer module Phoenix Contact 2975900 UMK- EC56/56-XOR Content: 1 pc(s)
Description
Transfer module; connection 1: Screw connection; connection 2: 1x ELCO connector (56-pin) (pin strip type 8016, right)
