Name: TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail
Brand: TrendNet
SKU: 3798835

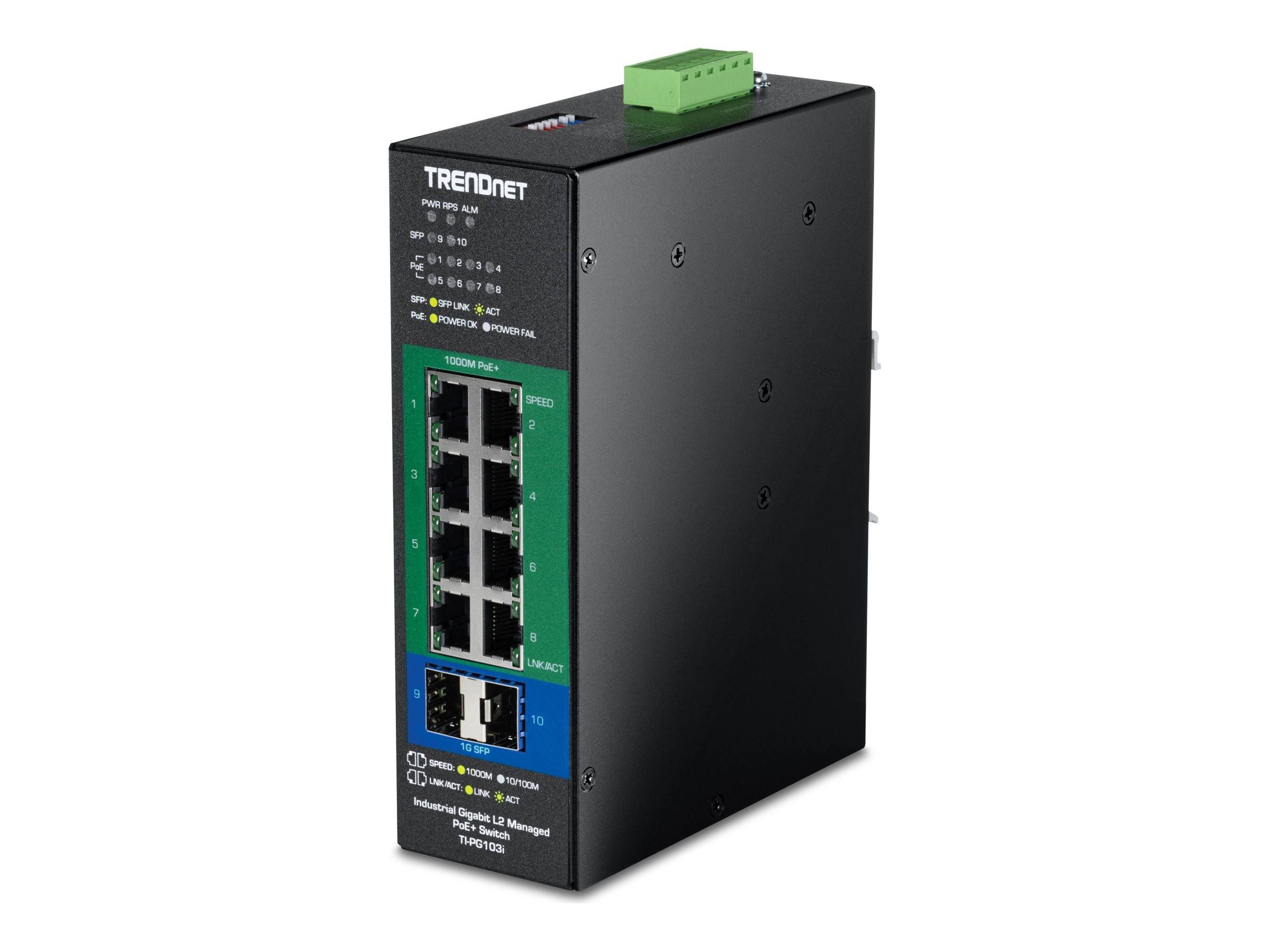

TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail-0

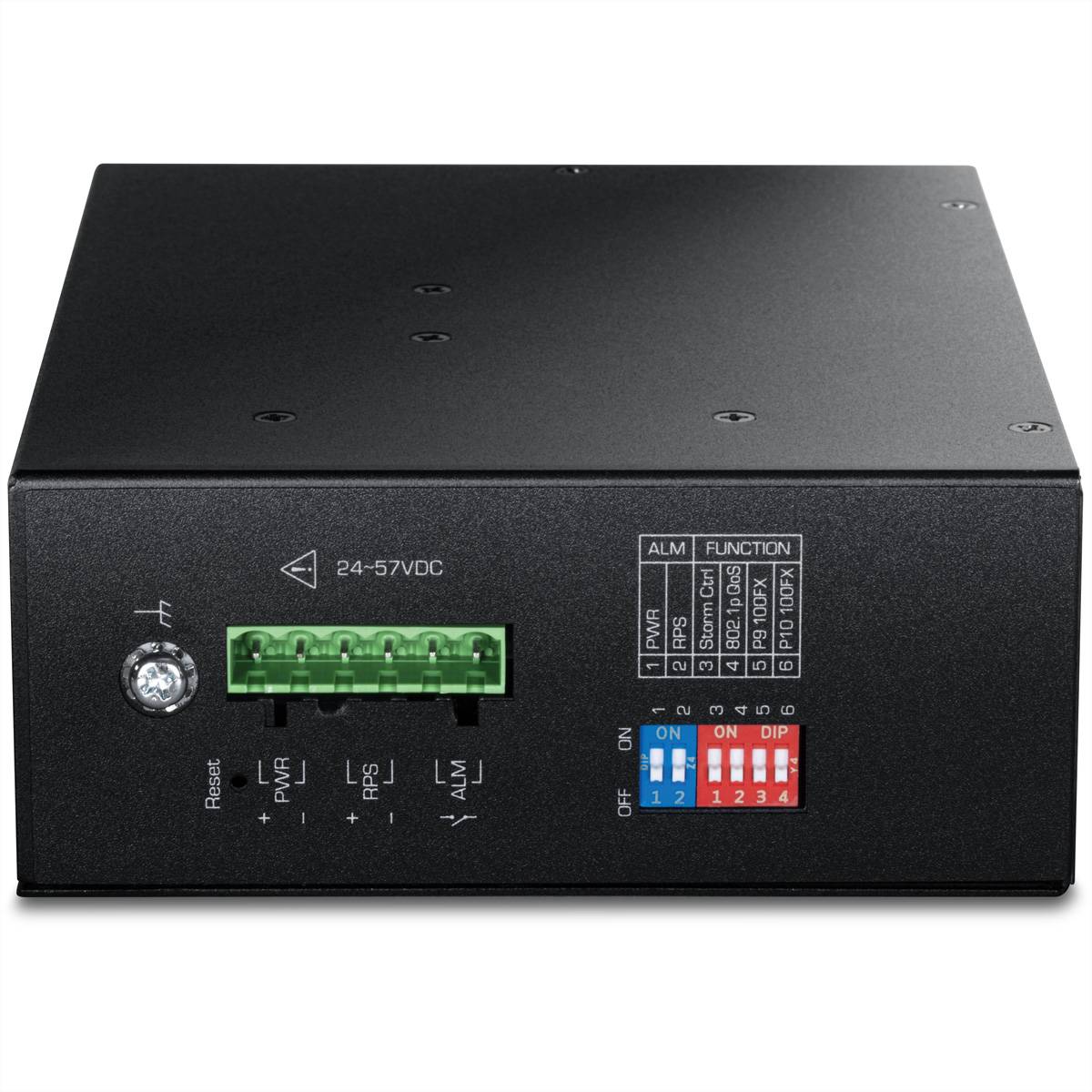

TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail-1

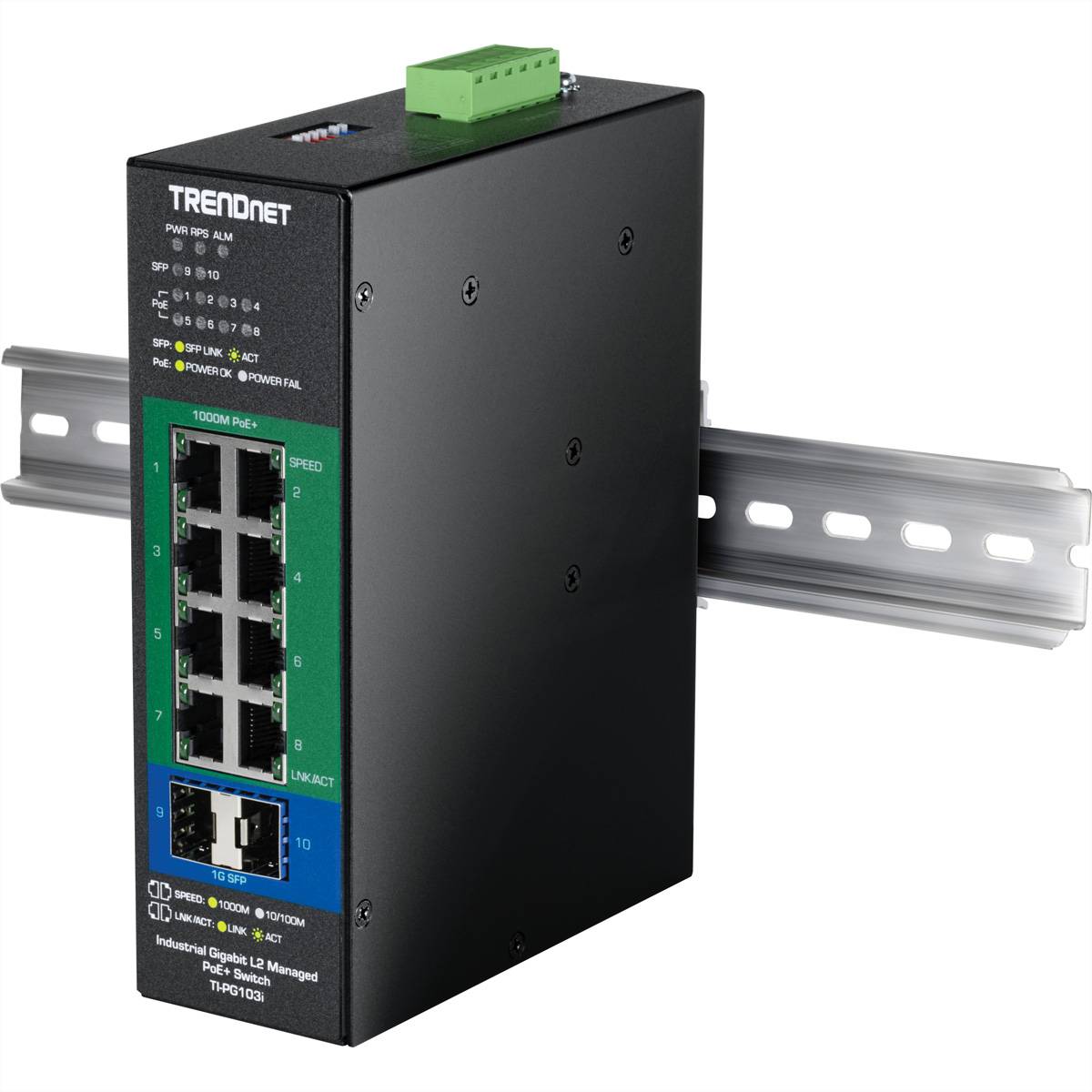

TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail-2

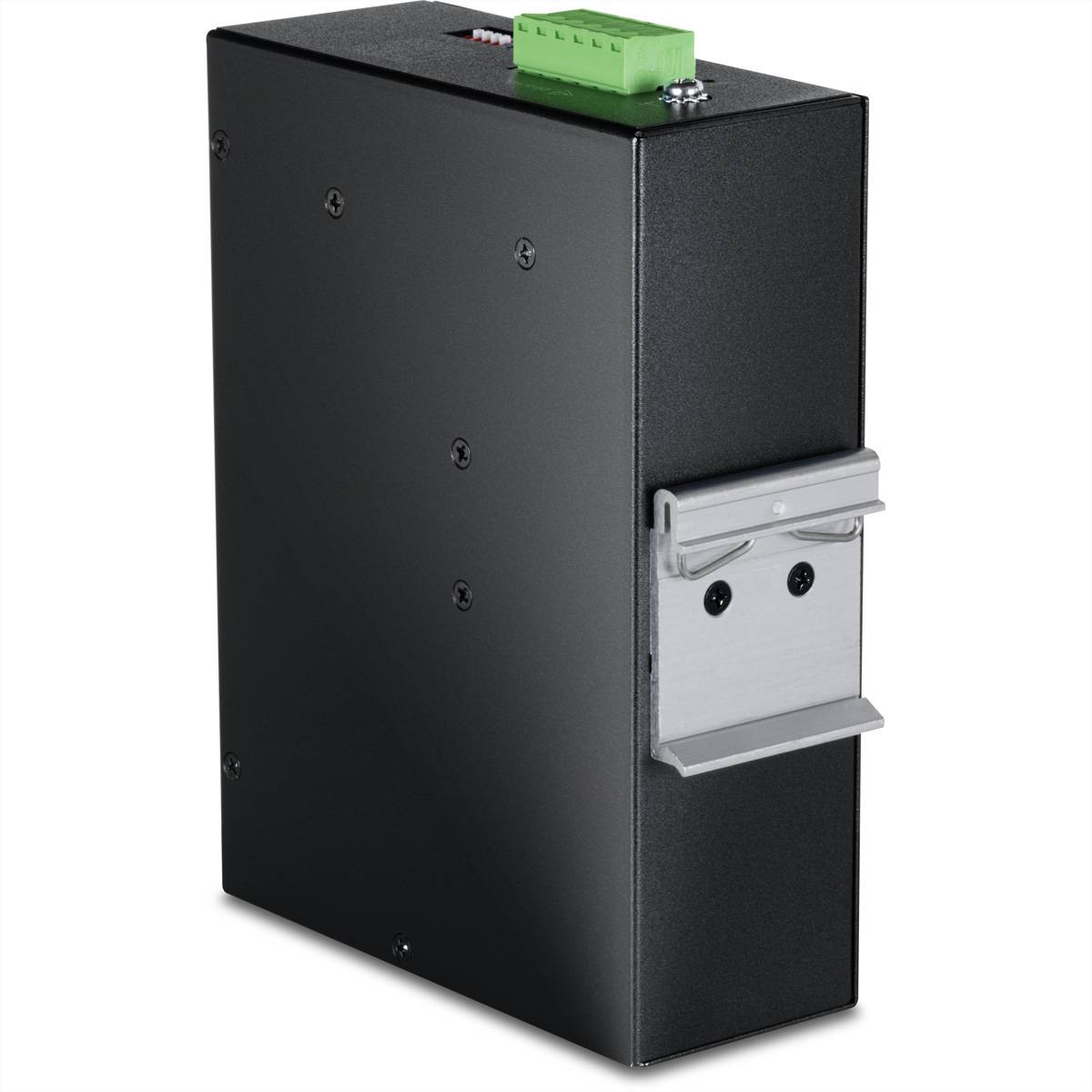

TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail-3

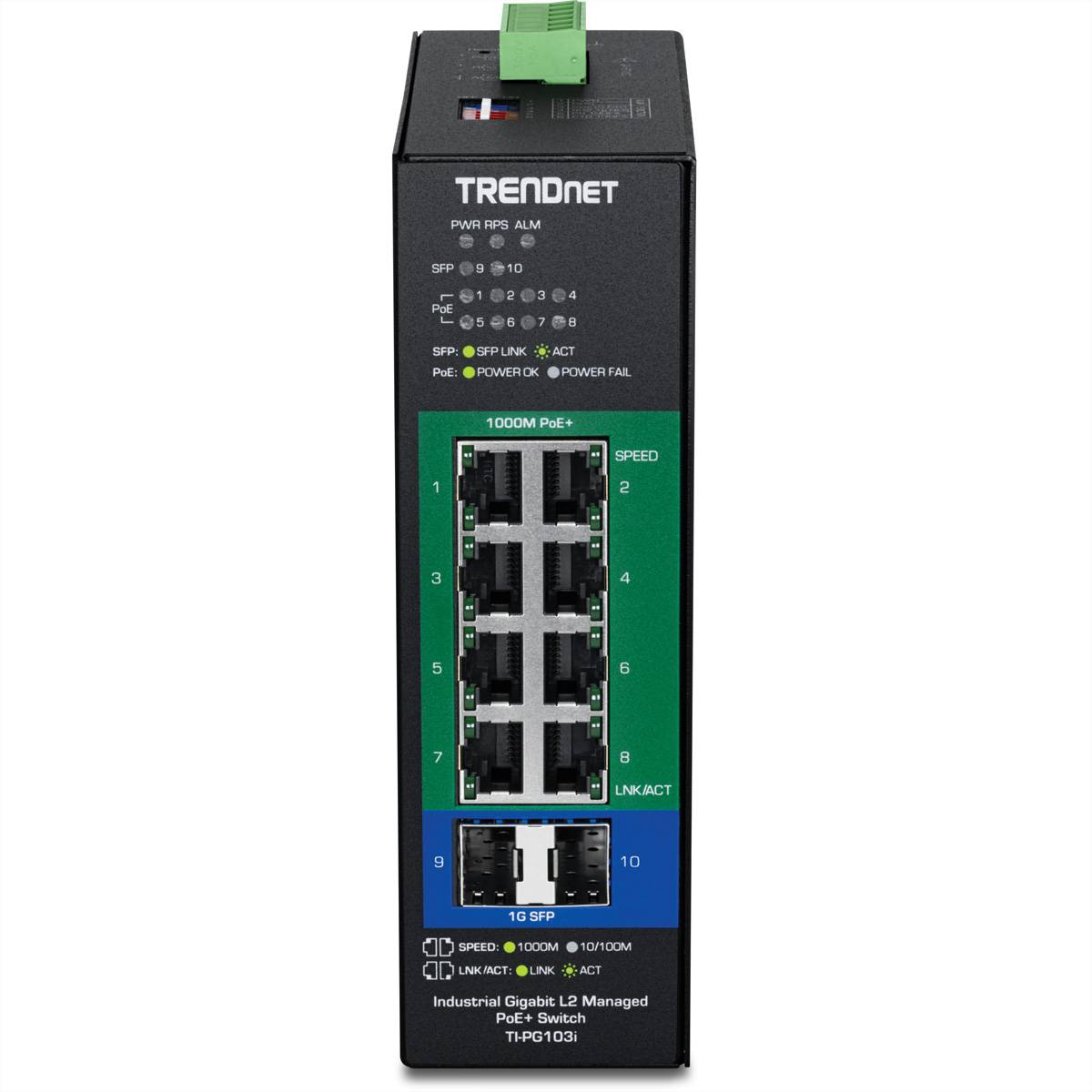

TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TrendNet TI-PG103I Network Switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Managed
Number of basic switching RJ-45 Ethernet ports: 8
MAC address table: 8000 entries Routing/switching capacity: 20 Gb/s.
Rack installation
DC/PoE Power over Ethernet (PoE)

Technical specifications

Power source DC / PoE

Product type: Network switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Managed switch

Ethernet ports: 8

SFP ports: 2 x

10/100/1000 Mbps ports: 8 x

Fibre-optic ports: 2

Weight: 930 g

Width: 160 mm

Height: 50 mm

Depth: 120 mm

Type: TRENDnet TI-PG103i 10-Port PoE+ Switch I

Interfaces: RJ45

: IP40

Factory colour: Black

UKCA: yes

DIN rail mounting: yes

Fanless: yes

Operating temperature (T-T): -40 - 75 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 240 W

Packet buffer memory: 128 MB

Switching capacity: 20 Gbit/s

Jumbo frames: 10000

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Power over Ethernet (PoE): yes

Link aggregation: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Reset button: yes

Rack mounting: yes

Mean time between failures (MTBF): 460726 h

MAC address table: 8000 Eintragungen

Number of VLANs: 4094

Spanning tree protocol: yes

VLAN support: yes

10G support: no

Forwarding rate: 14.88 Mpps

Power consumption (max): 253 W

Documents & Downloads

Datasheet

Datasheet 3798835 TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail

User & Safety Instructions

User & Safety Instructions 3798835 TrendNet TI-PG103i 10-port PoE+ switch industrial Gigabit L2 managed DIN-rail

Description

TrendNet's industrial managed Gigabit L2 PoE+ DIN rail switch (10-port), model TI-PG103i, includes eight Gigabit PoE+ ports with a PoE power budget of 240 W and two SFP ports that support both 100Base-FX and 1000Base-FX modules for long-range fiber applications. The hardened network switch with voltage increase is equipped with a metal housing of the protection class IP40. 8x Gigabit PoE+ ports. 2x SFP ports. Supports 100/1000Base-FX SFP fiber modules. PoE total power: 240Watt@48VDC or 124Watt@24VDC. PoE Alive Check restarts non-responsive PoE-powered devices. Cloud remote management with TrendNet hive (for an additional fee). 20 Gbps switching capacity. Hardened metal housing of the protection class IP40. With DIN-rail mounting bracket. Operating temperature from -40° C to 75° C (-40° F to 167° F). Supports LACP, STP/RSTP, VLAN, and IGMP snooping. IEEE 802.1p QoS with queue planning. Bandwidth control for each port Dual redundant power supplies with overload protection. Alarm in case of power failure. Power supply available separately (model: TI-S24048, TI-S48048, TI-S24052, TI-S15052)
