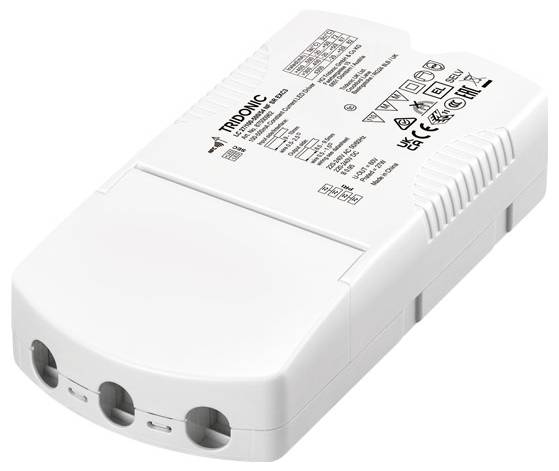

Tridonic LC 27W 100-500mA 54V NF SR EXC LED driver Constant current 27 W 0.5 A 27 - 54 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LC 27W 100-500mA 54V NF SR EXC
- Constant current
- 27 - 54 V
- 0.5 A
Technical specifications
- Number of max. B16 circuit breakers: 89
- Number of max. at C16 circuit breakers: 89
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 160 x 82 x 34 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
27 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
27 W
- No. of outputs
1 x
- Output current (min.)
0.5 A
- Power range
27 W (max)
- Width
82 mm
- Height
34 mm
- Length
160 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
84 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435787 Tridonic LC 27W 100-500mA 54V NF SR EXC LED driver Constant current 27 W 0.5 A 27 - 54 V not dimmable 1 pc(s)
Description
Output current selectable, emergency light operation device, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
