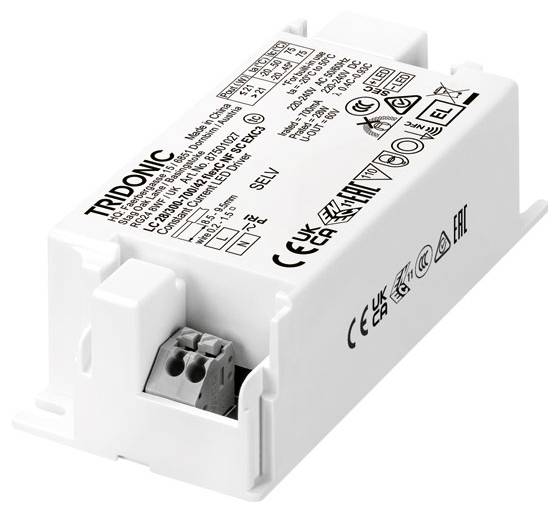

Tridonic LC 28W 300–700mA flexC NFC SC EXC3 LED driver Constant current 28 W 0.7 A 7.5 - 42 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Tridonic LC 14/28/38W flexC NFC SC EXC3
- Constant current
- 7.5 - 42 V
- 0.7 A
Technical specifications
- Number of max. B16 circuit breakers: 75
- Number of max. at C16 circuit breakers: 75
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
7.5 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
28 W
- No. of outputs
1 x
- Output current (min.)
0.7 A
- Power range
28 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435790 Tridonic LC 28W 300–700mA flexC NFC SC EXC3 LED driver Constant current 28 W 0.7 A 7.5 - 42 V adjustable 1 pc(s)
Description
DC-compatible, emergency lighting device, NFC function, selectable output current, programmable output current
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
