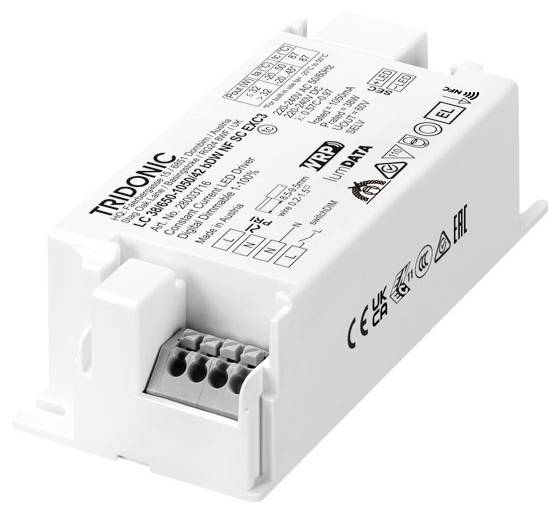

Tridonic LC 38W 650-1050mA 42V bDW NFC SC EXC3 LED driver Constant current 36 W 1.05 A 7.5 - 42 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TRIDONIC LC 14/28/38W BDW NF SC EXC3 LED
- Constant current
- 7.5 - 42 V
- 1.05 A
Technical specifications
- Number of max. B16 circuit breakers: 56
- Number of max. at C16 circuit breakers: 56
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Casambi, push-DIMM
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
7.5 V
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
36 W
- No. of outputs
1 x
- Output current (min.)
1.05 A
- Power range
36 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
87 %
Documents & Downloads
Datasheet
Datasheet 3435720 Tridonic LC 38W 650-1050mA 42V bDW NFC SC EXC3 LED driver Constant current 36 W 1.05 A 7.5 - 42 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435720 Tridonic LC 38W 650-1050mA 42V bDW NFC SC EXC3 LED driver Constant current 36 W 1.05 A 7.5 - 42 V adjustable 1 pc(s)
Description
Output current selectable,NFC function, emergency lighting device, DC compatible, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
