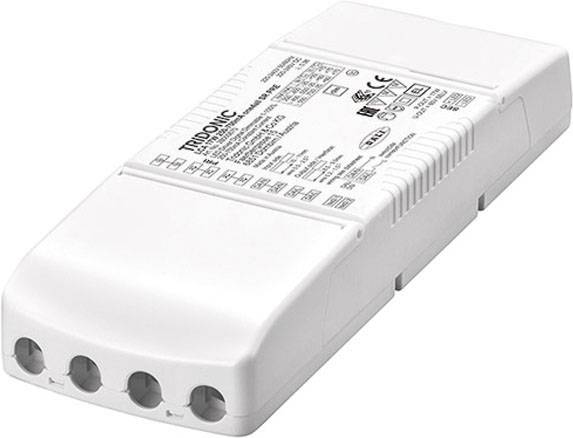

Tridonic Zumtobel Group LED driver Constant voltage, Constant current 17 W 250 - 700 mA 15 - 50 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Tridonic LED driver 250-700mA one4all LCA 17W #28000670
- Constant voltage, Constant current
- 15 - 50 V
- 250 - 700 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 200 x 70 x 31 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
15 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
IP20
- Max. power
17 W
- Type
dynamic
- Output current (min.)
250 mA
- Weight
0.2 kg
- Power (min.)
12.5 W
- Power range
12.5 up to 17 W
- Width
70 mm
- Height
31 mm
- Length
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2338886 Tridonic Zumtobel Group LED driver Constant voltage, Constant current 17 W 250 - 700 mA 15 - 50 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
