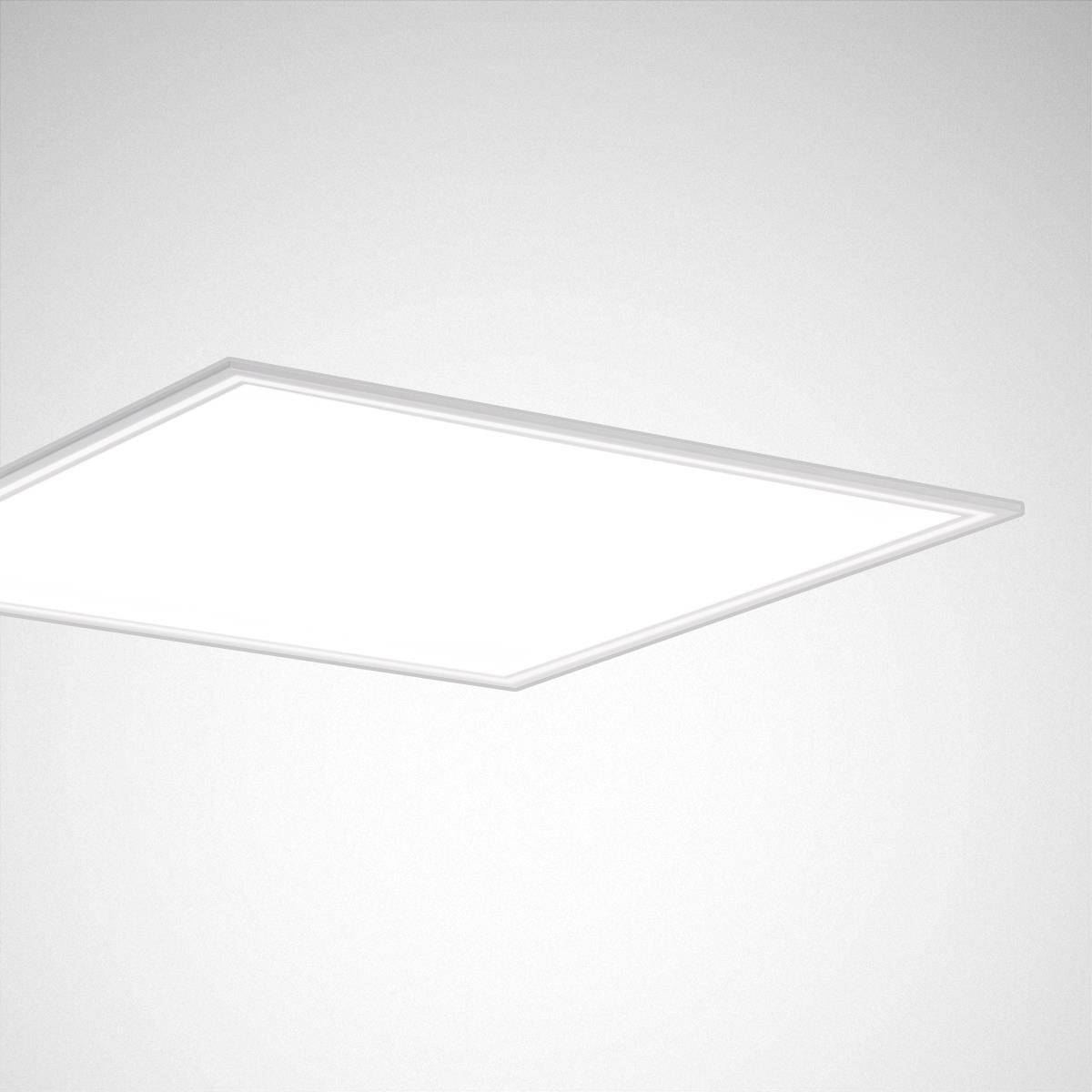

Trilux 7214240 7214240 LED recessed light LED (monochrome) 27 W White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED recessed light white Belviso C1 #7214240
- Power= 27 W Total luminous flux= 3900 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle: Wide radiation 41-80°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 70000 h
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 41
- Protection class (IP) IP20
- Protection class (NEMA): Other
- Impact strength: IK06
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -20..25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Coverage of lights possible with heat insulation material: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 27 W
- Light output 144 lm/W
- Rated light current according to IEC 62722-2-1: 3900 lm
- Light color: White
- Colour temperature: 3000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Strobe effect value SVM: 0.3
- Constant luminous flux regulation: No.
- Width 622 mm
- Height/depth 92 mm
- Length: 622 mm
- Mounting length 580 mm
- Mounting width 580 mm
- Installation height/depth 330 mm
- Type of wiring: Finish
- Number of poles: 3
- Connection type: Plug-in terminal
- S/N ratio (THD): 14
- Photobiological safety according to EN 62471: RG1
- Glare limiter (UGR): 19
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
27 W
27 W
3900 lm
- Total luminous flux
3900 lm
3000 K
- Colour
White
- Type
Square
- Protection screen
Textured
- Light features
Incl. ballast
- Recess length
580 mm
- Recess width
580 mm
- Recess depth
330 mm
- External length
622 mm
- External width
622 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Steel
- Weight
7.6 kg
n.rel.
- Dim
(L x W x H) 622.00 x 622.00 x 92.00 mm
No
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Width
622.00 mm
- Height
92.00 mm
- Length
622.00 mm
- Depth
92 mm
- Rated luminous flux
3900 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3155139 Trilux 7214240 7214240 LED recessed light LED (monochrome) 27 W White
Description
LED panel-mounted light with microprismatic cover CDP. With four integrated LED panels. With all-round, flat light frame. For universal use in sawing installation openings and in system covers with hidden or visible mounting rails. Installation in system ceilings with asymmetrical, concealed mounting rails on request. For system dimension 625 mm x 625 mm, for ceiling cut-out 580 mm x 580 mm, installation depth = 330 mm. With highly efficient CDP microprismatic. Direct radiating. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. Appropriate for screen work according to EN 12464-1 Complete harmonious lighting effect by evenly lit light output. Rated light current 3900 lm, rated power 27.00 W, light output 144 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 70,000 h, average rated life L85(TQ 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate White surface coating (RAL 9016). Dimensions (L x B) 622 x 622 mm, lamp height 92 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test in accordance with IEC 60695-2-11: 650°C. Weighs 7.6 kg With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
This text is machine translated.
This text is machine translated.
