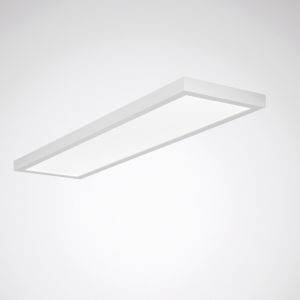

Trilux 8157851 8157851 LED ceiling light LED (monochrome) 36 W White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED attachment lamp 840, DALI, white Siella G5 D3#8157851
- Power= 36 W
- Total luminous flux= 4400 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming touch and dim: Yes
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle: Wide radiation 41-80°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Energy efficiency of the permanently installed light bulb: Other
- Max. Number of lights circuit breaker B16: 14
- Max. Number of lamps line circuit breakers C16: 24
- Protection class (IP) IP20
- Protection class (NEMA): Other
- Impact strength: IK02
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -20..25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- Coverage of lights possible with heat insulation material: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 36 W
- Light output 122 lm/W
- Rated light current according to IEC 62722-2-1: 4400 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Strobe effect value SVM: 0.3
- Constant luminous flux regulation: No.
- Width 313 mm
- Height/depth 46 mm
- Length: 1513 mm
- Number of pins: 5
- Connection type: Plug-in terminal
- S/N ratio (THD): 14
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Dim
(L x W x H) 1513.00 x 313.00 x 46.00 mm
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED ceiling light
- Width
313.00 mm
- Bulb type
LED (monochrome)
- Height
46.00 mm
- Length
1513.00 mm
- Rating per bulb
36 W
- Depth
46 mm
36 W
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
- Weight
6.2 kg
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
4400 lm
4400 lm
- Rated luminous flux
4400 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3149842 Trilux 8157851 8157851 LED ceiling light LED (monochrome) 36 W White
Description
LED ceiling mounted light with prismatic cover For a flush mounting. With deep-wide beam light intensity distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. According to EN 12464-1-2-5 by limited luminance L = 3000 cd/m2 for radiation angle above 65 ° all round. Rated light current 4400 lm, rated power 36.00 W, light output 122 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 50,000 h. Aluminium lamp body White surface coating (RAL 9016). Dimensions (L x B) 1513 x 313 mm, lamp height 46 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test in accordance with IEC 60695-2-11: 650°C. Weighs 6.2 kg With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). Switch and dimmable light using button function with DALI control terminals (Touch DIM). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
This text is machine translated.
This text is machine translated.
