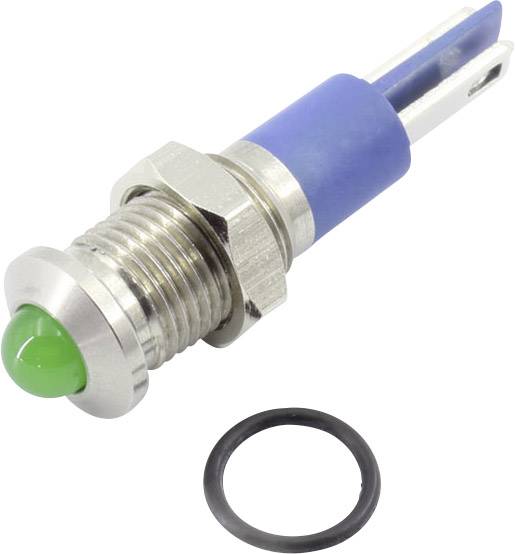

TRU COMPONENTS 1605962 LED indicator light Green 24 V DC/AC 200 mcd
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
24 V DC/AC
Operating current
15 mA
Recess diameter
8 mm
Light intensity I(V)
200 mcd
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
LED indicator
Our service for you
Technical specifications
- Product type
LED indicator light
- Factory colour
Green
- Operating voltage
24 V DC/AC
- Operating current
15 mA
- Recess diameter
8 mm
- Mounting depth
35.5 mm
- Head Ø
9.5 mm
- Head height
4.8 mm
- Front panel thickness
6 mm
- Case colour
Stainless steel
- Mounting type
Screw and union
- Light intensity I(V)
200 mcd
- LED features
External reflector
- Connection
Soldering
- Dim
(Ø x L) 9.5 mm x 34.3 mm
- Length
34.3 mm
- (Ø)
9.5 mm
40000 h
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
