Name: TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 3 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 p
Brand: TRU COMPONENTS
SKU: 3758730
Availability: InStock

Silver metal clip or bracket with a curved spring-like shape and a round hole in the base, shown on a white background.

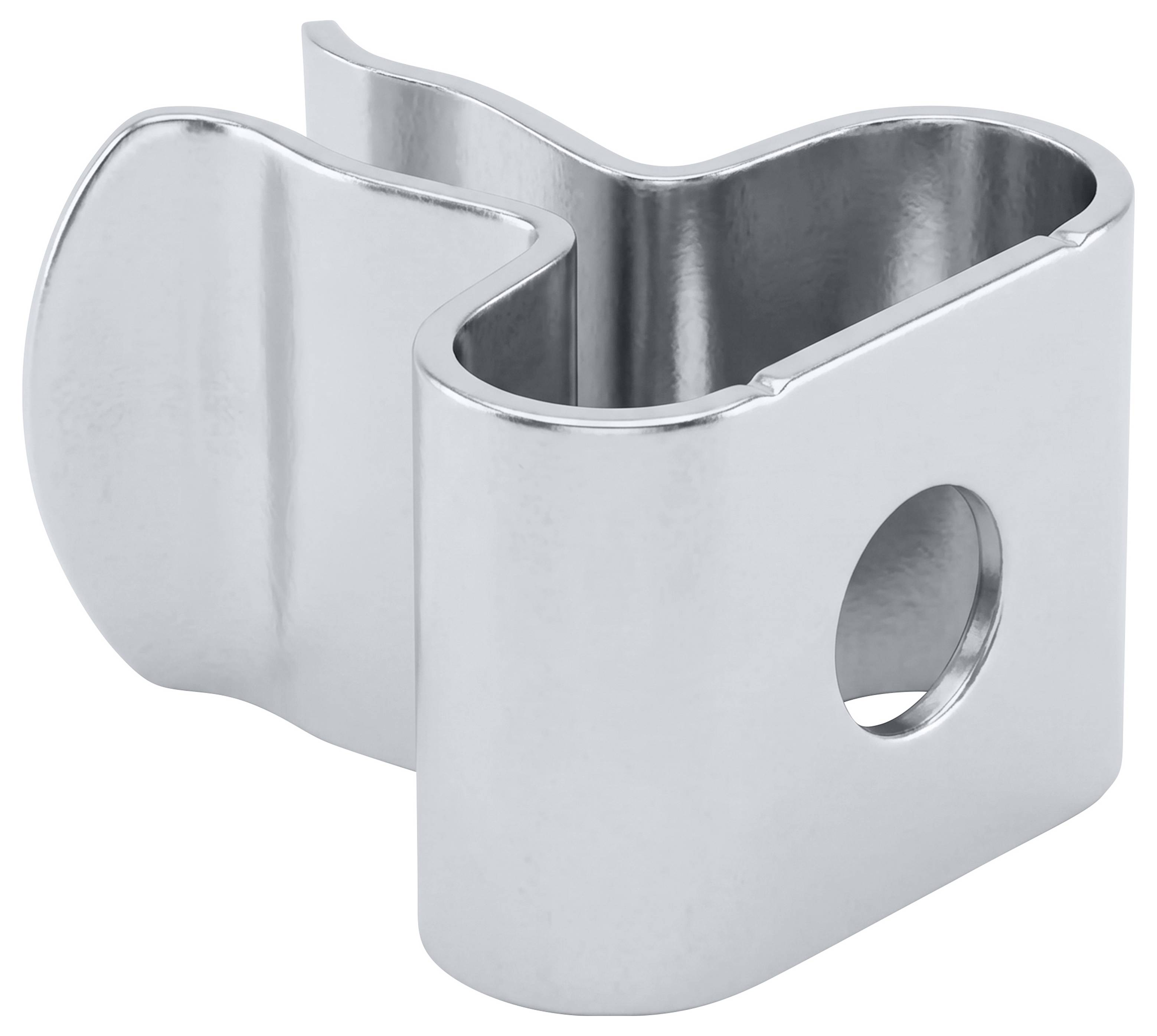

Silver metal clamp bracket with a round bolt hole, shown on a white background.

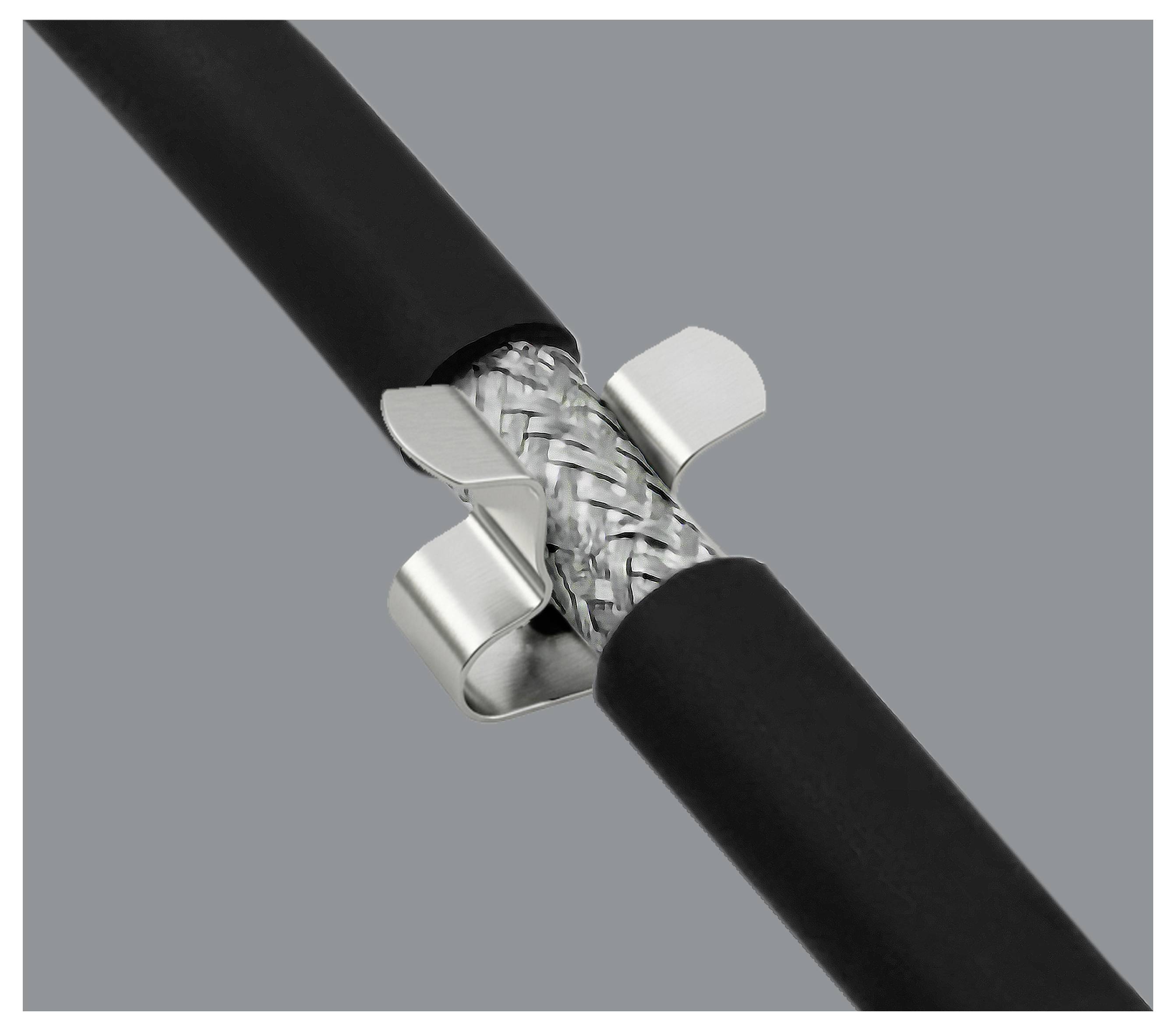

Close-up of a black cable joined by a silver braided metal connector or splice on a gray background.

1/4

Product type

EMC shield clamp

Material

Spring steel, galvanized

Clamp Ø

1.5 mm

Terminal Ø (max.)

3 mm

Mounting hole

3.2 mm

Fast track dispatch on Wed 21 Oct

67 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.63 / piece)

€ 0.63

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS EMC shield clamp 1.5-3 mm

Covered terminal Ø: 1.5 to 3 mm
Mounting hole diameter: 5 mm
1 hole
Material: Galvanized 65Mn spring steel (blue zinc plated)
Board thickness (max.): 0.5 mm

Technical specifications

Clamp Ø range: 1.5-3 mm

Product type: EMC shield clamp

Factory colour: Silver

Material: Spring steel, galvanized

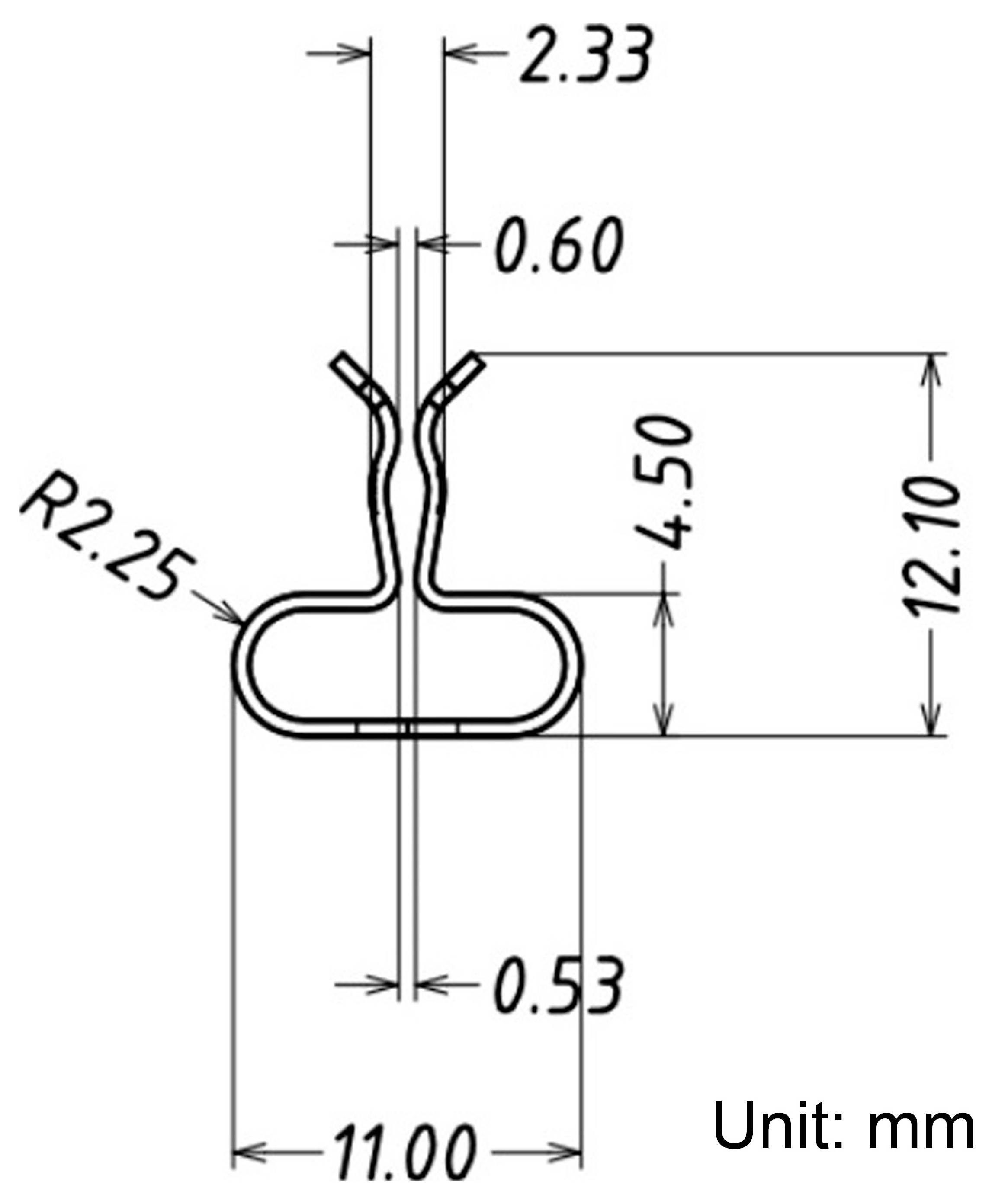

Length: 12.1 mm

Width: 11 mm

Height: 8 mm

Dim: (L x W x H) 12.1 x 11 x 8 mm

Clamp Ø: 1.5 mm

Terminal Ø (max.): 3 mm

Mounting hole: 3.2 mm

Board thickness (max.): 0.5 mm

Min. temperature: -20 °C

Max. temperature: 70 °C

Weight: 1.1 g

Content: 1 pc(s)

Manufacturer part #: TC-15034920

Type: TC-15034920

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Clamp Ø

Terminal Ø (max.)

Mounting hole

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 3 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758730

Fast track dispatch on Wed 21 Oct

67 Piece(s)Conrad Electronic

This article

1.5 mm

3 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.63^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 11 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758727

Fast track dispatch on Wed 21 Oct

78 Piece(s)Conrad Electronic

8 mm

11 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.79^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 17 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758728

Fast track dispatch on Wed 21 Oct

94 Piece(s)Conrad Electronic

11 mm

17 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.83^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 22 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758731

Fast track dispatch on Wed 21 Oct

90 Piece(s)Conrad Electronic

17 mm

22 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.89^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 30 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758734

Fast track dispatch on Wed 21 Oct

96 Piece(s)Conrad Electronic

22 mm

30 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.95^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 37 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758733

Fast track dispatch on Wed 21 Oct

96 Piece(s)Conrad Electronic

30 mm

37 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.29^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 48 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758732

Fast track dispatch on Wed 21 Oct

86 Piece(s)Conrad Electronic

38 mm

48 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.29^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 6 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758726

Fast track dispatch on Wed 21 Oct

47 Piece(s)Conrad Electronic

3 mm

6 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.69^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 8 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758729

Fast track dispatch on Wed 21 Oct

67 Piece(s)Conrad Electronic

6 mm

8 mm

3.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.73^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3758730 TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 3 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 p
