Name: TRU COMPONENTS Pure Set Raspberry Pi® 5 B 8 GB 4 x 2.4 GHz PSU, Housing
Brand: TRU COMPONENTS
SKU: 3062701

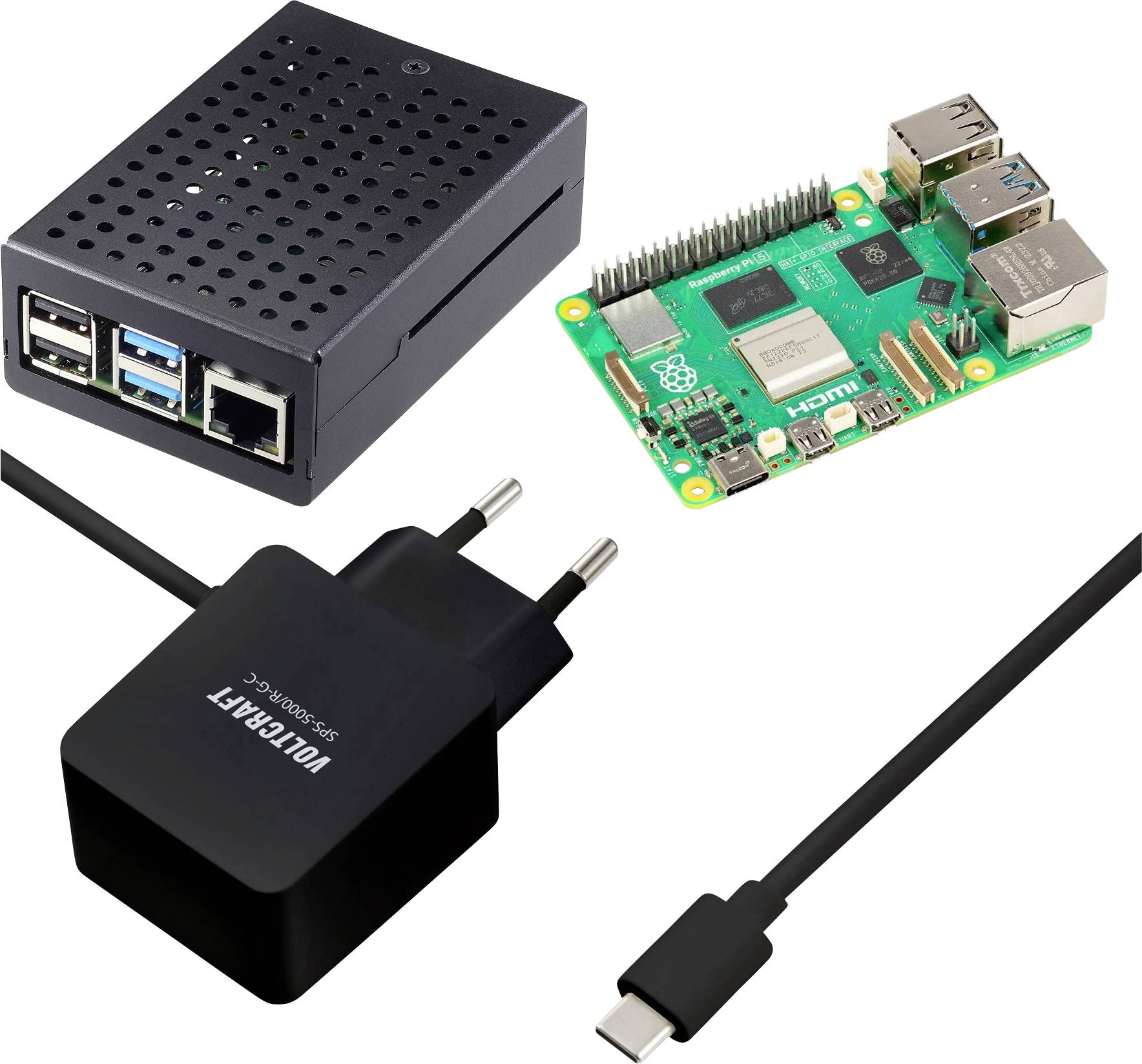

Raspberry Pi starter kit components: Raspberry Pi board, black ventilated case, USB power adapter, and USB-C cable.

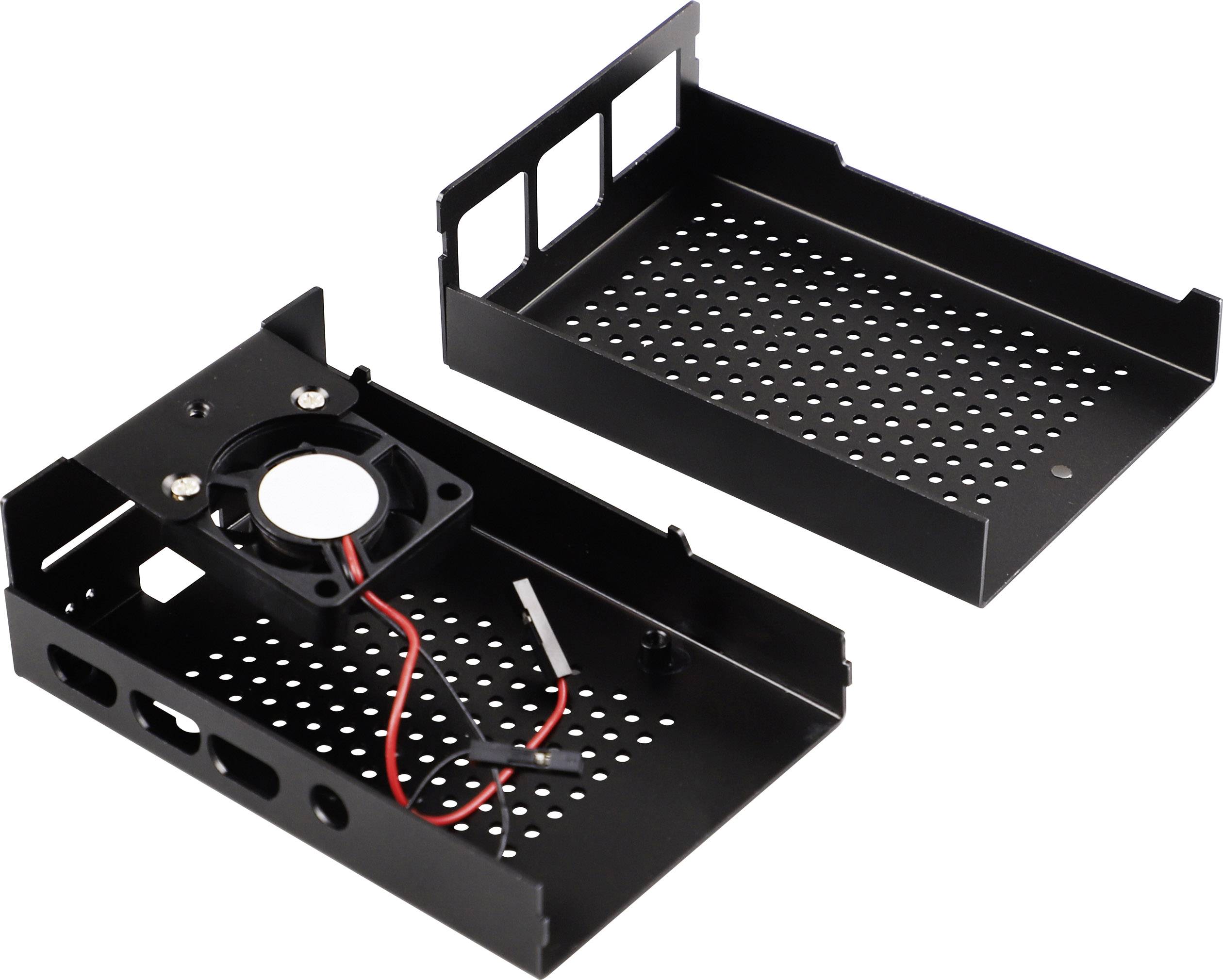

Two black metal computer mounting rails, one with a built-in small fan and red wires, the other without.

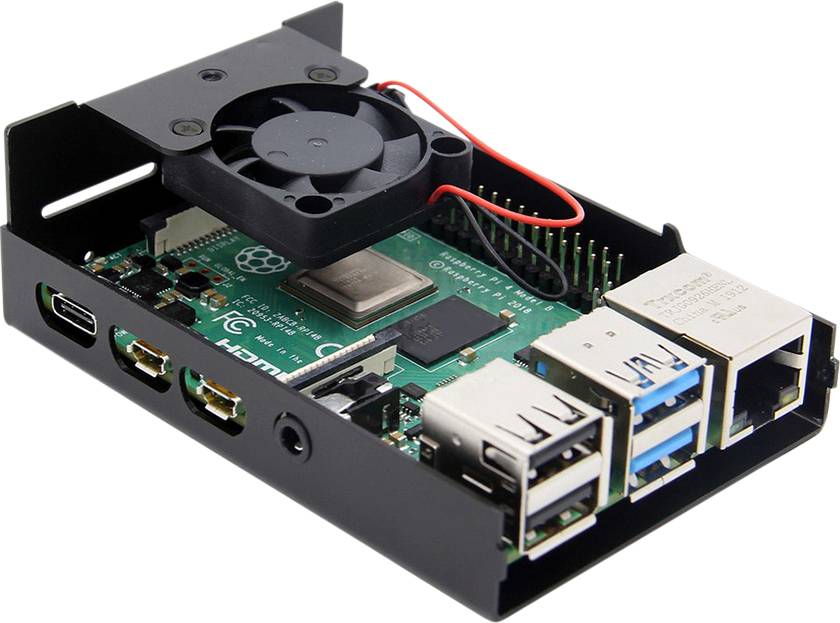

A Raspberry Pi in a case with a fan. Visible are ports for USB, HDMI and Ethernet, along with a cooling system positioned above the board.

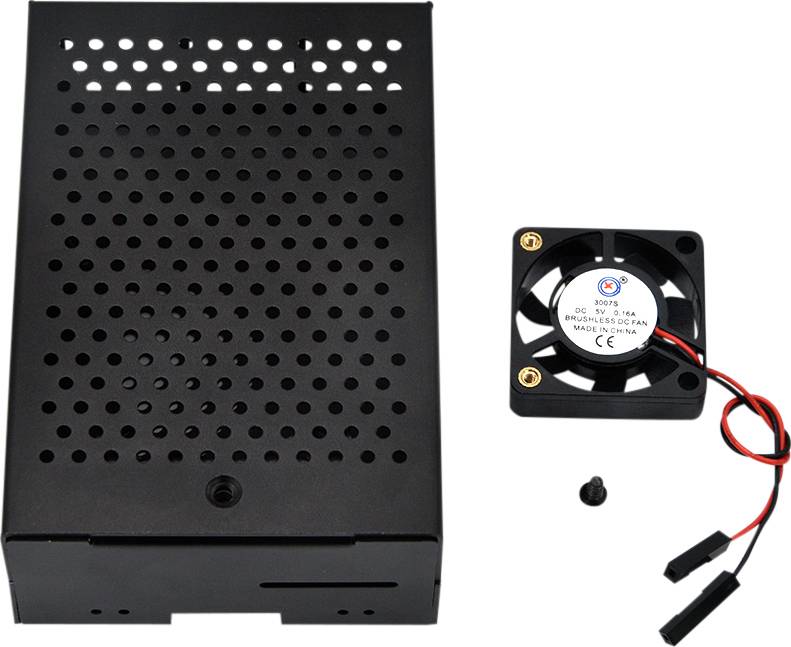

A black metal box with a perforated lid next to a small fan with red and black cables and a mounting screw.

A black enclosure with multiple USB ports and a bundle of colourful cables protruding from the side.

A Raspberry Pi 4 Model B, a small single-board computer, with four USB ports, HDMI port and Ethernet interface on a green circuit board.

A green Raspberry Pi 5 circuit board with multiple ports and chips, including HDMI and USB ports.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TRU COMPONENTSPure SetRaspberry Pi® 5 B (8 GB)

Raspberry Pi® set with all the necessary components to start the Raspberry Pi® 5 B
With 6 bits.Raspberry Pi® 5 B, Aluminum housing with integrated fan and suitable power supply

Technical specifications

Product type: SBC starter kit

Type: Raspberry Pi® 5 B

SoC: Broadcom BCM2712

Processor: ARM Cortex-A76

Processor cores (No.): 4 x

GPU: Broadcom Video Core VII

: 8 GB

Clock speed: 2.4 GHz

Memory type: DDR4
SRAM

Operating system (Version): w/o OS

Memory capacity: 8 GB

Internal ports: CSI (camera)
DSI (display)
GPIO (40-pin)

External ports: 2x USB 2.0
2x USB 3.0
LAN (10/100/1000)
2x HDMI™
micro SD
USB-C® (current)
PCIe 2.0

Wi-Fi: b/g/n/ac

Bluetooth: 5.0

Power supply (LOV): via USB

Output voltage: 5 V DC

Output current: 5 A

Content: PSU
Housing

Length: 85 mm

Width: 56 mm

Height: 17 mm

Documents & Downloads

Datasheet

Datasheet 3062701 TRU COMPONENTS Pure Set Raspberry Pi® 5 B 8 GB 4 x 2.4 GHz PSU, Housing

User & Safety Instructions

User & Safety Instructions 3062701 TRU COMPONENTS Pure Set Raspberry Pi® 5 B 8 GB 4 x 2.4 GHz PSU, Housing

Description

This Pure Set is the perfect basis for your Raspberry Pi® 5 B. This means you have the complete set of accessories you need to commission your PC just by credit card size.

The heart of the Raspberry Pi® 5 B (8 GB RAM)
The Raspberry Pi® 5 B is the powerful successor to the extremely popular credit card-sized single-board computer. This 3rd-generation Raspberry comes with a high-performance ARM Cortex A76 4x 2.4 GHz quad core processor. This upgrade will give you Raspberry Pi® 5 B significantly more performance in certain applications. Wi-Fi and Bluetooth Low Energy and Gigabit LAN are on-board for quick and easy connectivity.

No overheating - including active fan
Protect your Raspberry Pi® with this high-quality aluminum housing from negative environmental influences such as dirt, mechanical effects as well as electromagnetic interference. In addition to the elegant optics, this aluminum case is also significantly more robust than plastic or acrylic cases. The active fan integrated in the cover (30 x 30 mm) provides ideal cooling even with high computing. The openings on the top side of the casing provide for an optimum air circulation.

Convenient switch on and off thanks to on/off switch
The Raspberry Pi® was switched on in the previous versions due to a missing switch through the connection of the USB cable to the power supply unit. Raspberry Pi® 5 B An additional on/off switch is integrated into the board. This allows you to easily switch on and off your Raspberry without having to unplug its plug each time.
