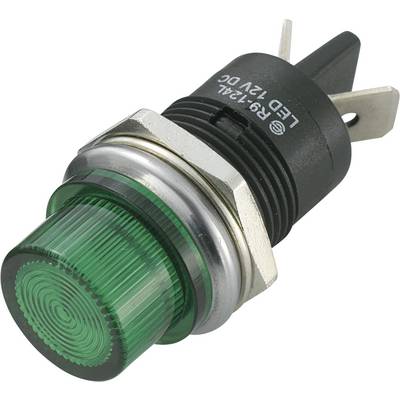

TRU COMPONENTS TC-R 9-124 LB 1-01-bgg 4 LED indicator light Green 12 V DC
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
12 V DC
Operating current
20 mA
Recess diameter
16 mm
Light intensity I(V)
700 mcd
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
LED indicator light Green 12 Vdc SCI
Technical specifications
- Lens: diffuse
- Product type
LED indicator light
- Type
TC-R 9-124 LB 1-01-bgg 4
- Factory colour
Green
- Operating voltage
12 V DC
- Operating current
20 mA
- Recess diameter
16 mm
- Case colour
Black
- Material
Polyamide
- Mounting type
Screw
- Light intensity I(V)
700 mcd
- Radiation angle
100°
- Connection
Type C CEE 7/16 plug 6.3 mm
- Dim
(Ø x L) 20 mm x 33.4 mm
- Length
33.4 mm
- (Ø)
20 mm
- Min. temperature
-20 °C
- Max. temperature
85 °C
- RoHS-compliant
Yes
n.rel.
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1587997 TRU COMPONENTS TC-R 9-124 LB 1-01-bgg 4 LED indicator light Green 12 V DC
User & Safety Instructions
User & Safety Instructions 1587997 TRU COMPONENTS TC-R 9-124 LB 1-01-bgg 4 LED indicator light Green 12 V DC
