Name: Turck 6936514 Sensor/actuator connector (pre-fab) 3 m No. of pins (RJ): 4 1 pc(s)
Brand: Turck
SKU: 2835100

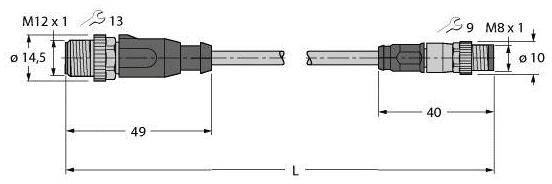

Technical drawing of a cable with an M12 plug on the left and an M8 plug on the right. Length dimensions of 49 mm and 40 mm indicated.

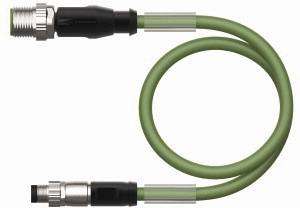

A green connecting cable with silver connectors at both ends, shown against a white background.

1/2

Product type

Sensor/actuator connector (pre-fab)

Connection side A

M12 plug, straight

No. of pins

Cable length

3 m

Nominal voltage

42 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: RSSD-PSGS4M-4414-3M/S6000

Product type: Sensor/actuator connector (pre-fab)

Connection side A: M12 plug, straight

No. of pins: 4

Cable length: 3 m

Jacket material: PUR

Nominal voltage: 42 V

Nominal current: 3 A

Nominal current - rounded value: 3 A

Connection: M12 plug

Contact surface: Gold

: IP67

Features: Suitable for drag chains

Min. temperature: -40 °C

Max. temperature: 80 °C

Manufacturer part #: 6936514

Content: 1 pc(s)

Cable Ø: 4.8 mm

RoHS-compliant: Yes

: 42 V

: Pin

: Plastic

: -40-80 °C

: Gold

: 3

: Straight

: IP67

: 3 A

UKCA: not relevant
