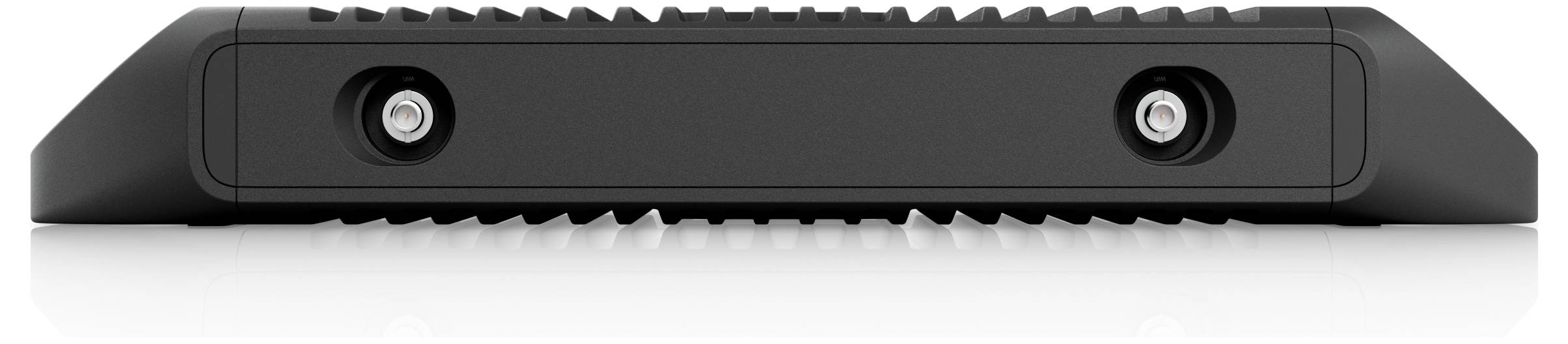

A black electronic device with two lens-like components on the front, possibly a sensor or camera, set against a white background.

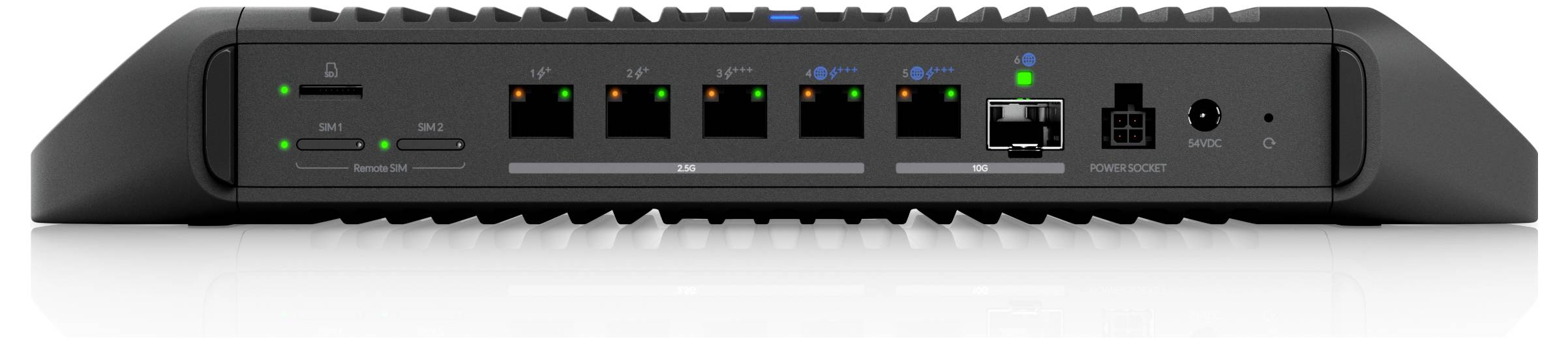

Back view of a network router showing ports for Ethernet connections, power input, and a USB slot, with indicator lights on above.

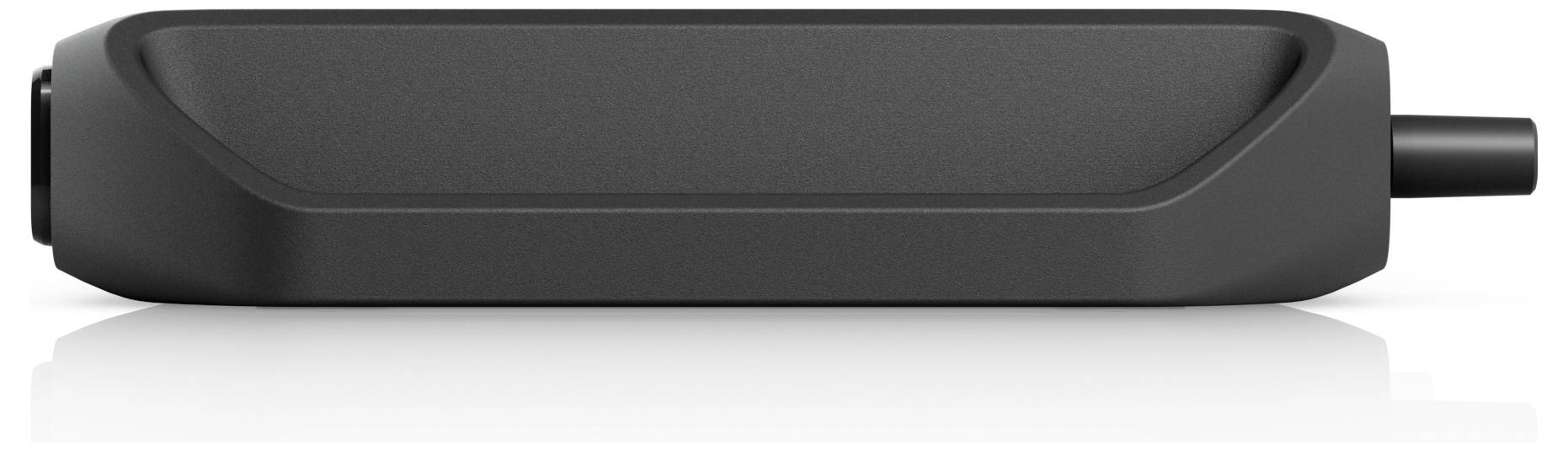

A sleek, rectangular black electronic device with smooth edges and a cable extending from the right side, set against a white background.

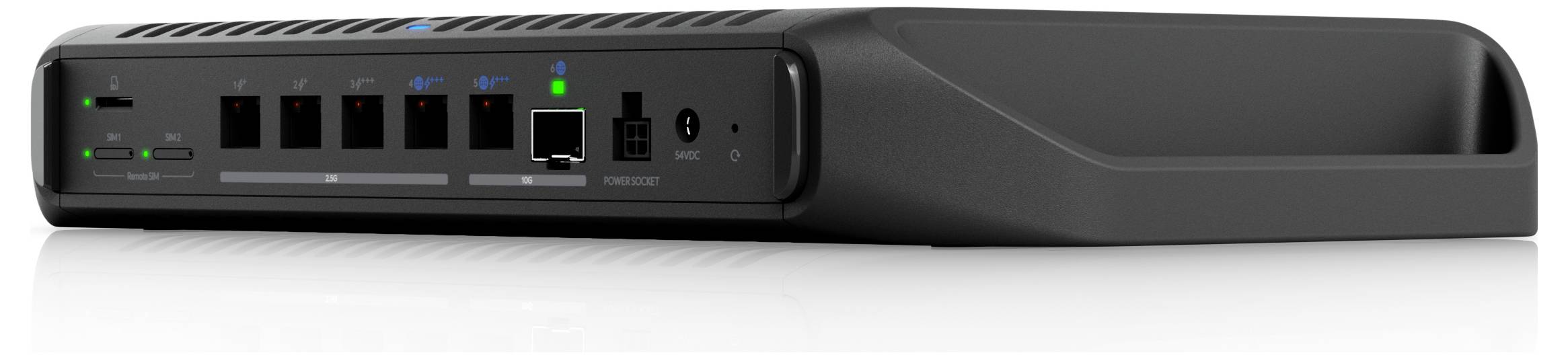

A black network router with multiple ports and indicator lights, including USB, Ethernet, and power connections, against a white background.

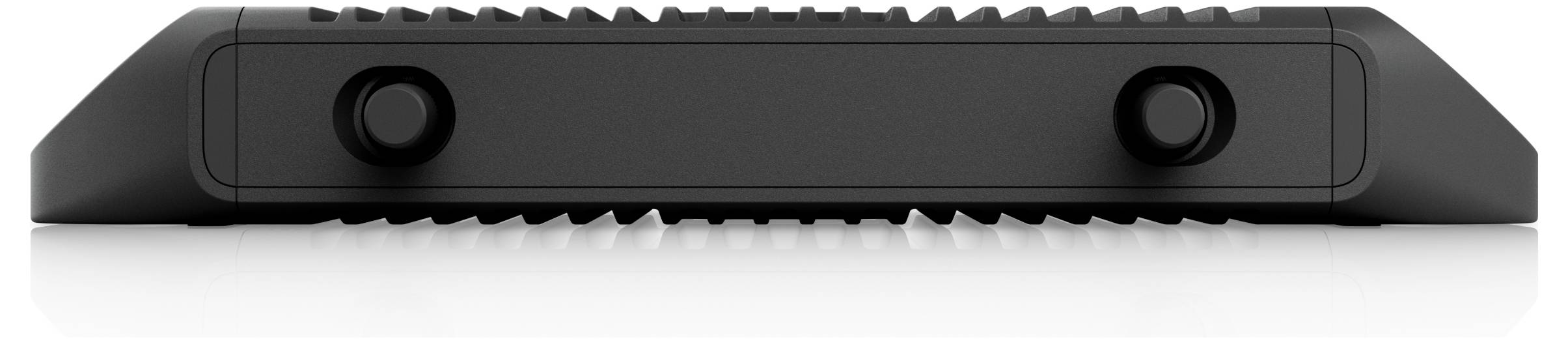

A sleek, black device with a ridged top and two circular buttons on the front.

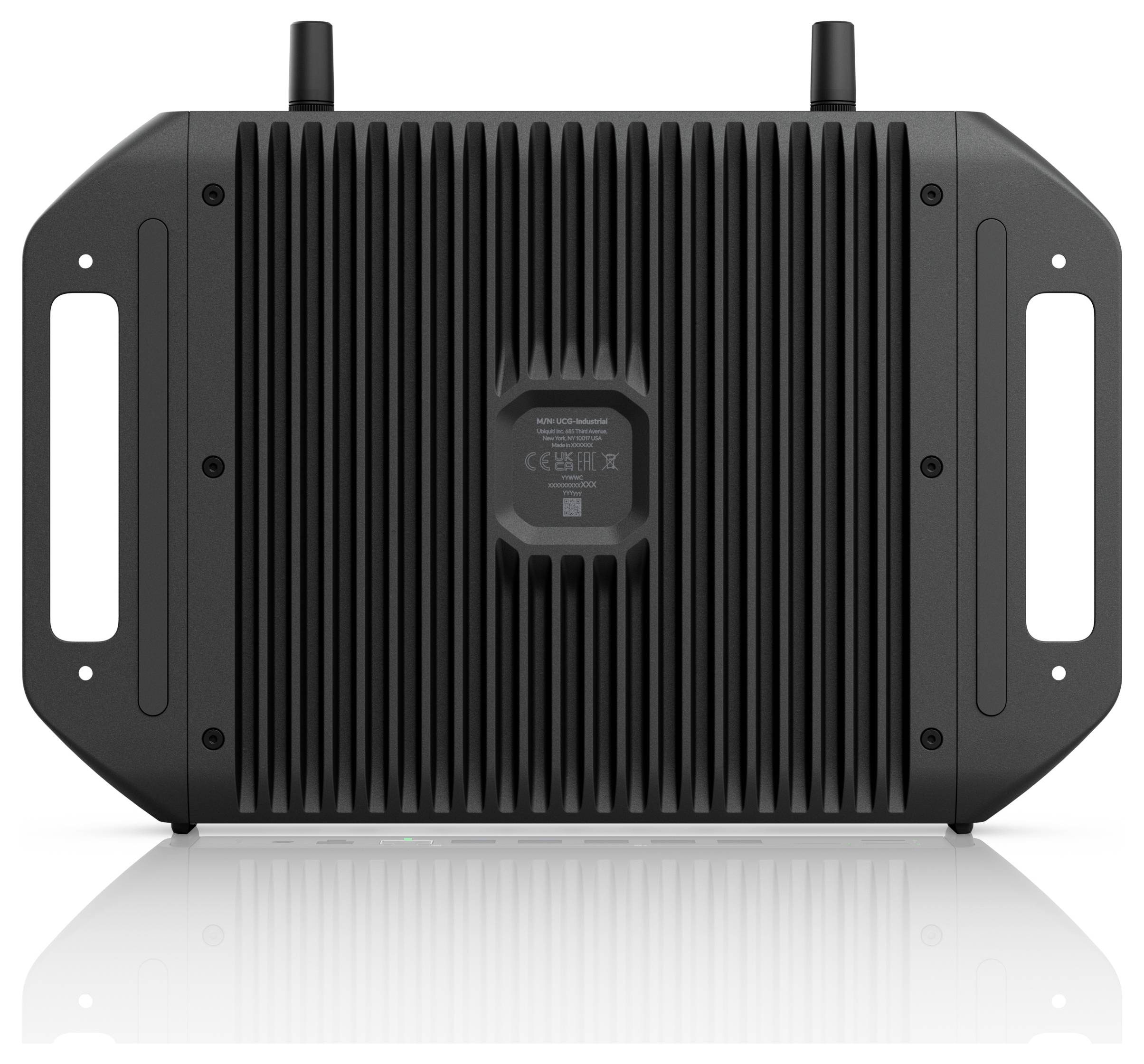

A black network device with cooling fins, two antennas, and side handles, used for industrial or outdoor communication solutions.

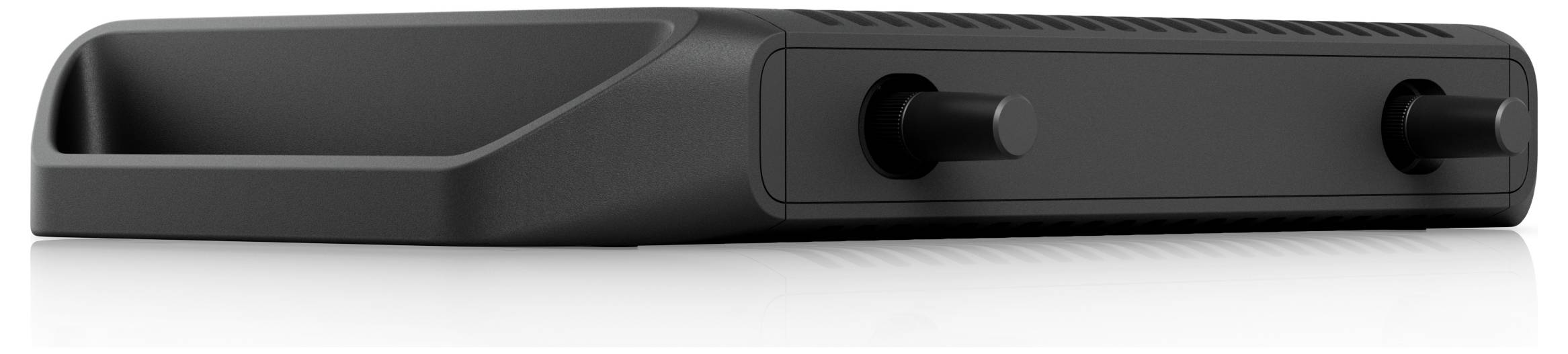

A sleek, black electronic device with two control knobs and a vent, possibly a gaming console or media player, viewed from a low angle.

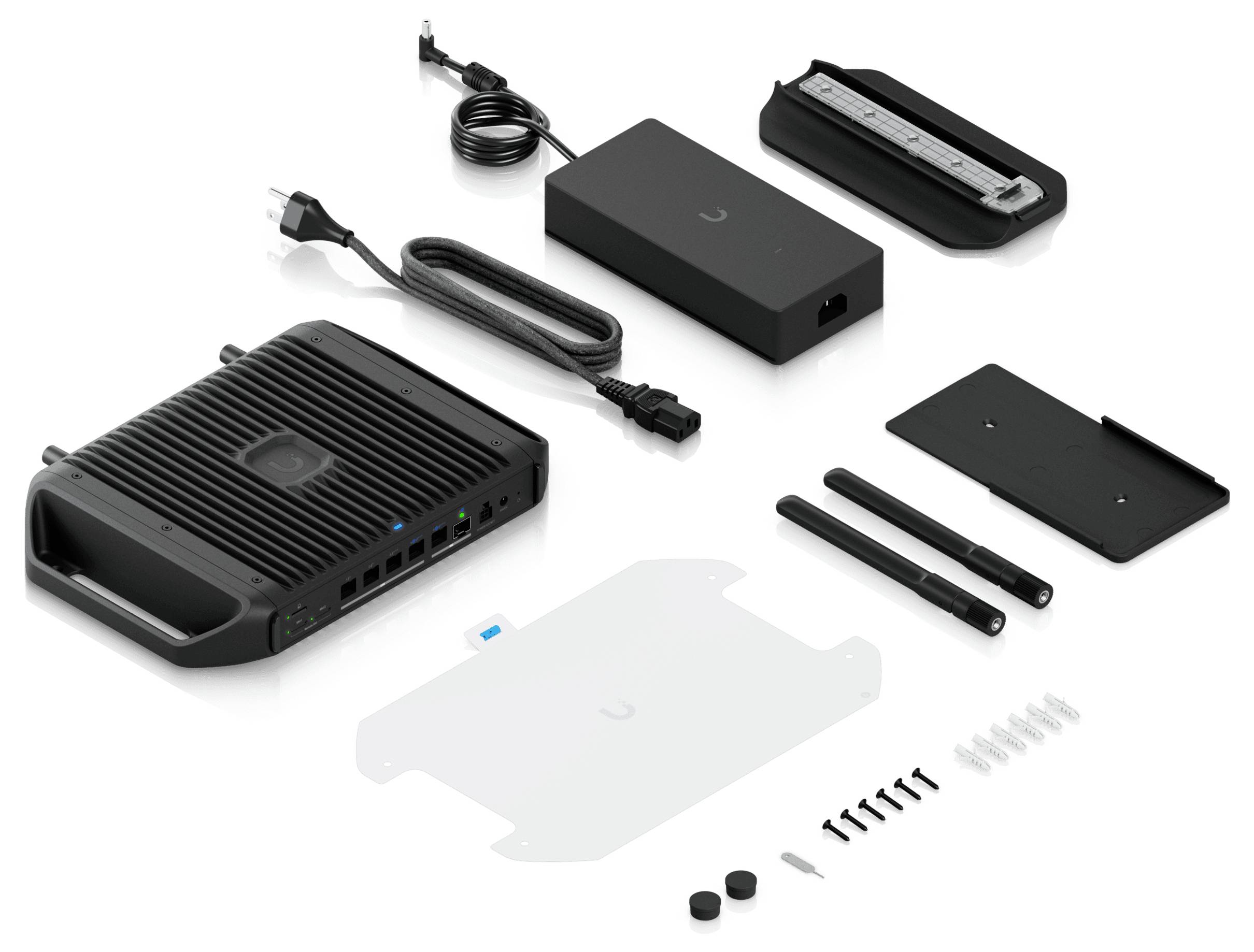

A disassembled technology kit featuring a main hub, power supply, antennas, screws, mounting brackets, and cables, arranged on a white surface.

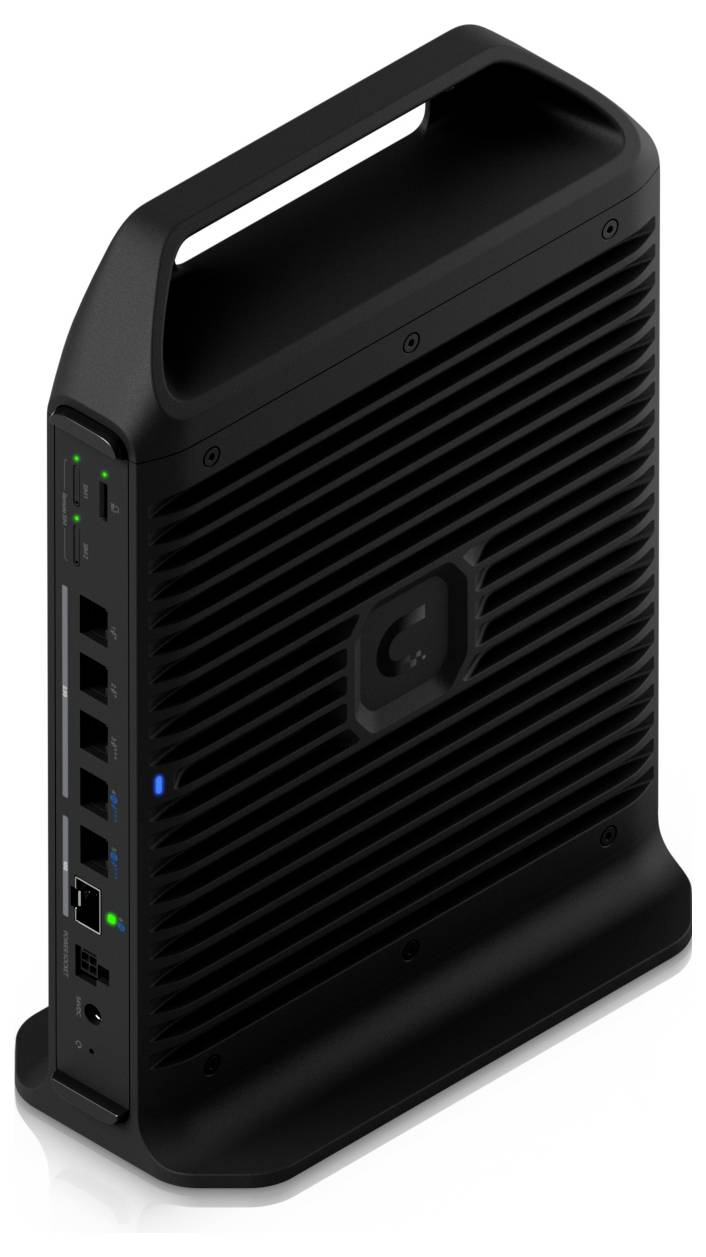

A sleek, black network router with multiple Ethernet ports and indicator lights, designed with a vertical orientation and handle on top.

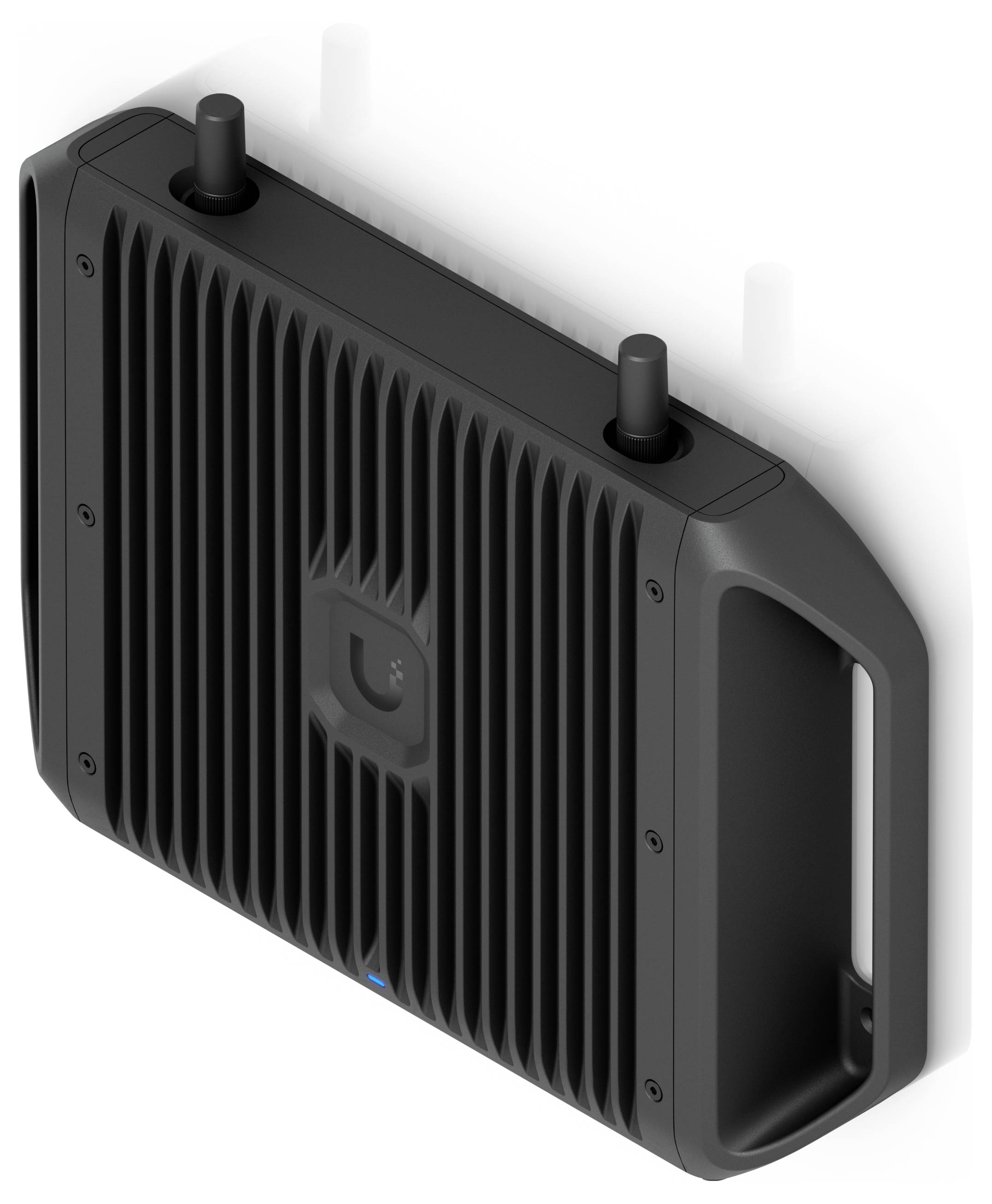

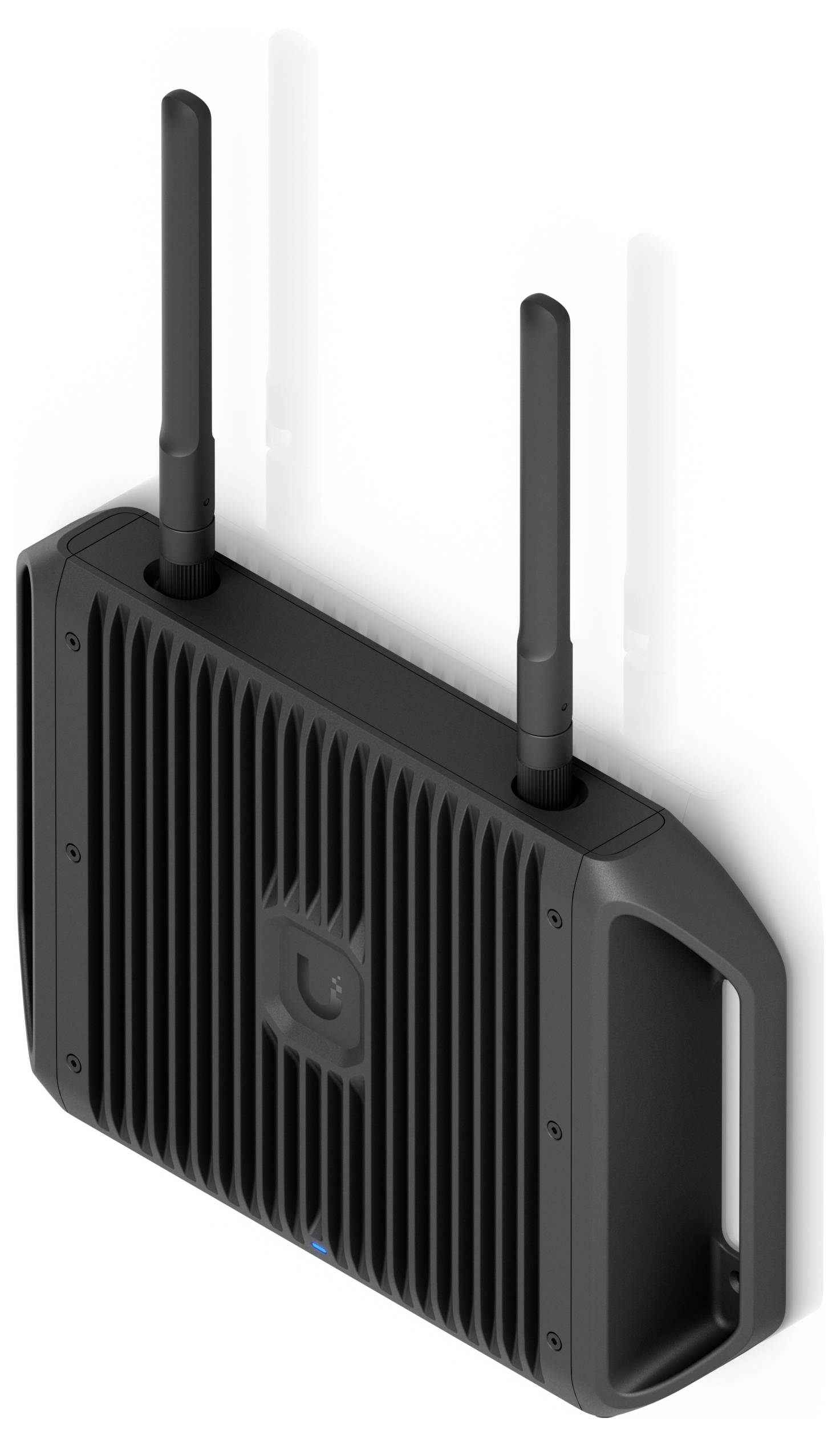

A black, vertically mounted electronic device with two antenna ports and a ribbed design, used for wireless networking.

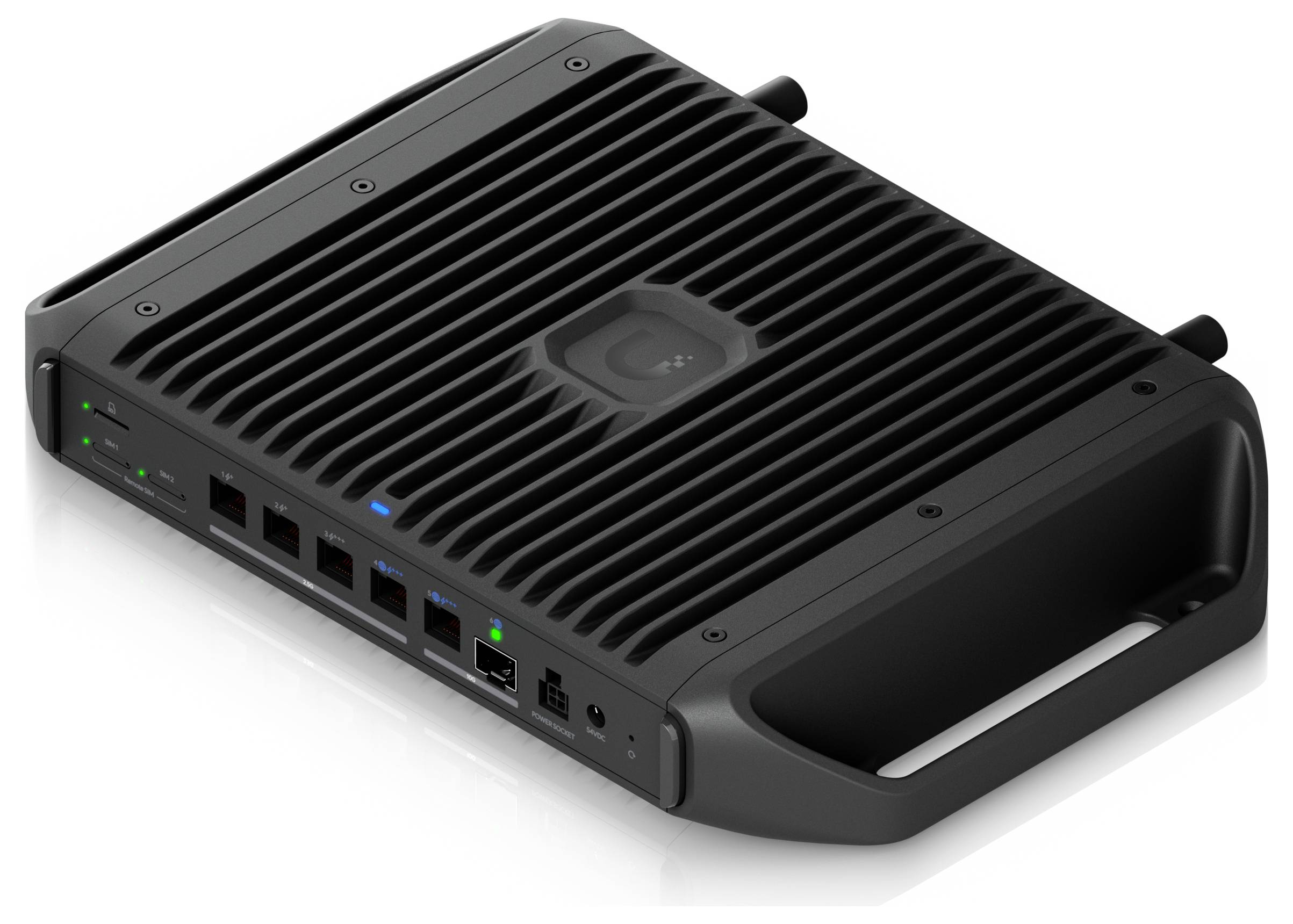

A black electronic device with multiple ports on one side, LED indicators, and a ridged surface, likely a network router or switch.

1/13

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti Unifi cloud gateway industrial • Unifi OS console • WIFI7 • BE5000 • 1x 10 GbE • 4x 2.5 GbE 3x PoE++ • 2x PoE+ • 1x SFP+ • UCG industrial

Supported:
• Network
• Protect
• Access
• Talk
•Connect

Technical specifications

Data transfer rate 4.3 Gbps

Product type: Cloud Gateway

LAN transfer rate: 10000 MBit/s

10/100/1000 Mbps ports: 5 x

Factory colour: Black

Depth: 203.5 mm

Height: 43.7 mm

Width: 307.9 mm

CPU series: ARM Cortex

Memory techology: DDR4

No. of antennas: 2 x

PSU power: 350 W

Gain: 5 dBi

Input voltage: 100 - 240 V

CPU speed: 2200 MHz

: 3000 MB

Weight: 2.4 kg

Wi-Fi: Yes

UKCA: yes

Operating temperature (T-T): -30 - 50 °C

Heat dissipation: 85 BTU/h

Electrostatic Discharge (ESD) protection (air): 8 kV

Electrostatic Discharge (ESD) protection (contact): 4 kV

DC-in jack: yes

SIM card slot: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Multicast support: yes

Control display unit: no

Electrostatic Discharge (ESD) protection: yes

Reset button: yes

Load balancing: yes

Manual: yes

SFP+ ports quantity: 1

: yes

: 8 kV

: 4 kV

Number of processors installed: 1

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

Number of simultaneous SIM cards: 2

Network address translation (NAT): yes

Built-in processor: yes

Power consumption (max): 28 W

Documents & Downloads

Datasheet

Datasheet 3738665 Ubiquiti Networks Cloud Gateway Industrial Cloud Gateway 10000 MBit/s

User & Safety Instructions

User & Safety Instructions 3738665 Ubiquiti Networks Cloud Gateway Industrial Cloud Gateway 10000 MBit/s

Description

Robust, fanless 10-GbE Unifi Cloud Gateway with a total system power of 350 W for high-density PoE deployments, advanced routing capabilities, and microSD storage for full support for Unifi applications.
