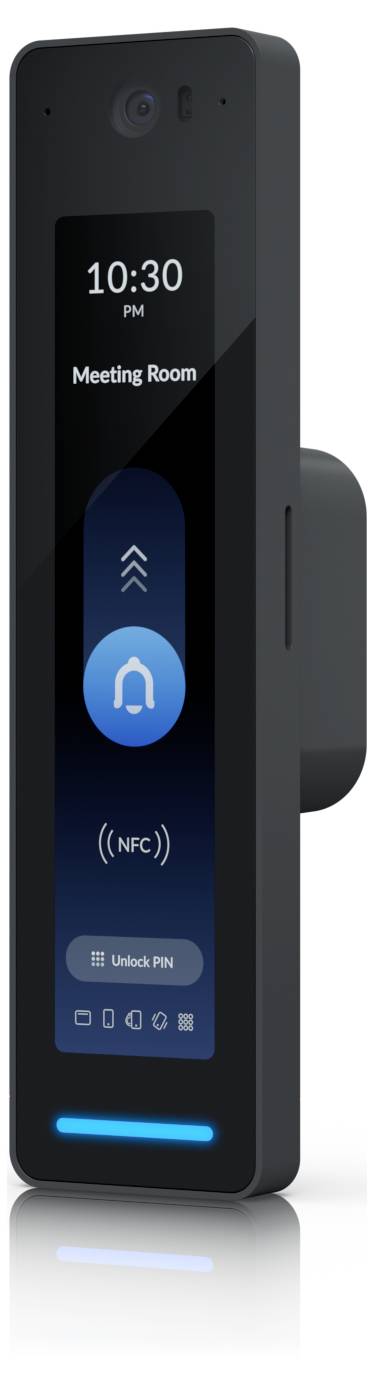

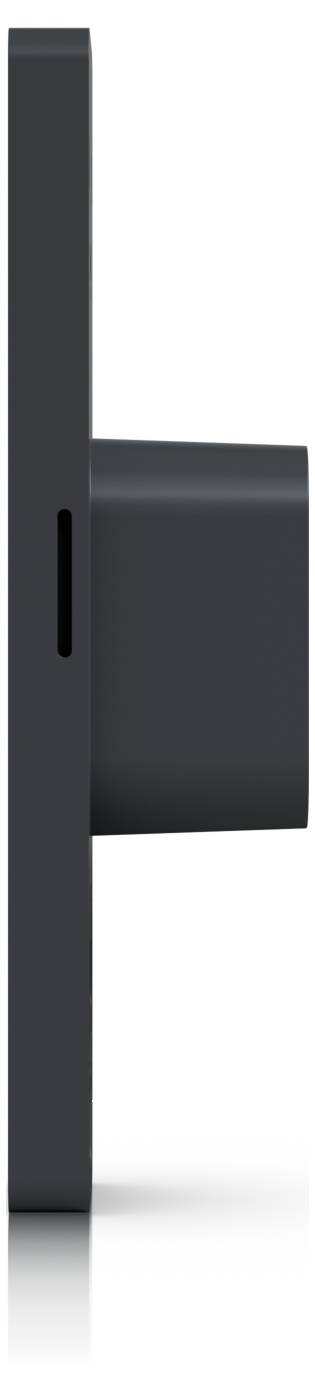

Ubiquiti Networks UA-G3-PRO-B Transponder access system Wall IP55 + touchscreen
EAN:
Part number:
Item no:
Highlights & Details

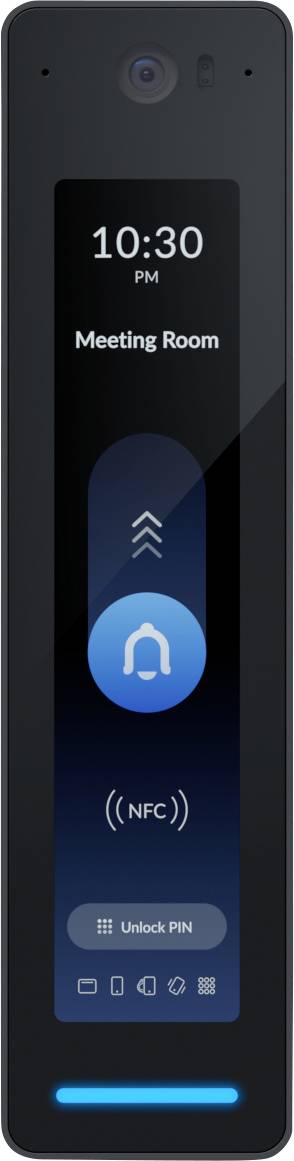

Ubiquiti G3 Reader Pro face recognition terminal black
- Face recognition terminal
- Access chip/card, face recognition access chip/card reader
- Built-in display
- Single camera
- NFC (Bluetooth) Power over Ethernet (PoE)
Technical specifications
- Recommended use: Inside & outside
- 96.67° horizontal image angle
- Angle of view, vertical 123.15°
- 480 nits brightness, 1280 x 286 resolution
- Product type
Transponder access system

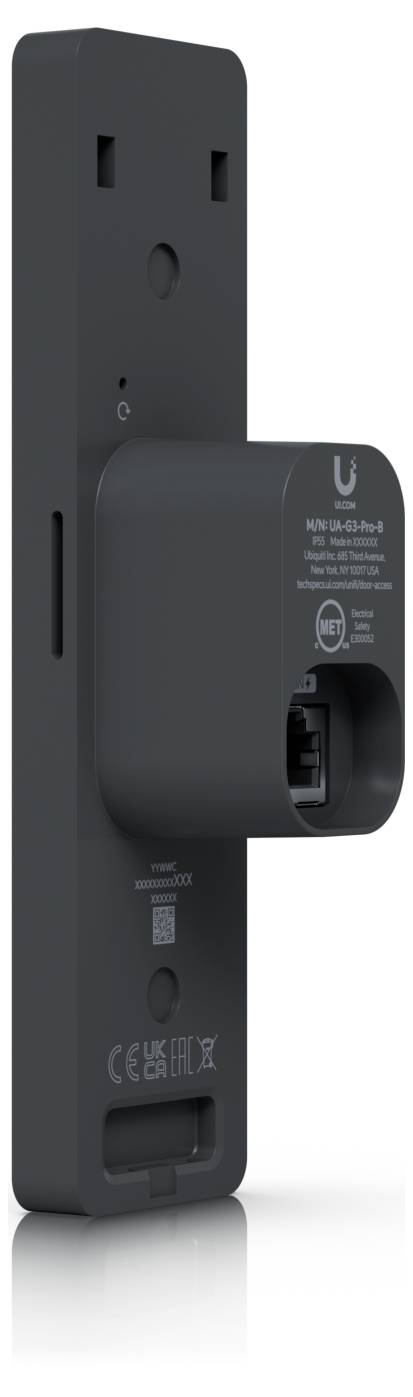

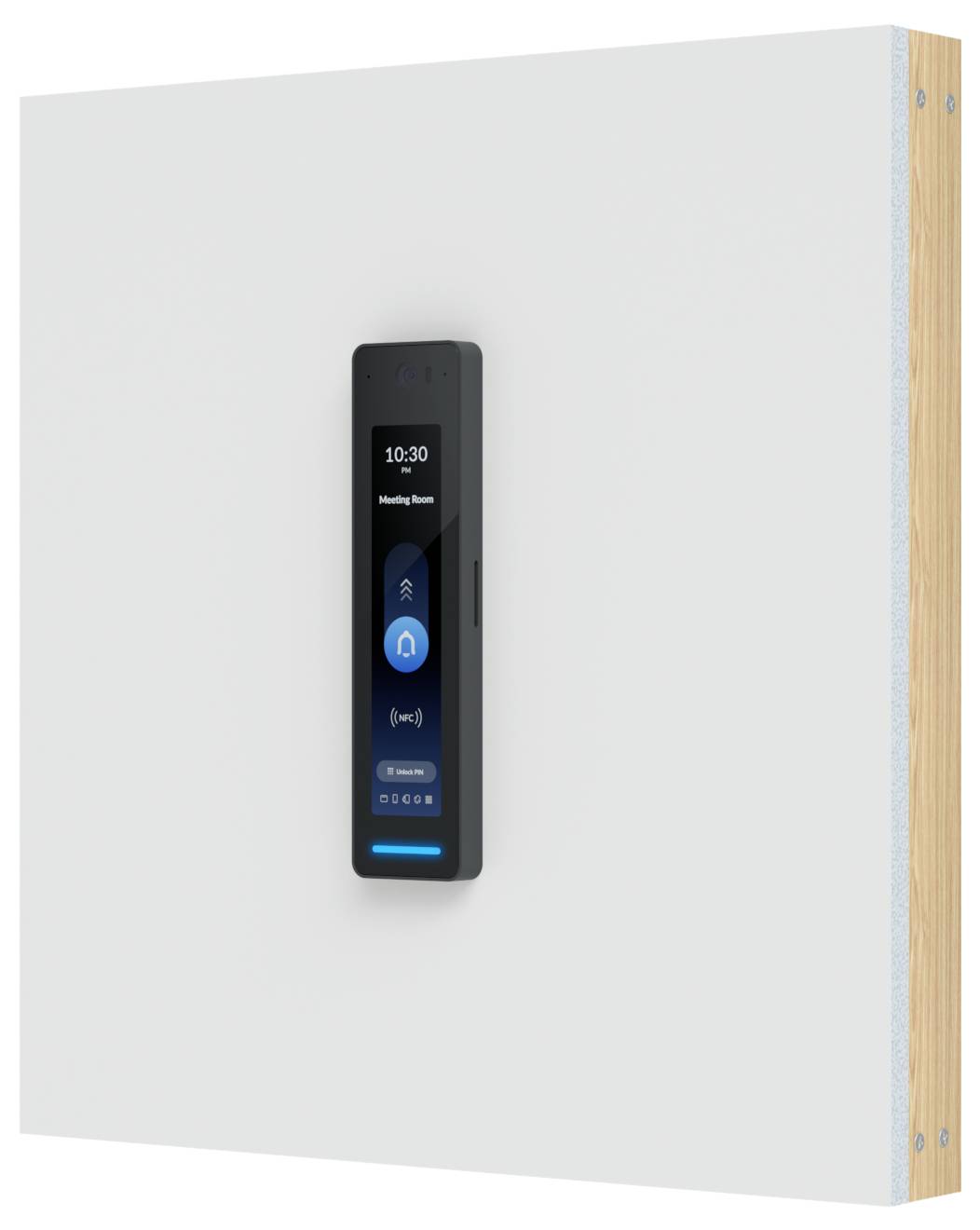

- Mounting type
Wall

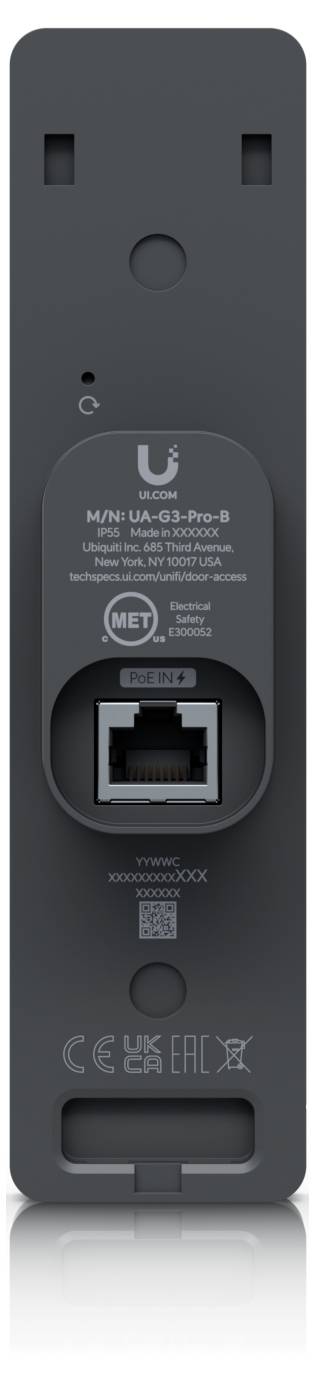

- Connections
1x Gigabit Ethernet RJ45 port (1 GbE)
Further connections wirelessly via BLE 4.2 and NFC
IP55
- Weight
136 g
- Dim
(L x W x H) 150 cm x 40.4 mm x 160 mm
- Features
+ touchscreen

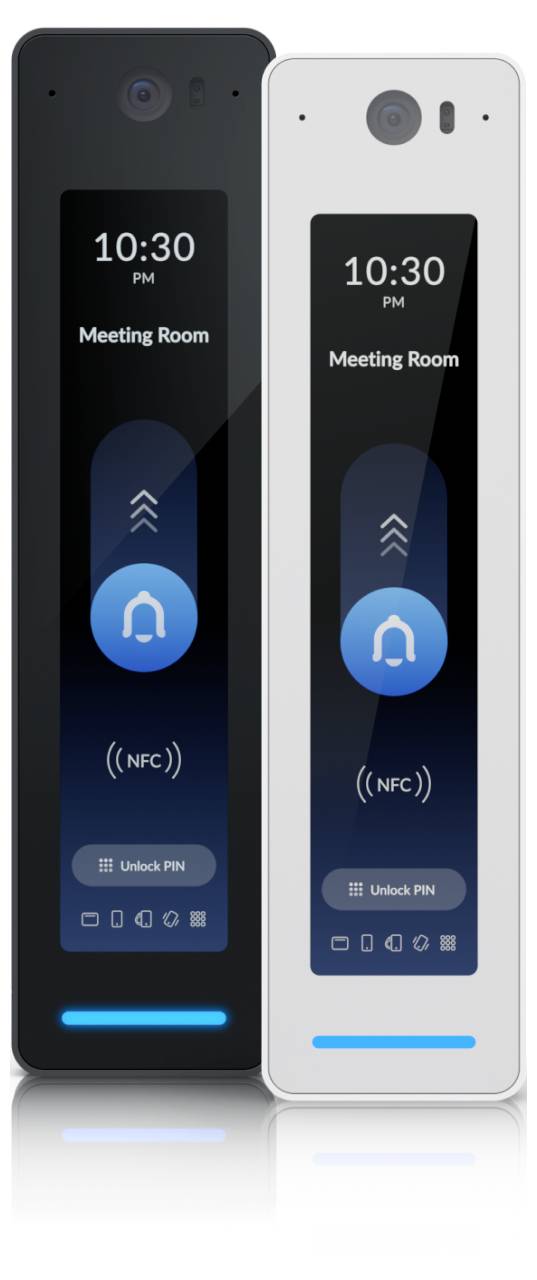

- Factory colour
Black
- Width
40.4 mm
- Height
160 mm
- Depth
40.5 mm
- Bluetooth
4.2
- Bluetooth
Yes
- Length
150 cm
- Screen size diagonal (inches)
4.7 inch
- Fingerprint
No
- Touchscreen (display)
Yes
- Material (details)
Glass
Polycarbonate (PC)
- Type
Face recognition terminal
- NFC (Near field communication)
Yes
- 10/100/1000 Mbps ports
1 x
- Webcam
Yes
- UKCA
yes
- Access code reader
no
- Access chip/card reader
yes
- Number of speakers
1
- Power over Ethernet (PoE) ports quantity
1
- Operating temperature (T-T)
-10 - 45 °C
- Speaker power
1.5 W
- Built-in speaker(s)
yes

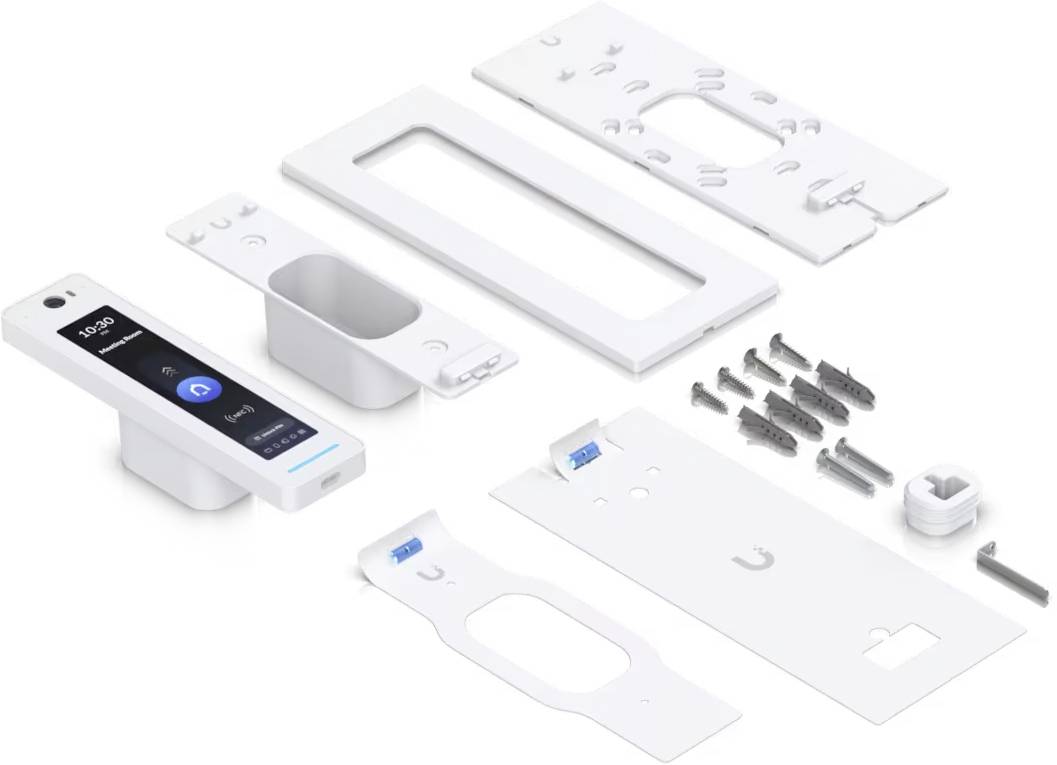

- Mounting bracket(s) included
yes
- Power over Ethernet (PoE)
yes
- Operating relative humidity (H-H)
5 - 90 %
- Built-in display
yes
- Power consumption (max)
6 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784699 Ubiquiti Networks UA-G3-PRO-B Transponder access system Wall IP55 + touchscreen
Description
NFC reader and third-generation intercom for indoor and outdoor use with Apple touch pass support.
Unlock with NFC card, PIN, Unifi mobile identity APP, face unlock, and touch pass
This text is machine translated.
Unlock with NFC card, PIN, Unifi mobile identity APP, face unlock, and touch pass
