Name: Ubiquiti Networks UDR7 UDR7 Desktop 10G Cloud Gateway LTE gateway 10 GBit/s
Brand: Ubiquiti Networks
SKU: 3730673

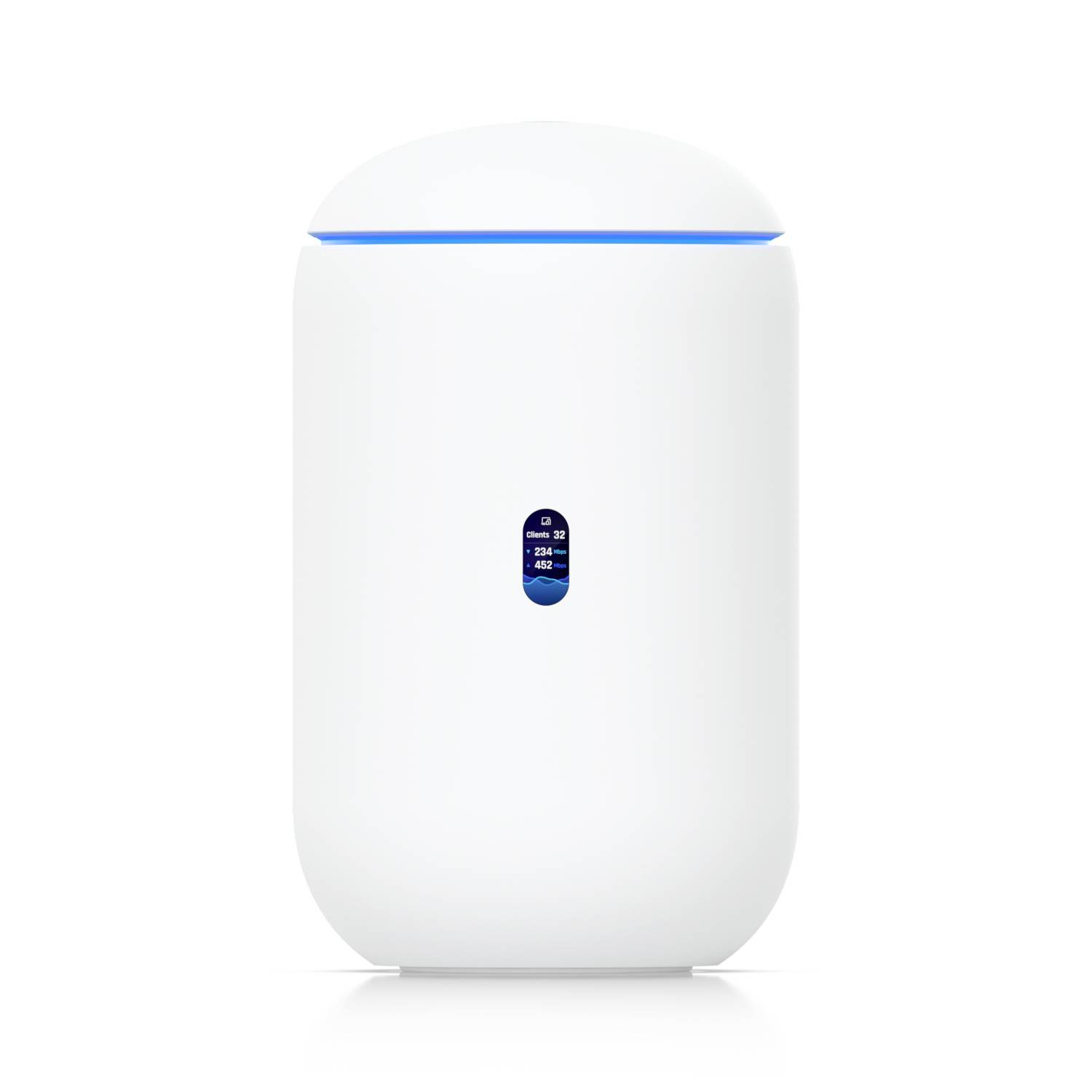

A sleek, white smart Wi-Fi router with a subtle blue LED indicator on top, featuring a small control panel with buttons on the front.

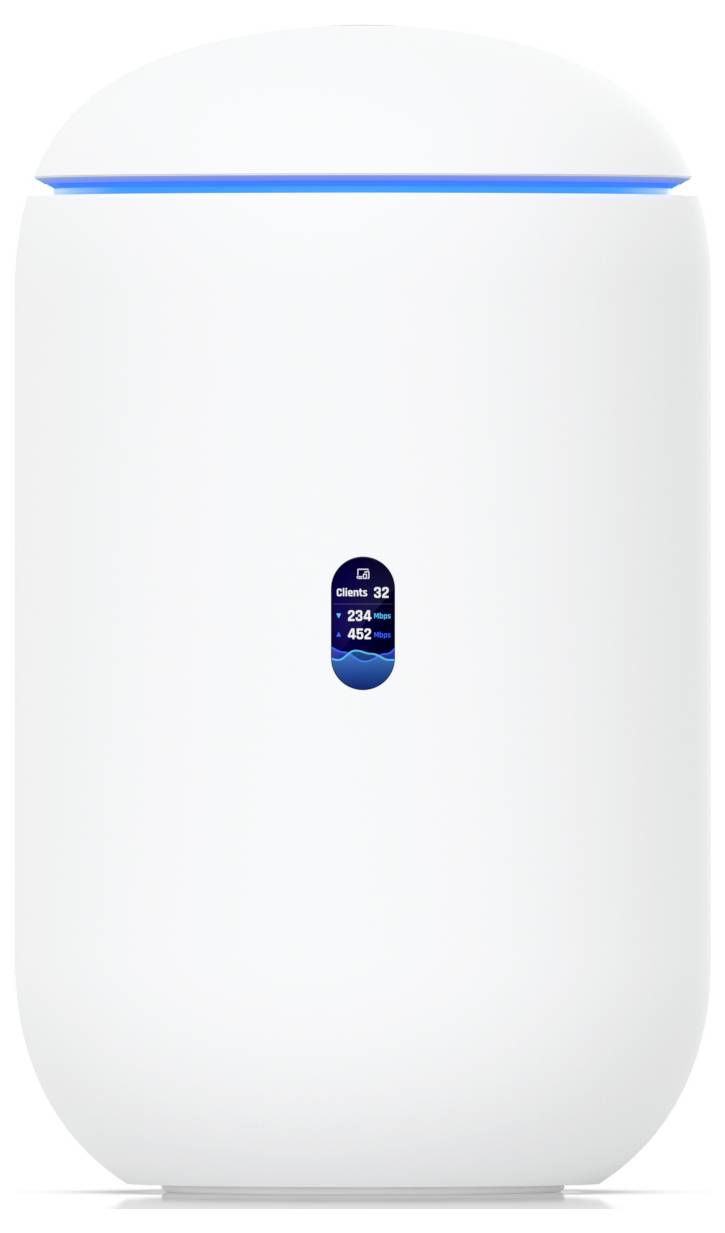

A white, cylindrical electronic device with a small digital display screen showing numerical data, and a glowing blue accent highlight.

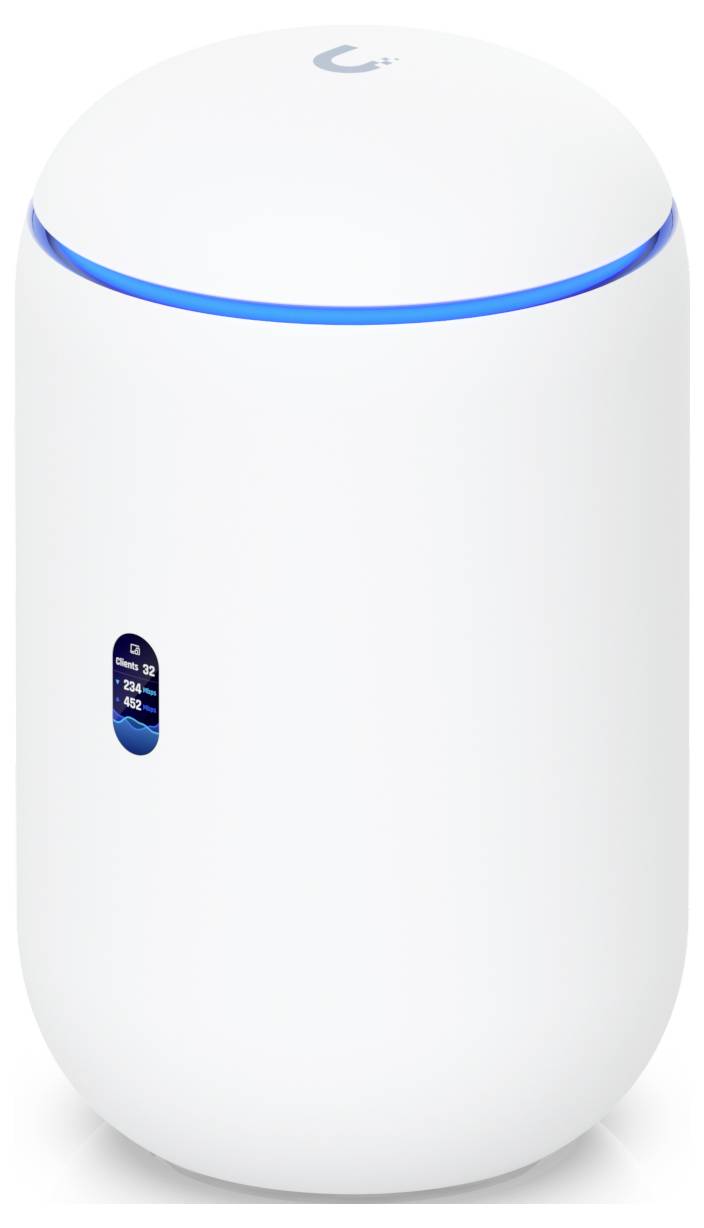

A white cylindrical electronic device with a blue LED light ring near the top and a small display screen on one side.

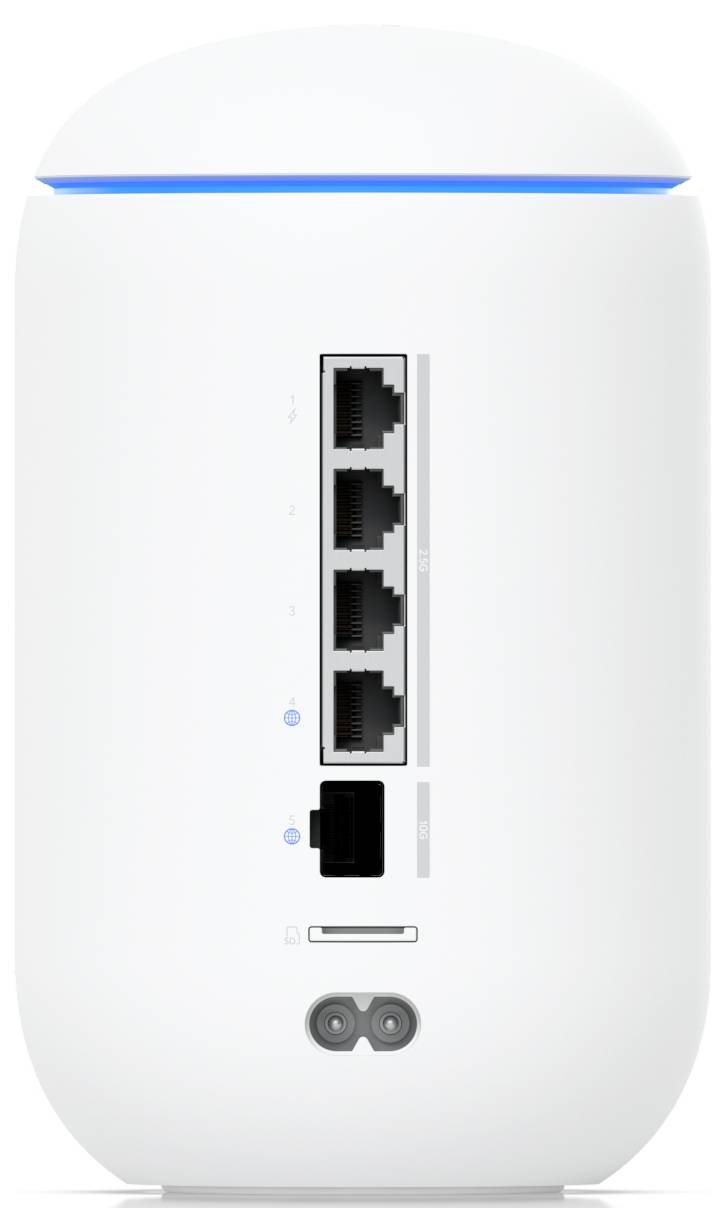

White vertical Wi-Fi router with four Ethernet ports, fiber optic port, and blue LED indicator on top, viewed from the back.

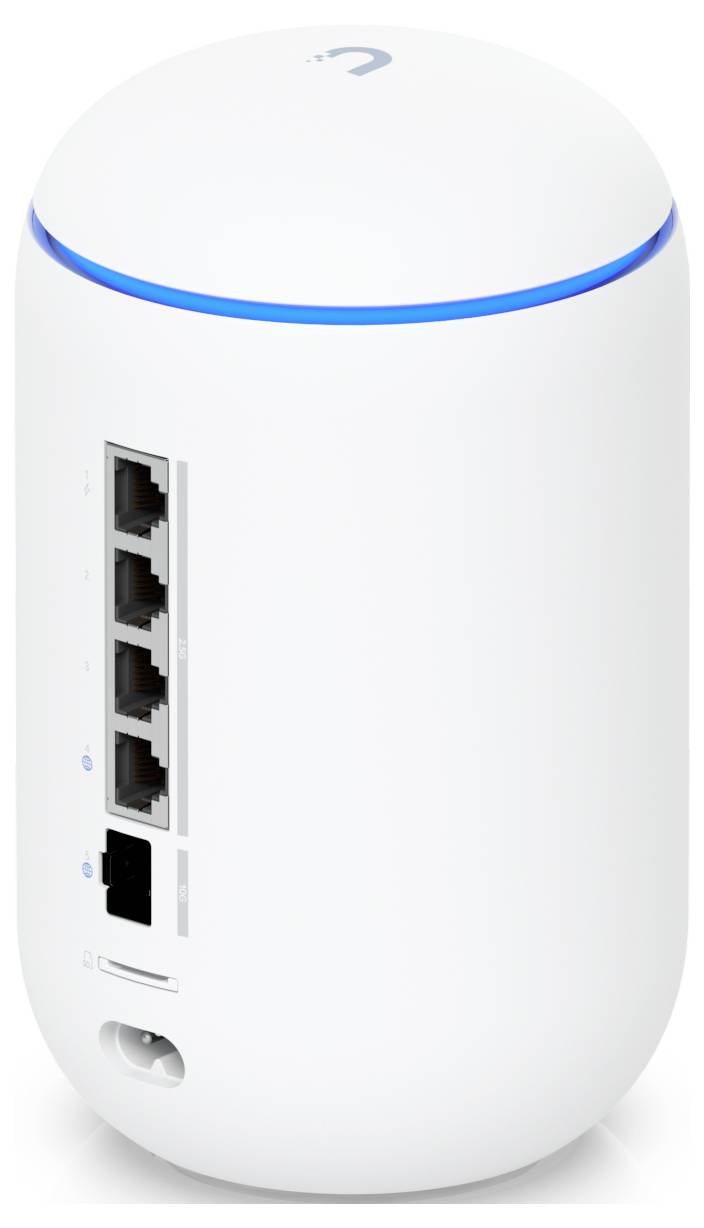

A white cylindrical Wi-Fi router with five Ethernet ports, a small power button at the bottom, and a blue LED light ring at the top.

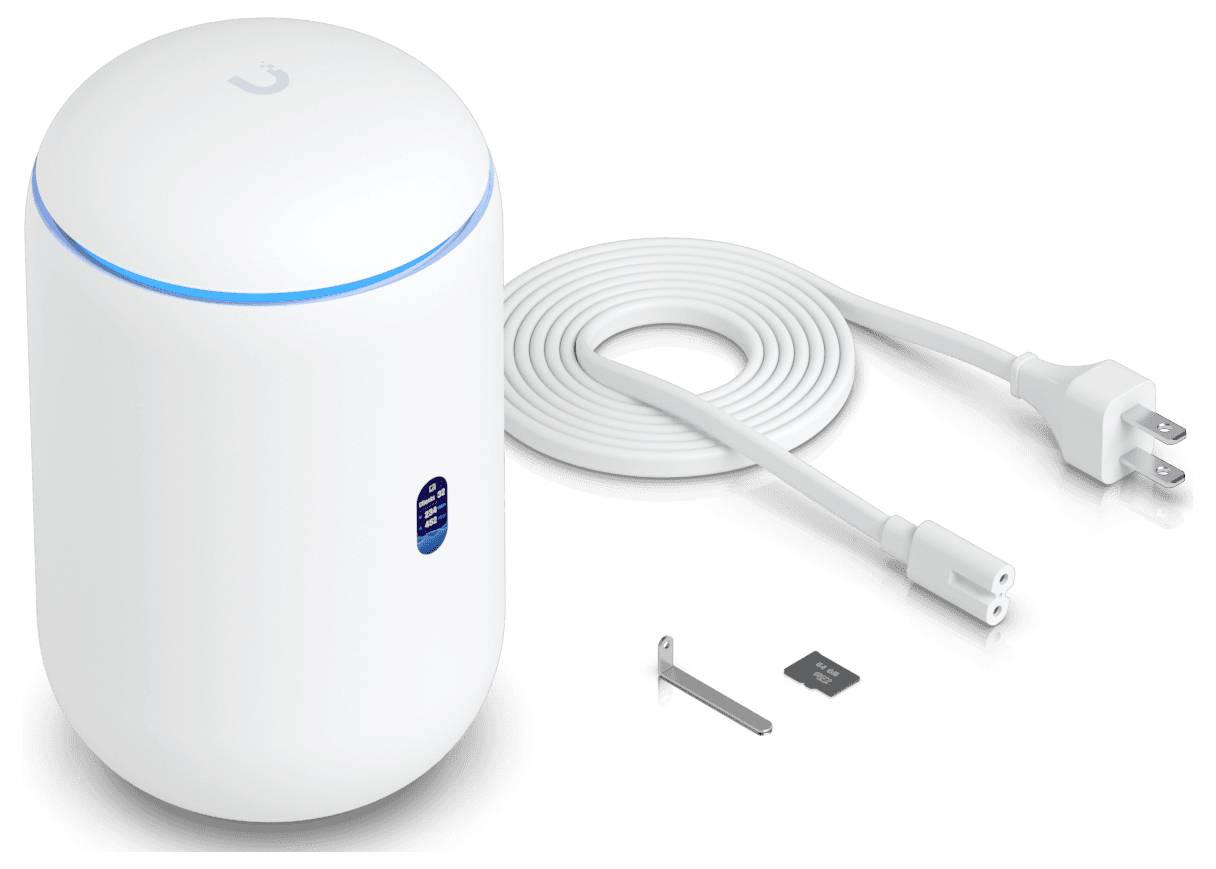

'Wi-Fi router with power cable, reset tool, and SIM card slot, designed for home internet connectivity.'

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti Dream 7 WLAN Router 2.5 Gigabit Ethernet Tri-Band (2.4 GHz/5 GHz/6 GHz) White

White tabletop router
Tri-Band (2.4 GHz/5 GHz/6 GHz) Wi-Fi 7 (802.11b) 5700 Mbit/s.
2.5 Gigabit Ethernet
Ethernet WAN
Number of Ethernet LAN connections (RJ-45): 4
Web-based management Quality of Service (QoS) support
MIMO MU-MIMO TECHNOLOGY

Technical specifications

WLAN band: Tri-band (2.4 GHz/5 GHz/6 GHz)
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
Optical cable type: SFP+
Product type: Tabletop router
Goods tariff number (HS): 8517.62

Product type: LTE gateway

Transfer rate: 10 GBit/s

10/100 Mbps ports: 4 x

10/100/1000 Mbps ports: 4 x

Weight: 1.1 kg

Width: 110 mm

Height: 184.1 mm

Depth: 110 mm

Type: UDR7 Desktop 10G Cloud Gateway

Factory colour: White

Bluetooth: Yes

Cable length: 0 cm

Processor cores (No.): 4 x

Keyboard layout: German, QWERTZ

Material (details): Polycarbonate (PC)

Power consumption (ON): 26 W

PSU power: 50 W

Gain: 7 dBi

Power supply (details): 100 - 240 V

CPU speed: 1500 MHz

: 3000 MB

Safety: PSK
WPA
WPA-Enterprise
WPA-PSK
WPA2
WPA2

UKCA: yes

Operating temperature (T-T): -10 - 40 °C

Ethernet LAN: yes

Firewall: yes

Memory card slot(s): yes

USB port: no

Filtering: yes

Maximum coverage: 160 m²

DSL WAN: no

Ethernet WAN: yes

SIM card slot: no

3G/4G USB modem compatibility: no

WLAN data transfer rate (max): 5700 Mbit/s

WLAN data transfer rate (first band): 688 Mbit/s

WLAN data transfer rate (second band): 4300 Mbit/s

WLAN data transfer rate (third band): 5700 Mbit/s

MIMO: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Multicast support: yes

Policy-based routing: yes

Power over Ethernet (PoE) voltage: 57 V

Web-based management: yes

DHCP server: yes

Reset button: yes

Manual: yes

MU-MIMO technology: yes

Maximum Tx power (2.4 GHz): 23 dBmW

Maximum Tx power (5 GHz): 26 dBmW

Number of products included: 1 Stück(e)

MAC address table: 2000 Eintragungen

Load balancing system: yes

Operating relative humidity (H-H): 5 - 95 %

Built-in processor: yes

Built-in display: yes

Number of simultaneously connected devices (max): 300

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730673 Ubiquiti Networks UDR7 UDR7 Desktop 10G Cloud Gateway LTE gateway 10 GBit/s

Description

The Ubiquiti Dream Router 7 is designed for a robust performance in case of network requirements at home or in office. With support of up to 20,000 concurrent clients, it ensures reliable connectivity to support extensive device usage. With several data connection protocols, including IEEE 802.11ax (Wi-Fi 6E) and IEEE 802.11be (Wi-Fi 7), it supports advanced wireless communication functions and enables seamless data transfer with a maximum data rate of 10 Gbps. The Ubiquiti dream router 7 is equipped with an intuitive status LCD and a quad-core processor and combines functionality with efficiency. The integrated functions include advanced network security protocols such as VPN support and an application-oriented layer 7 firewall, making it suitable for both private and professional applications. Its operating conditions are designed for a range of temperatures and humidity, while the built-in power supply unit ensures reliable operation.

This text is machine translated.
