Buy Ubiquiti Networks UniFi UPS 2U UPS

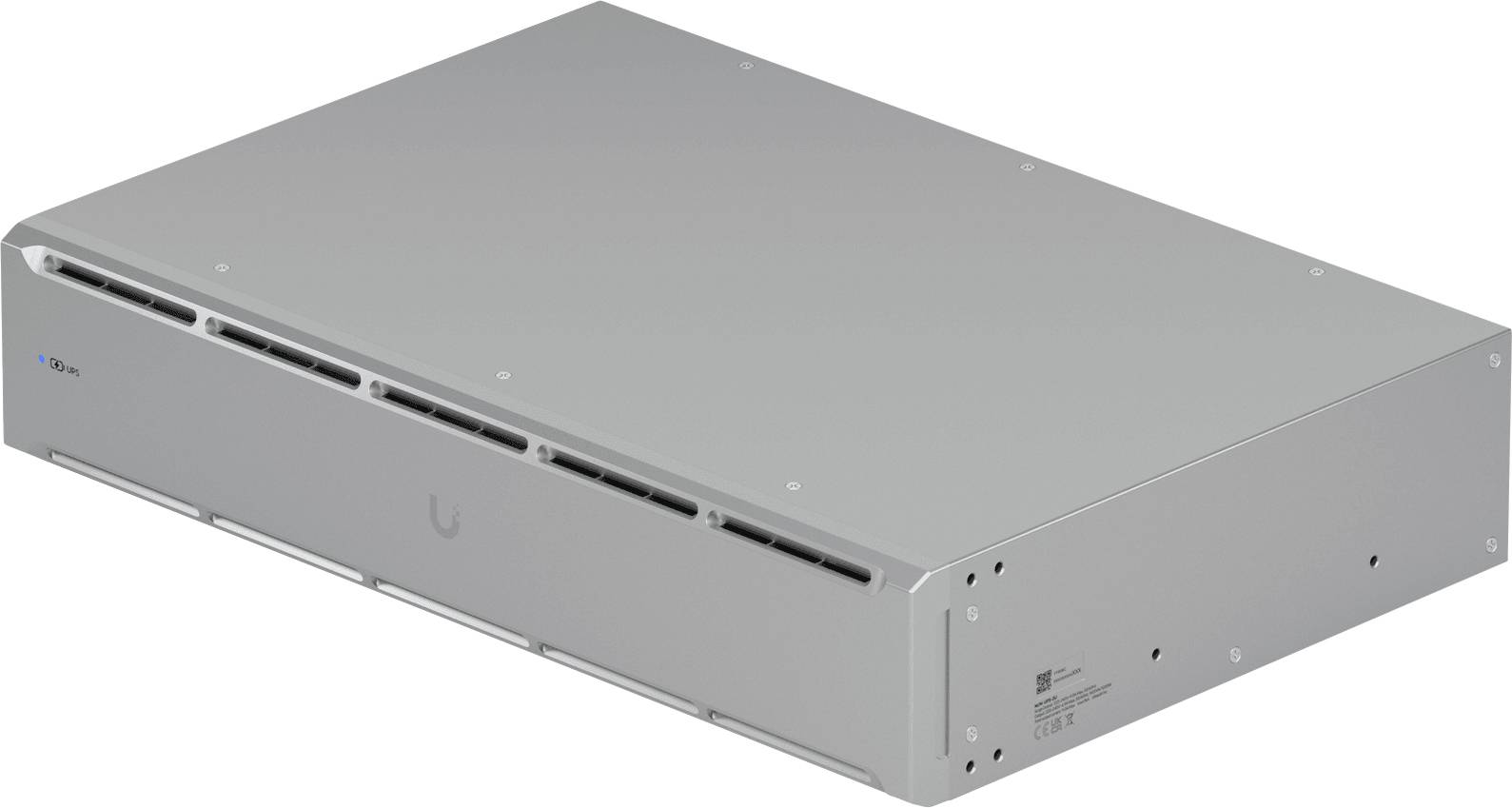

A silver network switch with visible ventilation slots and ports on the side, used for network connectivity in data centers or offices.

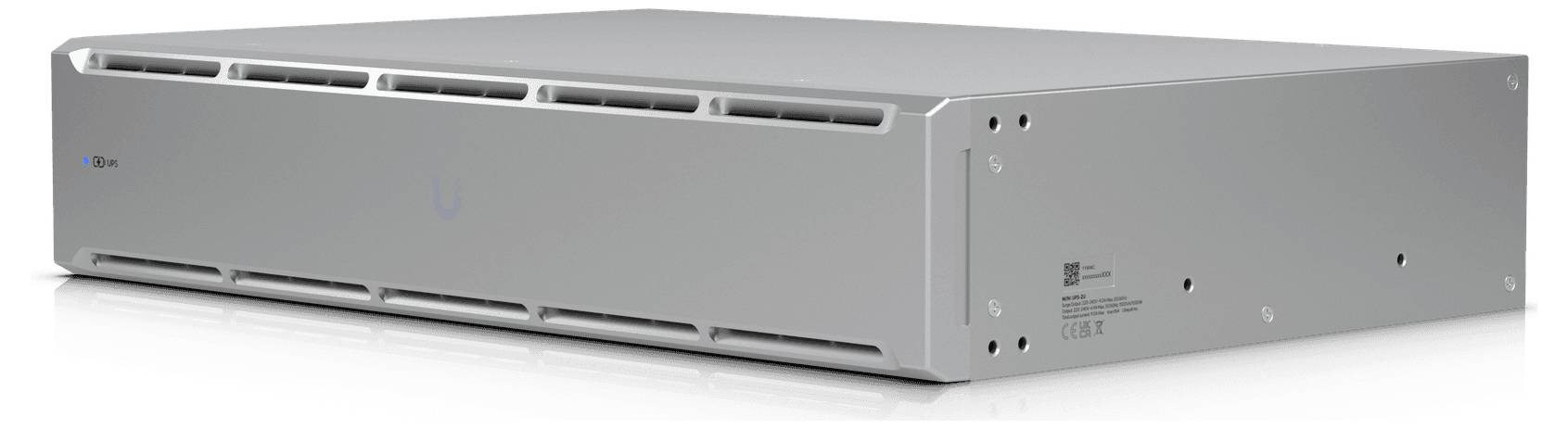

A sleek, rectangular silver network server with ventilation slots on its sides placed on a plain white background.

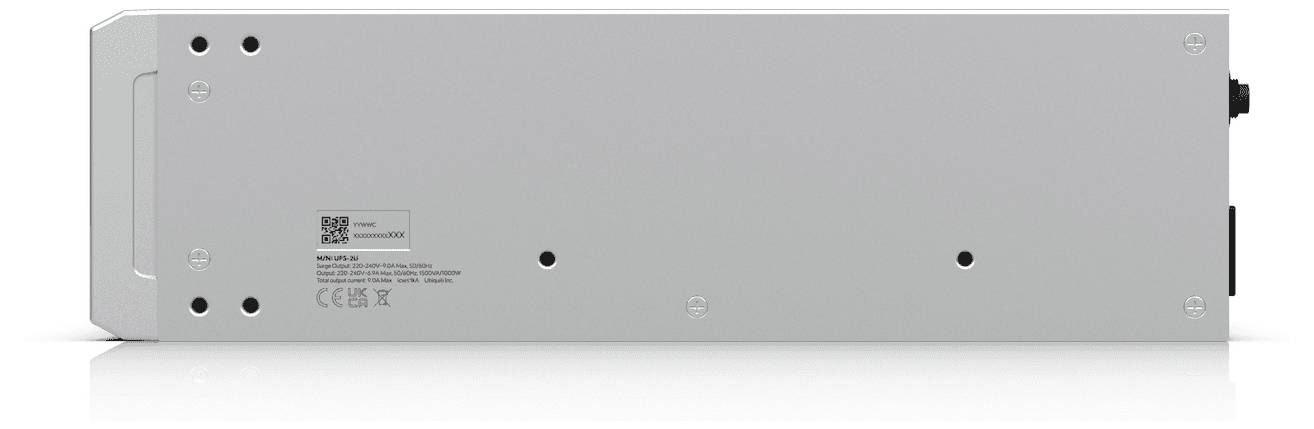

Back view of a rectangular, light grey electronic device with multiple screw holes and labels. No visible connectors or cables.

A silver rectangular electronic device with dimensions labeled: 442.4 mm width, 300 mm depth, 87.4 mm height.

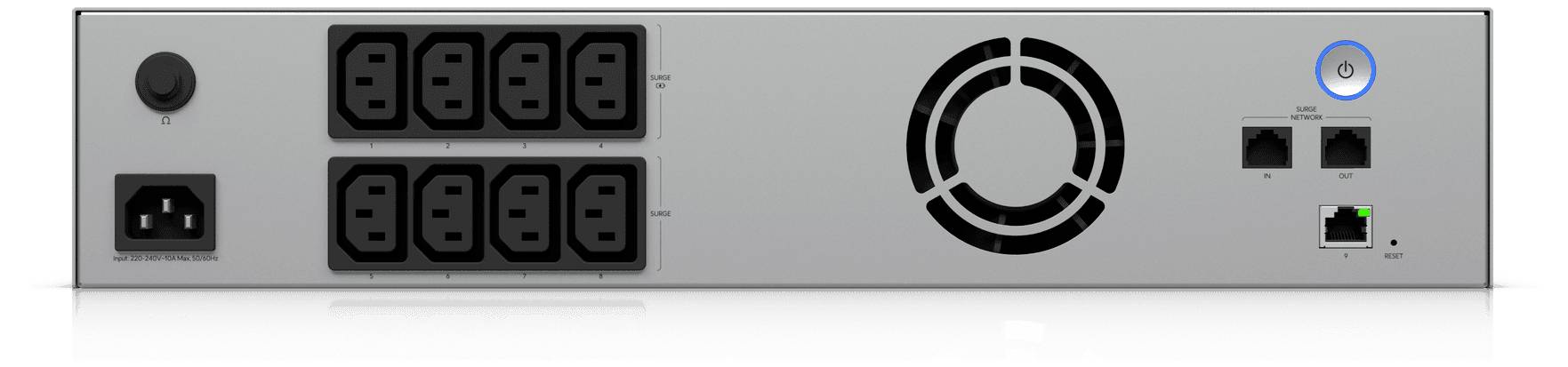

A rack-mount power distribution unit with multiple C13 outlets, an input power connector, ethernet ports, and a fan for cooling.

1/6

Fast track dispatch on Fri, 11 Sep

49 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 318.49 / piece)

€ 318.49

plus VAT.

Report legal concerns

Ubiquiti Unifi UPS 2U • 1,500VA/1000W • Line interface • 2x GbE • UPS-2U

Highlights & Details

Line interactive
1.5 kVA 1000 W
Waveform: Sinusoidal
8 AC outputs
Lead acid 12 V 9 Ah
Rackmount gray

Technical specifications

Transfer time (line mode in battery mode): 10 ms
Overload (5 minutes): 110%
Number of AC outputs: 8 AC outputs
Battery technology: Lead acid
Form factor: Rackmount
Rack capacity 2U
Typical backup time at full load - 2.3 min.
Typical backup time at half load - 8 min.

Factory colour: Grey

Depth: 300 mm

Height: 87.4 mm

Width: 442.4 mm

: IP20

Material (details): Steel

Battery capacity: 9 Ah

Battery voltage: 12 V

10/100/1000 Mbps ports: 3 x

: 1000 W

Weight: 13.7 kg

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Battery recharge time: 8 h

Output power capacity: 1.5 kVA

Typical backup time at half load: 8 min

Typical backup time at full load: 2.3 min

Rack mount kit: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 95 %

Storage temperature (T-T): -20 - 50 °C

Surge protection: yes

Number of batteries included: 2 Stück(e)

Input operation voltage (max): 280 V

Input operation voltage (min): 170 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738700 Ubiquiti Networks UniFi UPS 2U UPS

Description

Unifi-managed 8 socket, 1.5 kVA rack-mount power supply with onsite replaceable battery, 216 Wh, 8 minute half-load (500 W) run time, ready for Unifi Alarm Manager, and third-party SLOT support.

This text is machine translated.
