Name: Ubiquiti Networks USW-PRO-MAX-16 USW-PRO-MAX-16 Network switch 18 ports 40 GBit/s
Brand: Ubiquiti Networks
SKU: 3475797

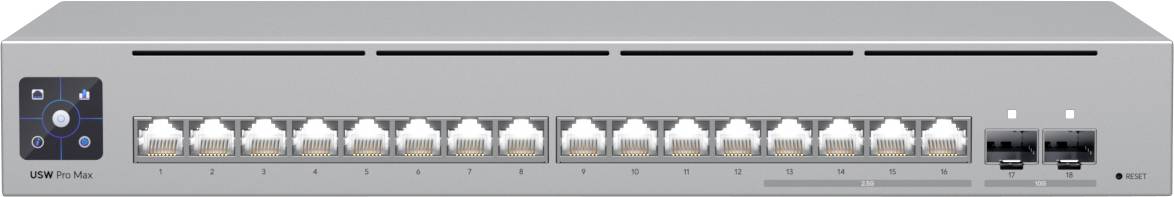

A network switch featuring 16 Ethernet ports and 2 fiber optic ports, designed for high-performance connectivity and network management.

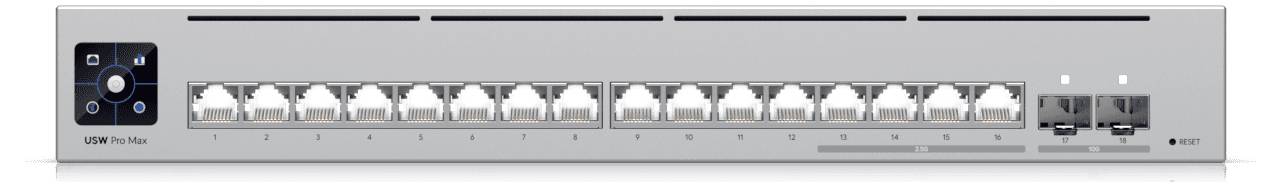

A network switch with multiple Ethernet ports and fiber optic connections, suitable for expanding connectivity in a network setup.

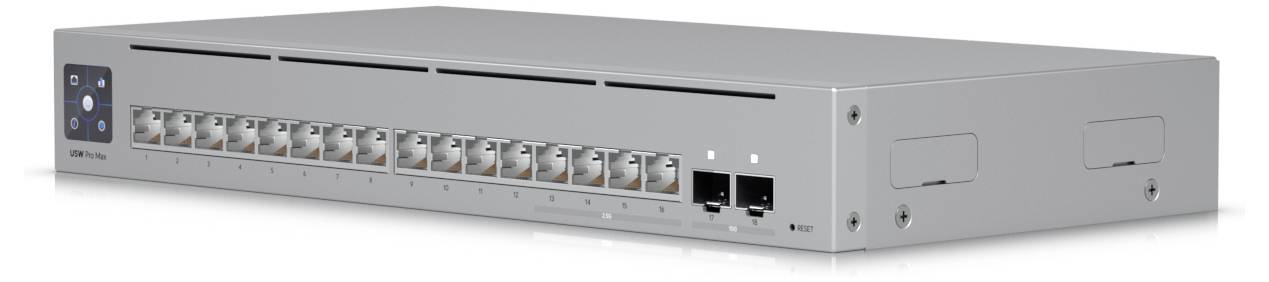

Silver network switch with 12 Ethernet ports, two uplink ports, and LED indicators on the side, designed for data connectivity.

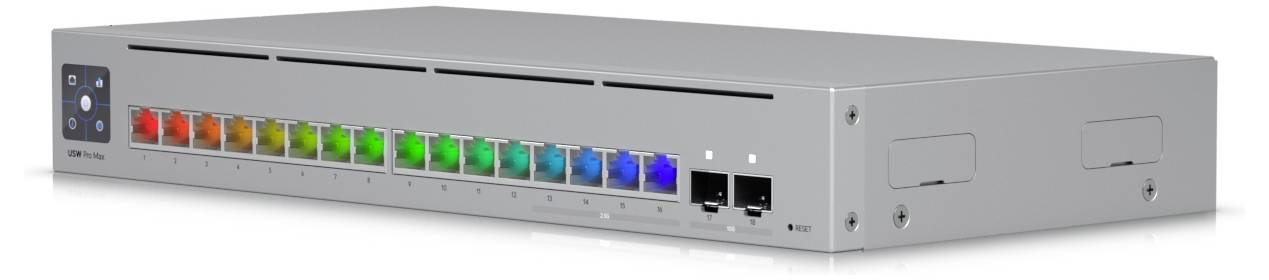

A network switch with multiple colored ports and two Ethernet ports, used for connecting devices in a local area network (LAN).

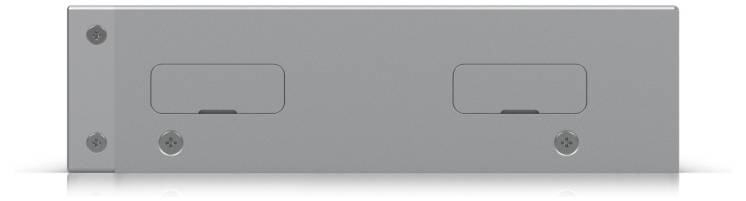

A gray rectangular electronic device with two small, rectangular indents or slots and four circular screw-like fasteners.

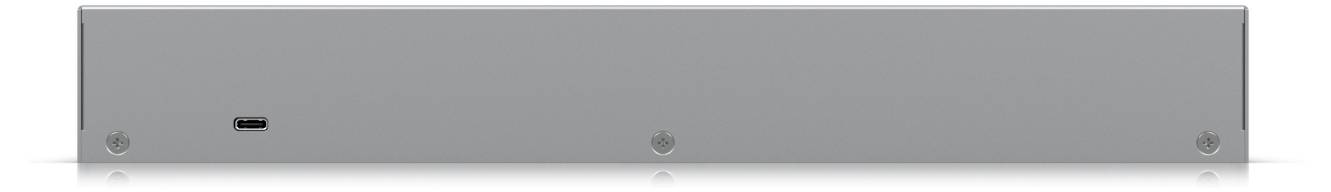

A gray rectangular electronic device viewed from the front, featuring a single small port on the left side.

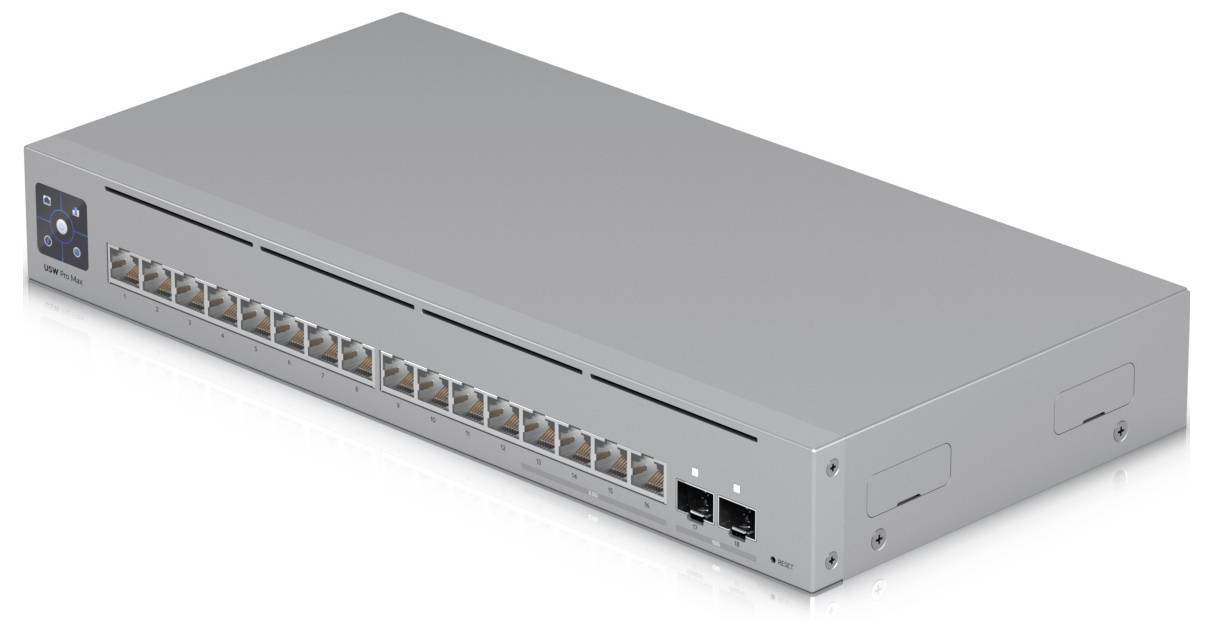

A network switch with multiple Ethernet ports, a sleek gray metal design, and a small power indicator light on the front panel.

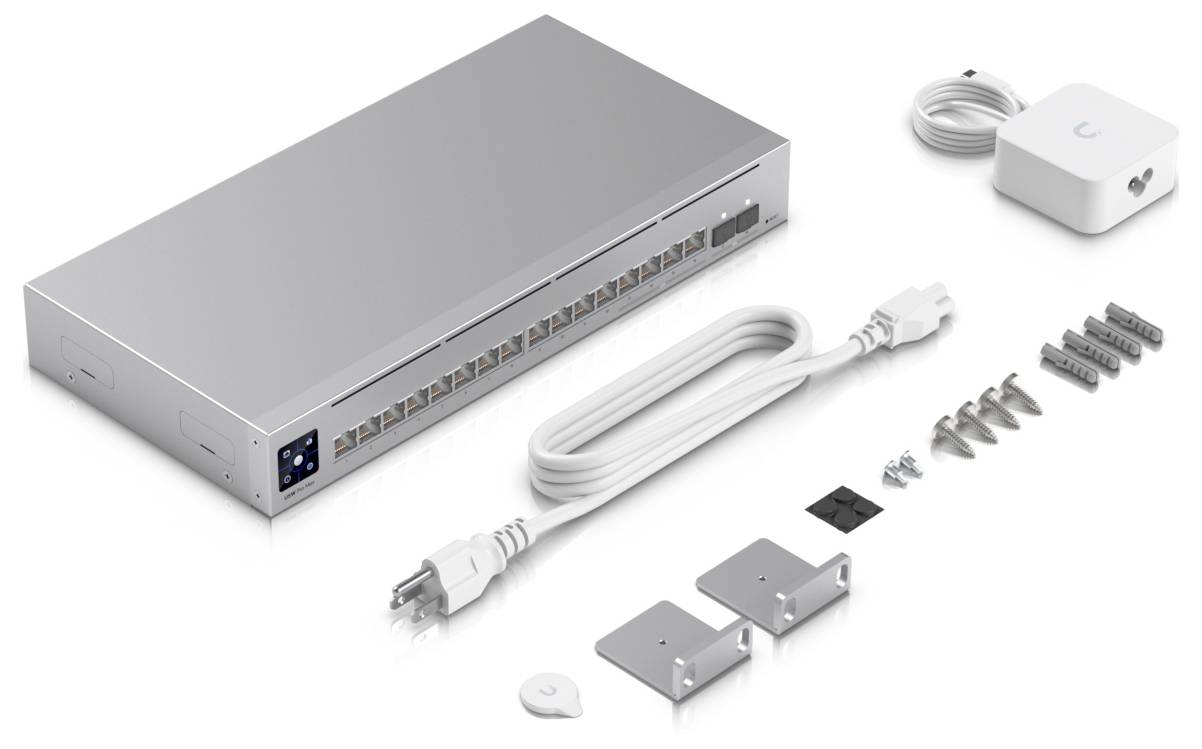

Networking device set including a silver switch with multiple ports, power cable, mounting brackets, and screws, displayed on a white surface.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U gray

L3
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 16
10G support
MAC address table: 16000 entries Routing/switching capacity: 84 Gb/s.
Access control list
1U Rack-mounting Stackable
Power supply included
This text is machine translated.

Technical specifications

Form factor: 1U

Product type: Network switch

Transfer rate: 40 GBit/s

Ethernet ports: 18

No. of 100 Mbps/1Gbps/10Gbps ports: 2 x

10/100/1000 Mbps ports: 16 x

Port type: 12 x 10/100/1000 + 4 x 2.5GBase-T + 2 x 10 Gigabit Ethernet

Power supply (LOV): mains-powered

Weight: 1.95 kg

Width: 325.1 mm

Height: 43.7 mm

Depth: 160 mm

Type: USW-PRO-MAX-16

Interfaces: Gigabit LAN (10 Gbps)
Gigabit LAN (1 Gbps)
SFP+

Factory colour: Grey

Current consumption: 25 W

Port: 18 ports

Length: 150 cm

Material (details): SGCC

Input voltage: 4.8 - 5.2 V

UKCA: yes

Fanless: yes

Operating temperature (T-T): -5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Packet buffer memory: 1.5 MB

Switching capacity: 84 Gbit/s

Heat dissipation: 85.3 BTU/h

Rack mount kit: yes

Loop protection: yes

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Broadcast storm control: yes

Static route: yes

Throughput: 42 Gbit/s

Access Control List (ACL): yes

Rate limiting: yes

Gigabit Ethernet (copper) ports quantity: 12

Reset button: yes

IPv4 routes: 512

2.5G Ethernet (copper) ports quantity: 4

Rack mounting: yes

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Number of VLANs: 1000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Forwarding rate: 62 Mpps

Power consumption (max): 25 W

Power supply included: yes
